Product Details
- For 3/8" or 1/2" (10 or 12 mm) Glass
- Allows for 180º Door Swing
- Left and Right Handed
- Also Works with CRL 3/4" (19 mm) Offset Arm Bottom Door Rails with No Alterations

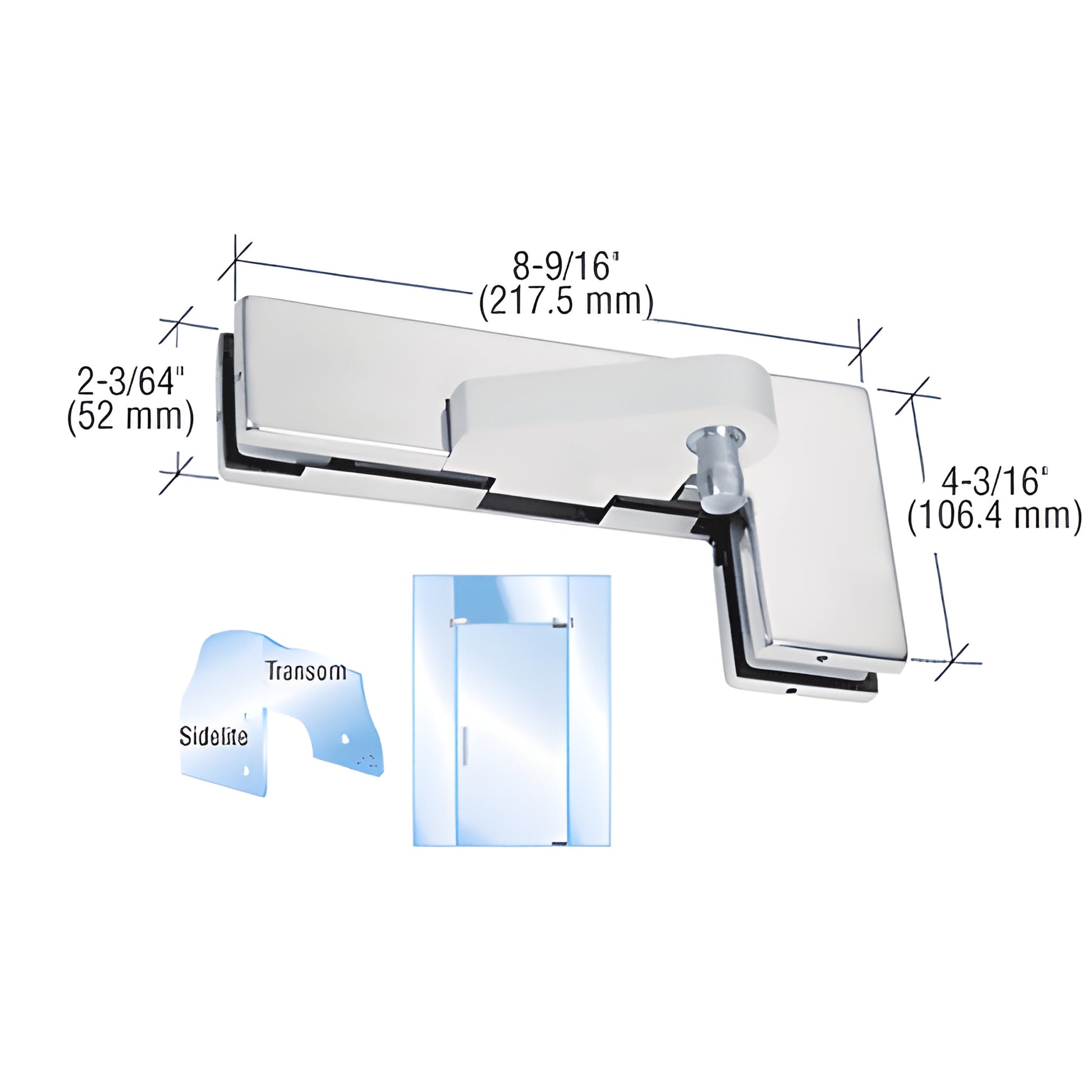

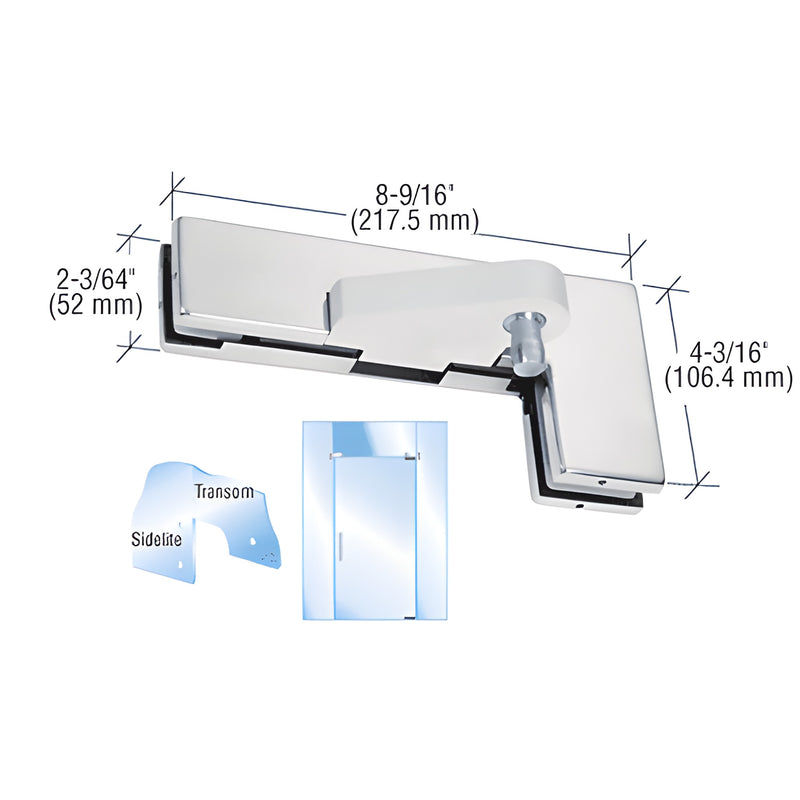

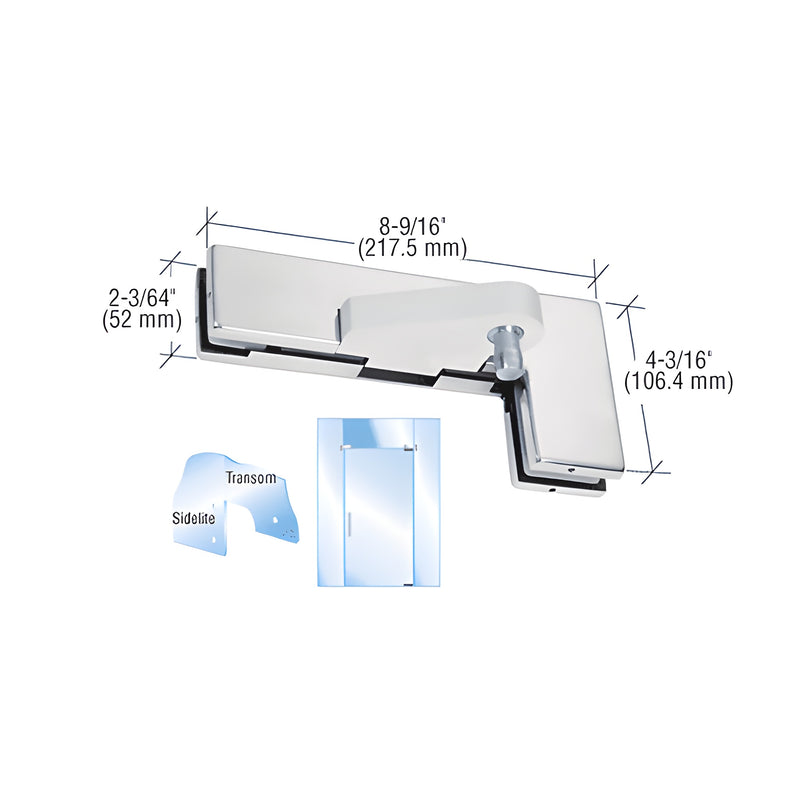

The CRL Sidelite Mounted Transom Offset Patch Fitting is specifically designed to work with offset arm bottom door rails, with no alterations required. It will also work with other offset patch fittings. Allowing for a full 180º door swing, these fittings are available for right or left hand configurations, in your choice of brushed or polished stainless steel.
INCLUDES:
- High Density Cast Body
- Cover Plates (Finish of Your Choice)
- Gasket for 3/8" or 1/2" (10 or 12.7 mm) Glass
- Template and Instructions
SPECIFICATIONS:
For Use With:
- 0PF20R and 0PF20L
- Top Door Patches
Glass Fabrication Required:
Three 3/4" (19 mm) Diameter
Holes and Corner Notch
Comes With: Template and Instructions
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
