CRL Brushed Stainless Manhattan Series Post Mounted Hand Rail Bracket
Item # HR2SPBS
$97.44
CAD
Finish (6)
-
Brushed Stainless Steel -
Black Bronze Anodized -
Mill -
Polished Brass -
Polished Stainless Steel -
Satin Anodized
Overview
| SKU | HR2SPBS |
|---|---|
| Sold As | 1 Each |
| Centerline Width Projection | 2-7/8 in. (73 mm) |
| Finish/Color | Brushed Stainless Steel |
| Material | Stainless Steel |
Description

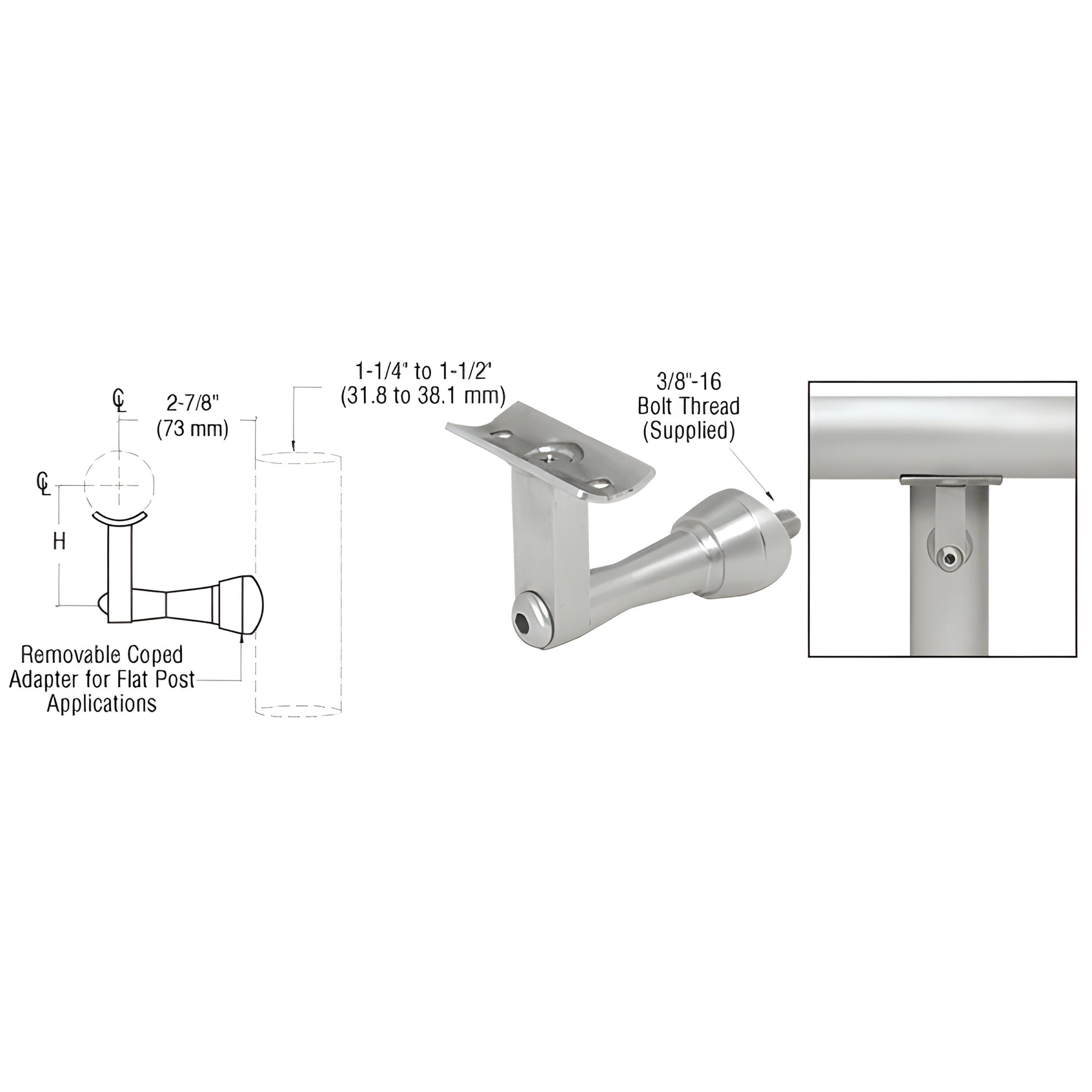

- Ready-to-Mount to Either 1-1/4" or 1-1/2" (32 or 38 mm) Schedule 40 Vertical Posts
- Available in Several Architectural Finishes
- For 1-1/2", 1.9" or 2" (38, 48 or 51 mm) Diameter Hand Rail Tubing
This CRL Manhattan Series Post Mounted Hand Rail Bracket is available in several architectural finishes for 1-1/2", 1.9" or 2" (38, 48.3 or 50.8 mm) diameter hand railing tubing. Bar angle and railing bracket angle adjust.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.Specifications
