CRL Brushed Stainless Patch Door Kit w/ Lock for Transom & Sidelites
CRL Brushed Stainless Patch Door Kit w/ Lock for Transom & Sidelites
Regular price
$739.58 CAD
Regular price
Sale price
$739.58 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PHA5LBS
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Sidelite-Single With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4
Overview
- 'All-Glass' look for seamless frameless doors
- Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
- Available with or without locks (lock option includes AMR205 patch lock)
CRL PHA5 North American Door Kits (SKU: PHA5LBS) provide a complete hardware solution for a free-swinging pivot door with fixed transom and two sidelites (glass and additional supports for transom/sidelites not included). Pivot setback: 2-3/4" (70 mm). Compatible with a separately ordered floor closer with tapered spindle. These North American pivot door kits are ideal for commercial and architectural tempered glass installs requiring an 'all-glass' appearance.

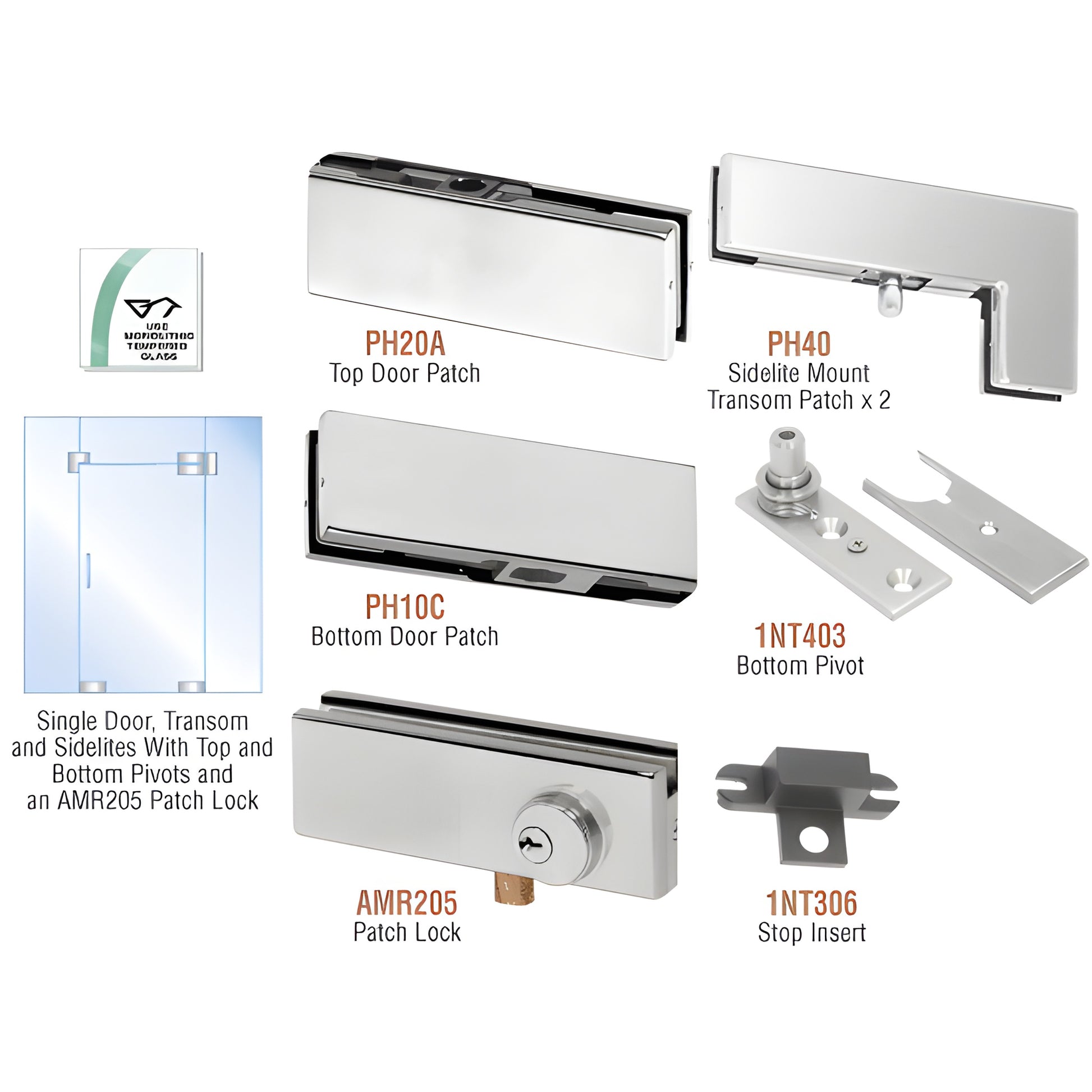

Kit Contains:
- 2 × PH40 sidelite mount transom patches
- 1 × PH20A top door patch
- 1 × PH10C bottom door patch
- 1 × 1NT306 stop insert
- 1 × 1NT403 bottom pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass requires holes and notches)
Kits with lock also include one AMR205 patch lock; cylinders, thumbturns, and keepers are ordered separately. For maximum door sizes, CRL follows GANA Guidelines.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not stain-proof. Periodic maintenance is recommended to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order or get help: Contact CRL Customer Service to confirm compatibility, request exact shipping weight, or place an order for SKU PHA5LBS.
