CRL Satin Anodized Patch Door Kit with Lock for Transom & Sidelites

CRL Satin Anodized Patch Door Kit with Lock for Transom & Sidelites

$731.02 CAD
$731.02 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PHA5LA
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
Sidelite-Single With Transom-Sidelite
Door Type
F Style Glass Door
Finish/Color
Satin Anodized
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4

Overview

  • “All-Glass” look for a seamless modern storefront
  • Fits 3/8" or 1/2" (10 or 12 mm) tempered glass
  • Available with or without locks (SKU PHA5LA)

CRL PHA5 North American Door Kits include complete hardware to install a free-swinging glass door with fixed transom and two sidelites (glass and any extra supports for the fixed transom and sidelites not included). Pivot setback: 2-3/4" (70 mm). Compatible with a floor closer using a tapered spindle (ordered separately). These glass door hardware kits are ideal for commercial storefronts, interior glass partitions, and high-end architectural projects seeking a true all-glass aesthetic.

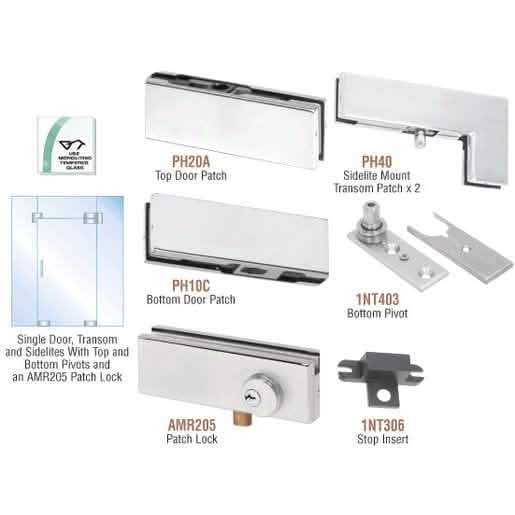

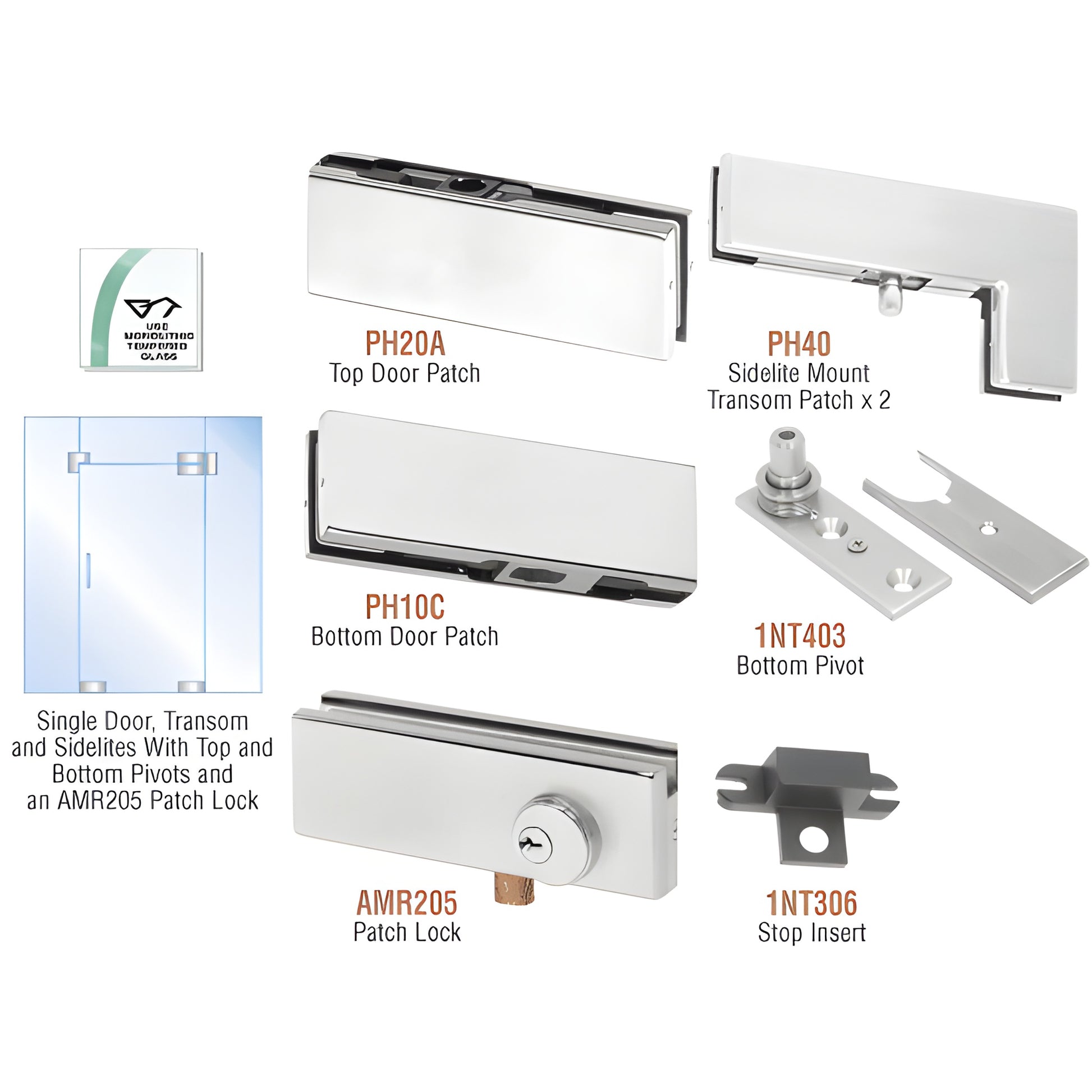

Kit Contains:
  • 2 - PH40 Sidelite Mount Transom Patches
  • 1 - PH20A Top Door Patch
  • 1 - PH10C Bottom Door Patch
  • 1 - 1NT306 Stop Insert
  • 1 - 1NT403 Bottom Pivot
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (holes and notches required in the glass)

Kits with locks include one AMR205 Patch Lock. Cylinders, thumbturns, and keepers are ordered separately.

Note: For maximum door sizes when using this product, CRL follows GANA Guidelines to ensure compliance and performance for frameless glass doors.

Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs before completing your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and monitor settings.

Order the PHA5LA glass door hardware kit today to achieve a premium all-glass look with durable pivot performance.
