CRL Brushed Stainless NA Patch Door Kit for Glass - No Lock
Item# PHA1BS
Shipping Weight: 3.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Configuration
Single
Door Type
A Style Glass Door
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Pivot Setback
2-3/4
- For 3/8" or 1/2" (10 or 12 mm) glass
- Available with or without locks (optional AMR205 patch lock)
- Use monolithic tempered glass (holes and notches required)
Complete hardware kit for a single free‑swinging patch door (glass not included). Pivot setback: 2-3/4" (70 mm). Compatible with floor closers using tapered spindles (floor closer sold separately). Designed for tempered monolithic glass—ideal as a patch door kit for tempered glass storefronts, office glass doors, and commercial glass partitions.

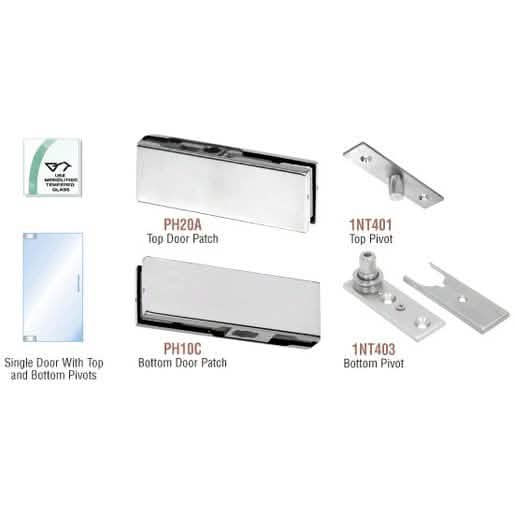

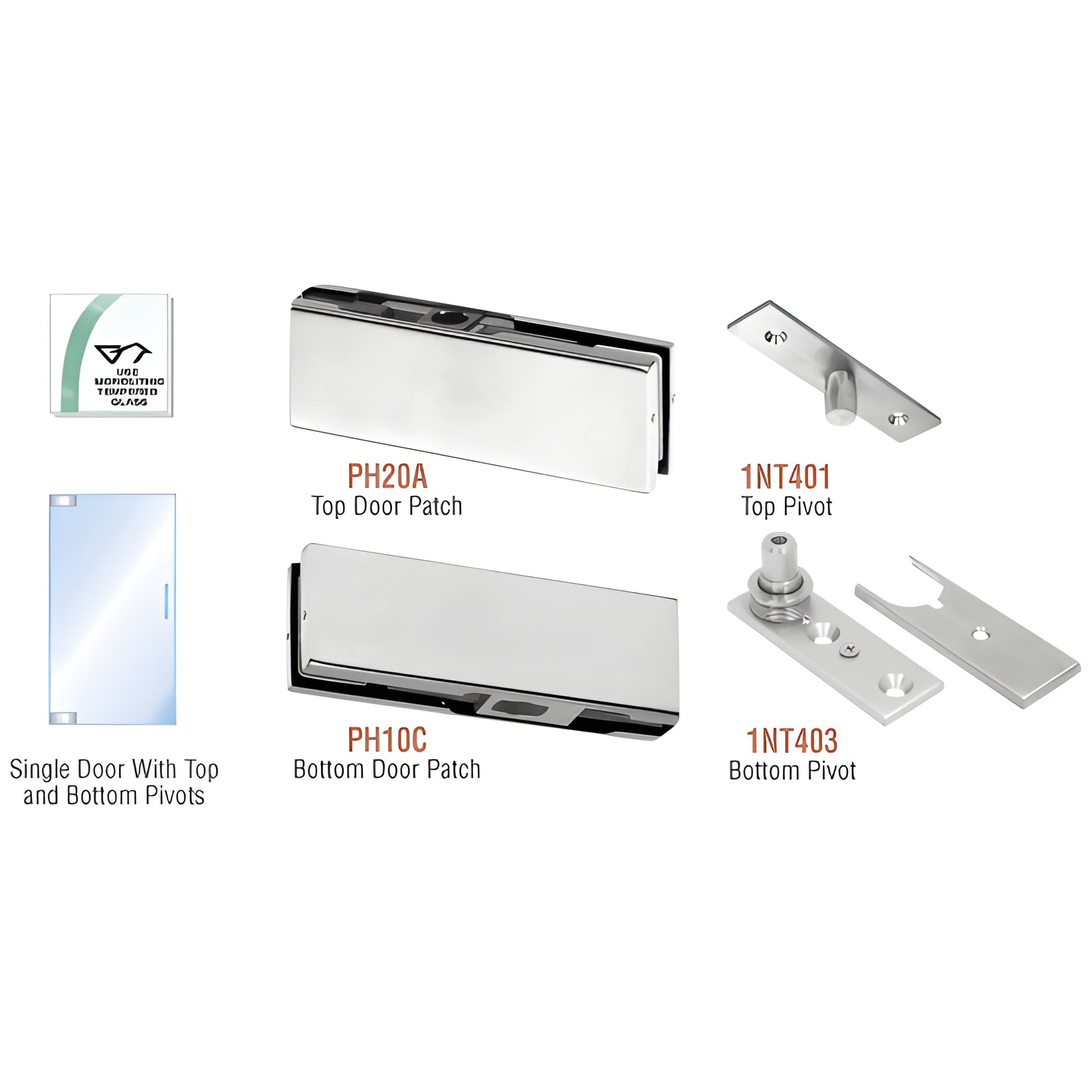

Kit contains:- 1 - PH20A Top Door Patch
- 1 - PH10C Bottom Door Patch
- 1 - 1NT401 Top Pivot
- 1 - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass
Kits with lock include one AMR205 patch lock; cylinders, thumbturns, and keepers ordered separately.
NOTE: Maximum door sizes follow GANA Guidelines.
Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service prior to ordering. Product images are representative; colors may vary by monitor.
Stainless Steel Advisory:
Stainless steel is corrosion‑resistant but not rust or stain proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Key differentiators: North American PHA1BS patch door kit, complete pivot hardware, supports 3/8" or 1/2" tempered monolithic glass, optional factory patch lock (AMR205).
Order the PHA1BS patch door kit today or contact CRL for a quote and installation guidance.
