CRL Satin Anodized North American Glass Patch Door Kit - No Lock

• Fits 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Available with or without locks; optional AMR205 patch lock included in locked kits (cylinders, thumbturns, and keepers sold separately)
• Designed for frameless glass doors—pivot patch hardware for single free-swinging doors

CRL PHA1 North American Patch Door Kits (SKU: PHA1A) include all patch and pivot hardware to complete a single free-swinging frameless glass door (glass not included). Pivot setback: 2-3/4" (70 mm). Compatible with floor closers using tapered spindles (ordered separately). Kits follow GANA Guidelines for maximum door sizes.

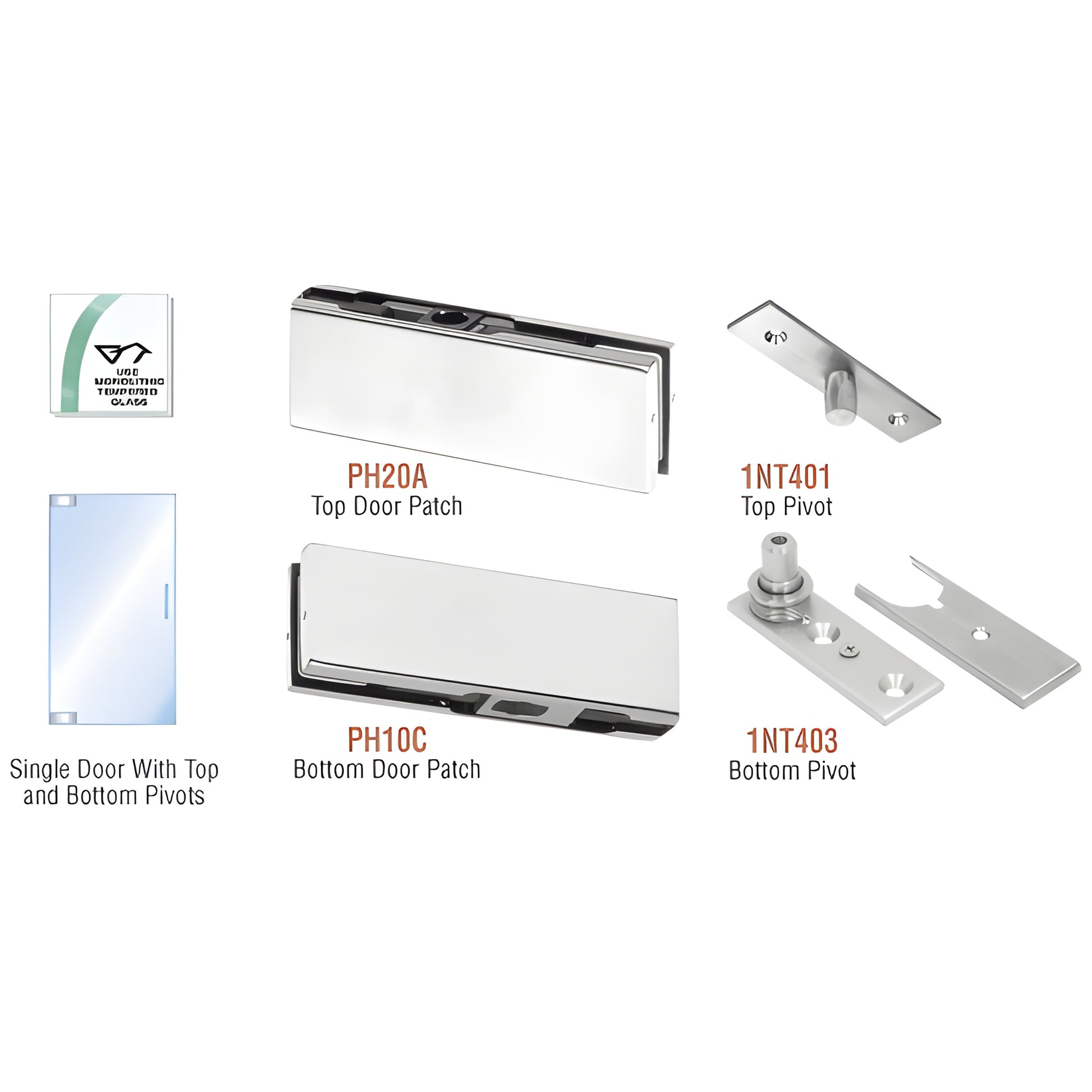

Kit Contains:

• 1 - PH20A Top Door Patch
• 1 - PH10C Bottom Door Patch
• 1 - 1NT401 Top Pivot
• 1 - 1NT403 Bottom Pivot
• Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass (glass must be prepared with required holes and notches)

Key Differentiators:

• Complete pivot patch hardware set for frameless glass doors—minimal additional parts required
• Options with or without integrated patch lock for flexible security solutions
• Prepared gasket set for both common glass thicknesses saves time on installation

Order the CRL PHA1A patch door kit today to complete your frameless tempered glass door installation.
