Exterior Glazed Service Window CRL Brushed SS with 12" Shelf Tray

• Standard Inset Frame with Stainless Steel Shelf and Built-In Non-Ricochet Bullet Resistant Deal Tray
• Drawings and Specifications are Available Online

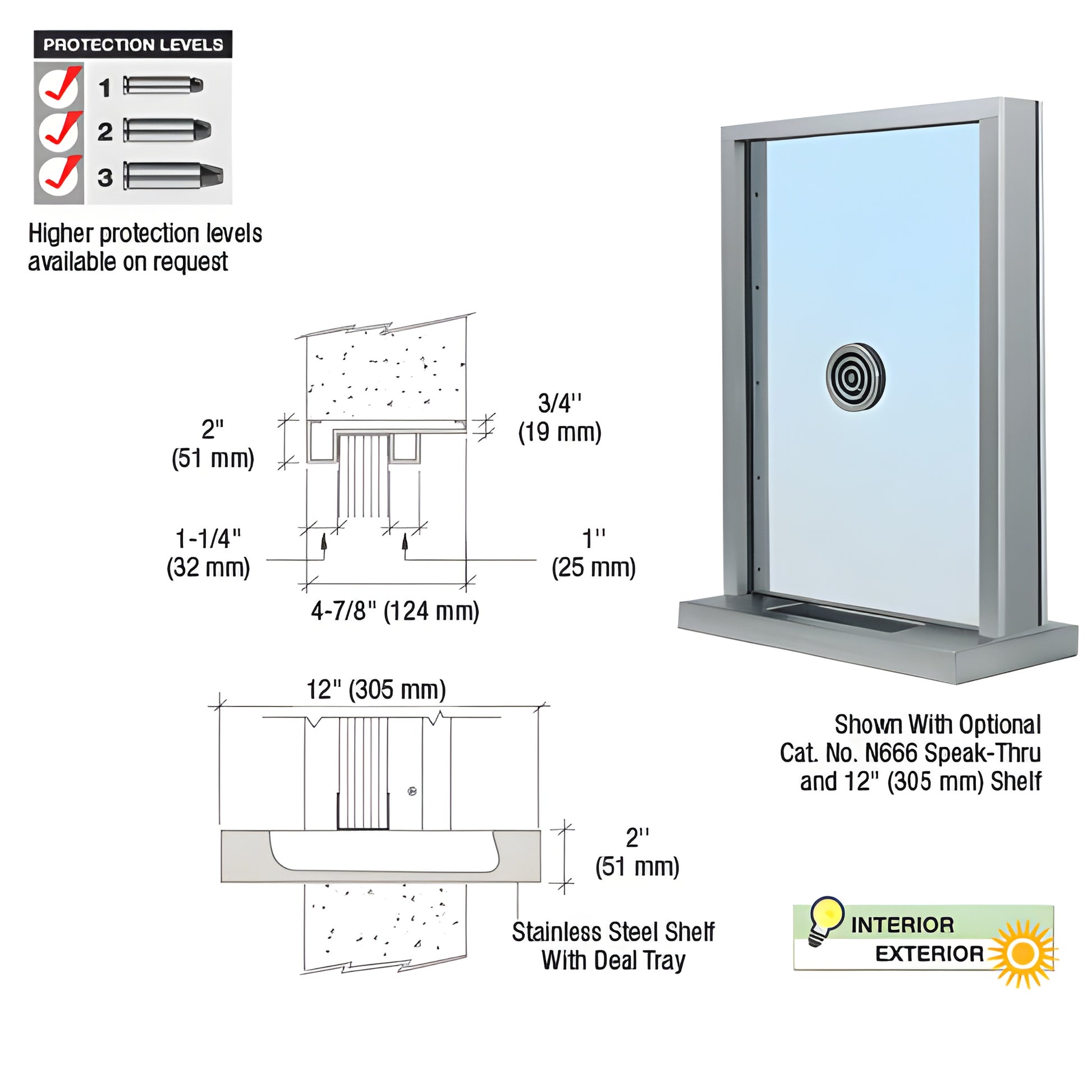

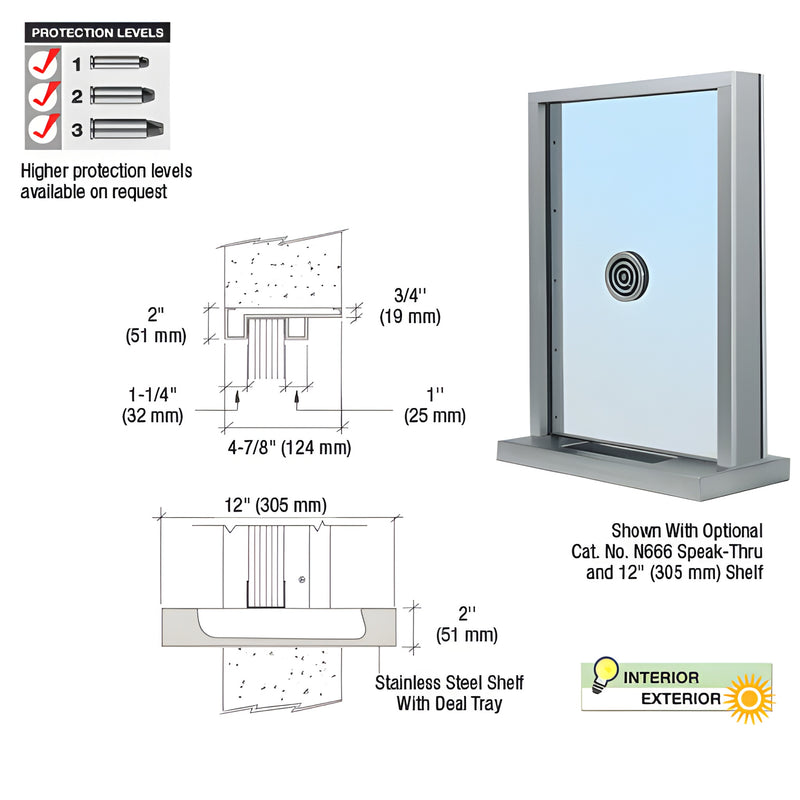

CRL Exterior Glazed Standard Inset Frame Windows (SKU: S1EW12S) feature a heavy-duty Type 304, 11 gauge stainless steel frame with an integrated stainless steel shelf and built-in non-ricochet bullet resistant deal tray—ideal for secure pass-through and transaction points. Designed for installation into walls 4-7/8" (124 mm) thick, the shelf is available in 12" (305 mm) or 18" (457 mm) depths; the 18" depth offers an extended writing surface on the customer side. Installer mounts the frame and shelf, then permanently seals the glazing with included glazing tape for a weather-tight exterior glazed inset frame solution.

Key differentiators: stainless steel construction, integrated bullet resistant deal tray, multiple certified glazing options, and exterior-ready design with recommended overhang for outdoor installations.

NOTE: An overhang is recommended for exterior applications. Customer specifies overall width and height when ordering.

To fabricate this window we require the overall width and height of the intended frame and your selections from the options below:

SPECIFICATIONS:
Materials: Frame - Type 304, 11 Gauge Stainless Steel; Glazing options include 1/4" (6 mm) Glass; 1-3/16" (30 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1-3/8" (35 mm) Level 2 Acrylic with Abrasion Resistant Coating; 1" (25 mm) Level 2 Lexgard®; 1-11/16" (43 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - Brushed Stainless Steel #4 Finish; Shelf - Brushed Stainless Steel #4 Finish.
Deal Tray: Level 1 or Level 3 protection. Weather flap and drain hole options available.

Speak-Thru Options: Bullet resistant and non-bullet resistant models available.

Shelf Options: Stainless steel shelf with deal tray and Formica shelf with deal tray.

For additional specifications, CAD drawings, and installation data, contact CRL Technical Sales Department or view online drawings and spec sheets.
