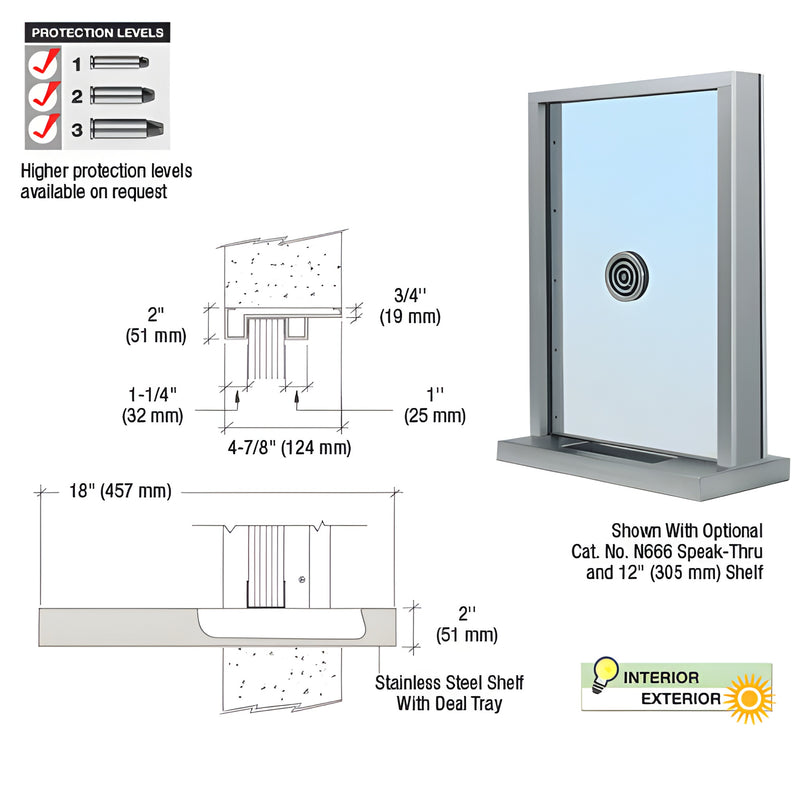

CRL Brushed Stainless Steel Pass-Through Window w/ 18" Shelf & Tray

• Standard Inset Frame with Stainless Steel Shelf and Built-In Non-Ricochet Bullet Resistant Deal Tray — SKU: S1EW18S
• Drawings and specifications available online

CRL Exterior Glazed Standard Inset Frame Windows feature a heavy-gauge stainless steel frame and an integrated stainless steel shelf with a bullet-resistant deal tray for passing currency, credit cards, tickets, and small articles. Designed for installation into walls 4-7/8" (124 mm) or thicker, the shelf is available in standard depths of 12" (305 mm) or 18" (457 mm); the 18" shelf provides an extended writing surface on the customer side. The installer mounts the frame and shelf, then permanently seals the glazing material with the supplied glazing tape for a secure exterior glazed inset frame installation.

Key differentiators: bullet resistant pass-through window options, non-ricochet deal tray, heavy-duty Type 304 stainless steel frame, 18" stainless steel shelf for customer writing surface, exterior-ready glazing and sealing.

NOTE: An overhang is recommended for exterior applications. Customer specifies overall width and height when ordering.

To fabricate this window we need the intended frame width and height and your selection from the options below:

SPECIFICATIONS:
Materials: Frame - Type 304, 11 Gauge Stainless Steel; Glazing options — 1/4" (6 mm) Glass; 1-3/16" (30 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1-3/8" (35 mm) Level 2 Acrylic with Abrasion Resistant Coating; 1" (25 mm) Level 2 Lexgard®; 1-11/16" (43 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame — Brushed Stainless Steel #4 Finish; Shelf — Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 protection. Weather flap and drain hole options available.

Speak-Thru Options: Bullet resistant and non-bullet resistant models available.

Shelf Options: Stainless steel shelf with deal tray or Formica shelf with deal tray.

For additional specifications, CAD drawings, and installation data, contact CRL Technical Sales Department or view online product drawings and spec sheets.
