CRL Brushed Stainless Steel Frame Interior Glazed Vision Window

• Standard Inset Frame Vision Window with Surround Sound System to Allow Natural Voice Transmission
• Surround Sound System Allows Natural Voice Transmission
• Drawings and Specifications are Available Online

CRL Standard Inset Frame Vision Windows

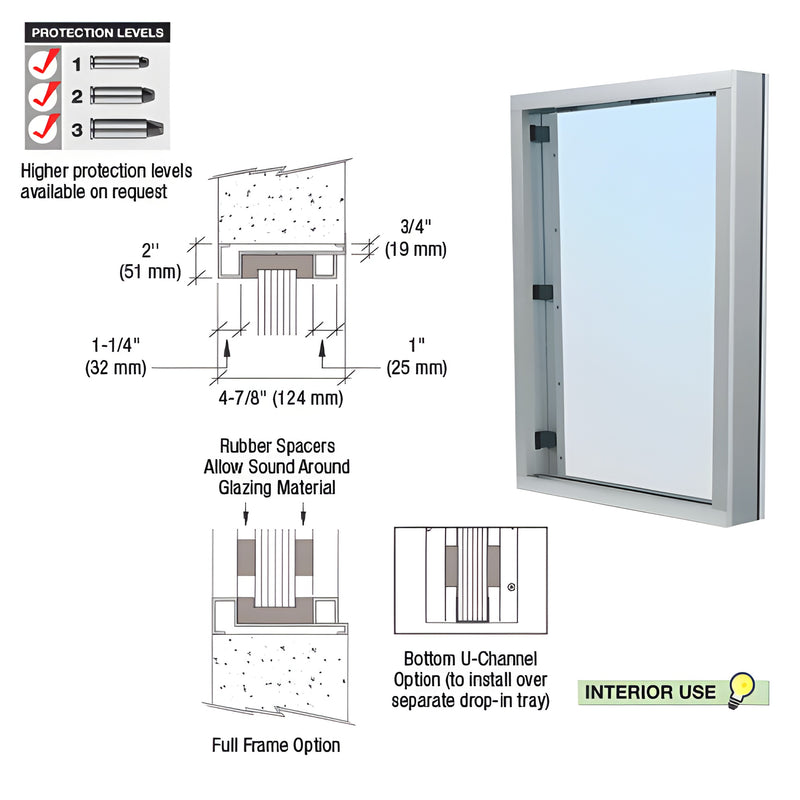

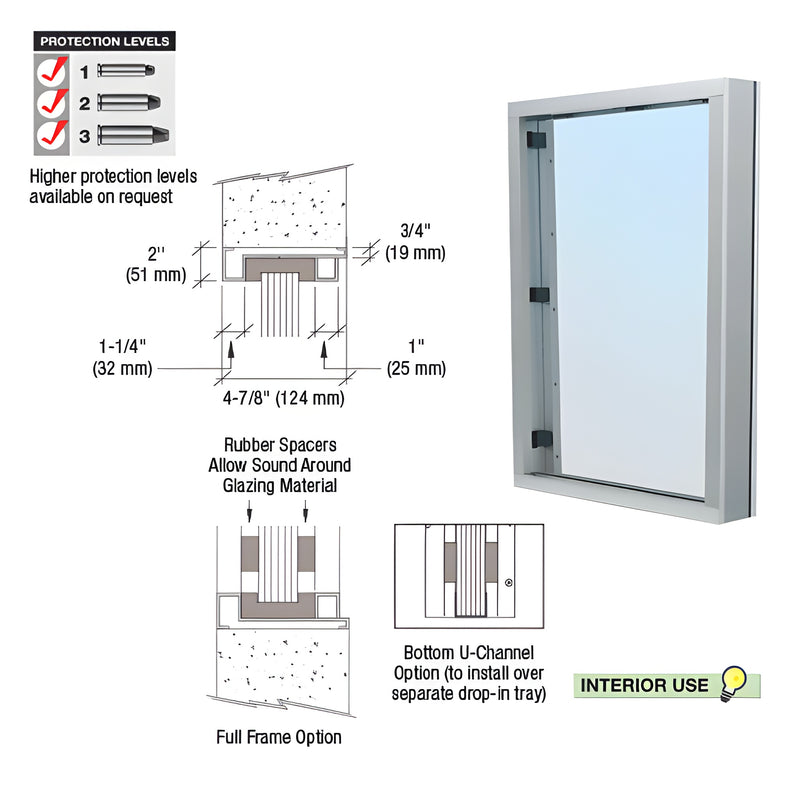

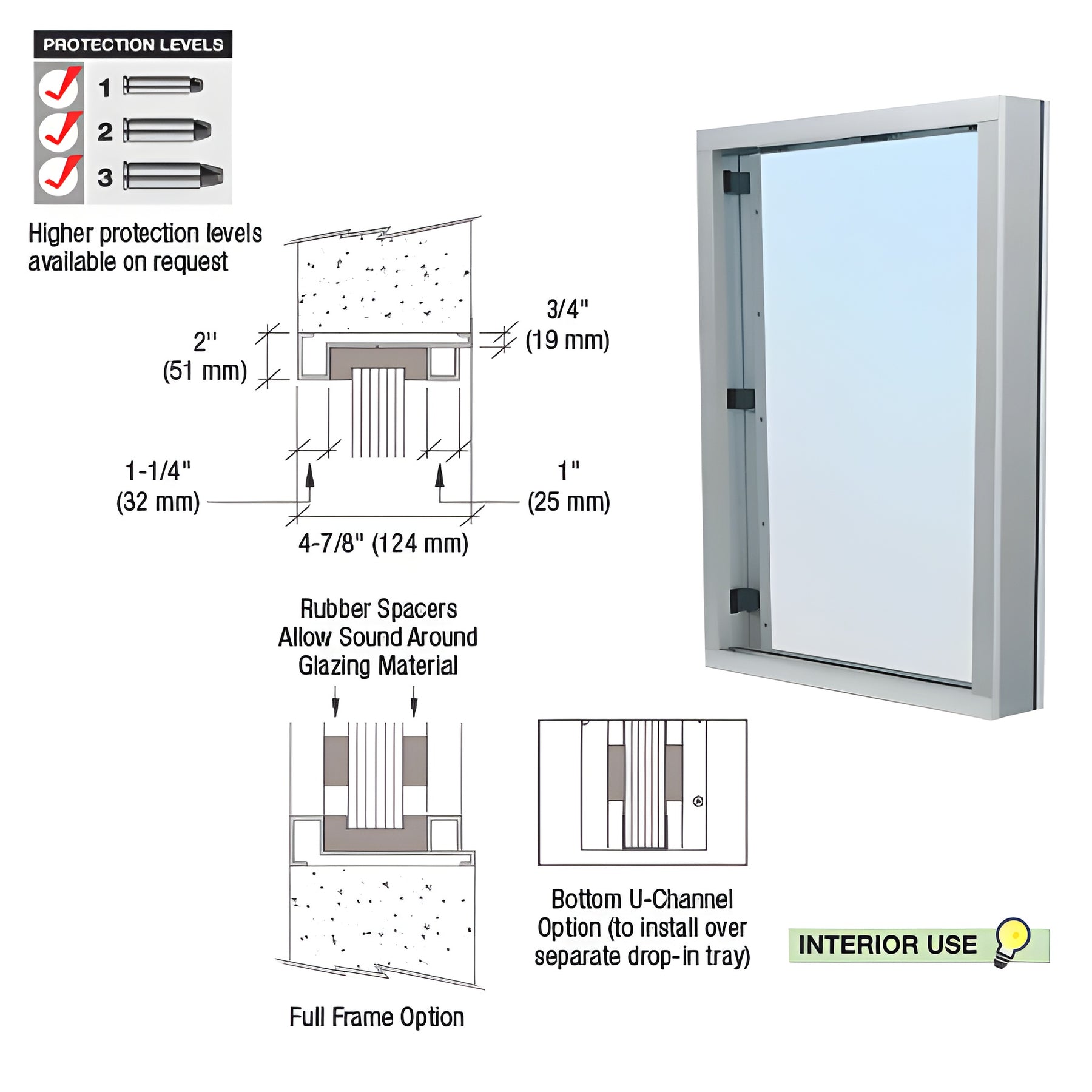

with Surround Sound allow natural voice transmission without an installed speak-thru device. Vision Windows are typically installed above built-in Exchange Drawers, or as sidelites in Multi-Lite Exchange Window units. Frame is designed for walls at least 4-7/8" (124 mm) thick. They are not weather tight, and are recommended for installation only in interior applications. The frame is uniform on four sides. Securing the frame to the wall requires the removal and installation of the glazing material and spacer blocks. Can be ordered with U-Channel only under the glazing to enable access to Drop-In Deal Trays.

Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.

Frame - 11 Gauge Brushed Stainless Steel #4 Finish Instructions Included

CRL recommends a maximum width of 36" (914 mm) when surround sound is used.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
