CRL Brushed Stainless Steel Hydraulic Door Patch Set, Hold-Open
CRL Brushed Stainless Steel Hydraulic Door Patch Set, Hold-Open
Regular price
$382.62 CAD
Regular price
Sale price
$382.62 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL380HBSSET
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Hold Open
Yes
Maximum Door Width
39 in. (991 mm)
Maximum Panel Weight
220 lbs. (99.8 kg)
Pivot Setback
2-9/16
Overview
- 2-9/16" (65 mm) pivot point — heavy-duty centre-hung pivot for glass doors
- Available finishes: Brushed Stainless, Polished Stainless, Matte Black
- Fits tempered glass thickness: 3/8" to 1/2" (10–12 mm)
- Flush mount design — no floor hole required for installation
- For interior use only

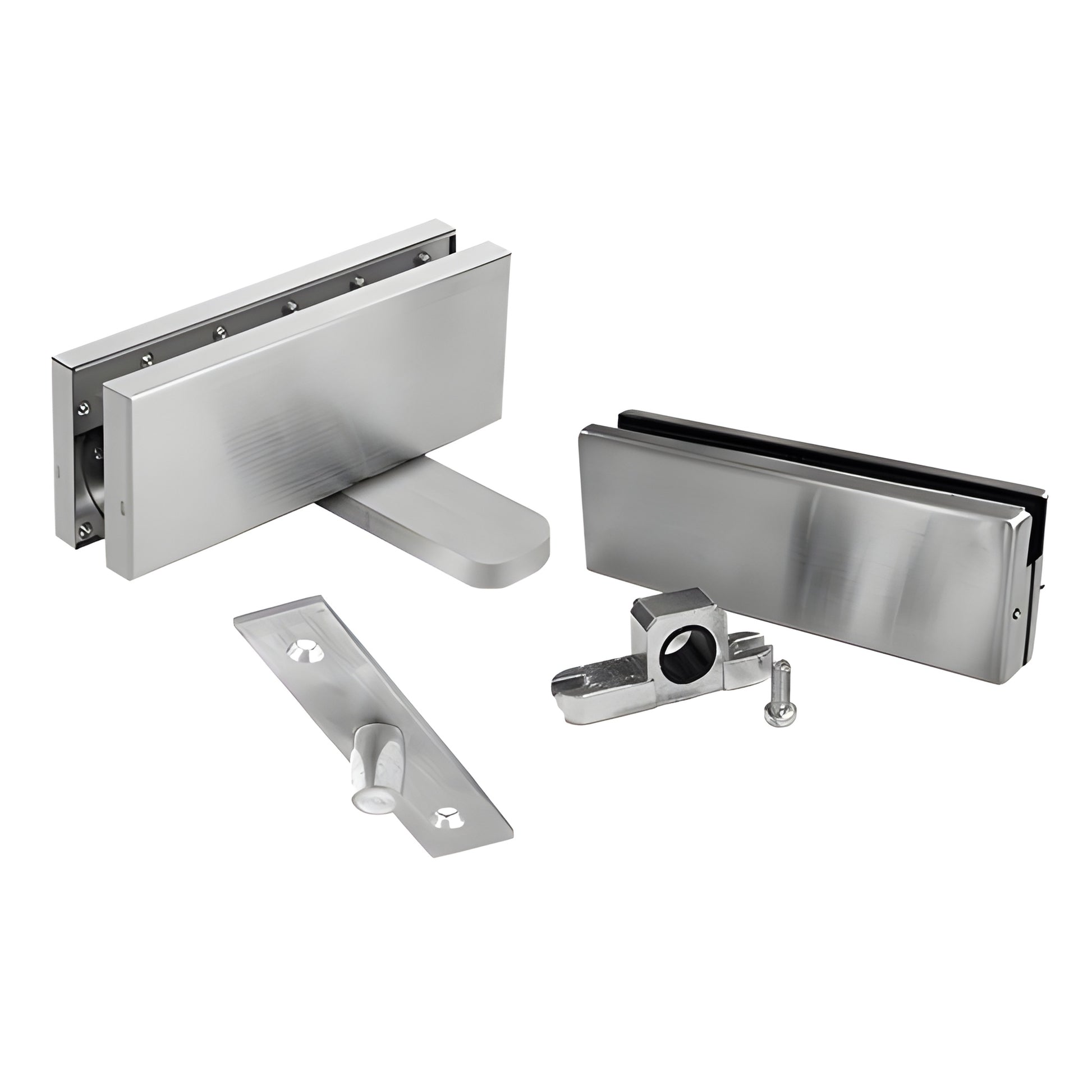

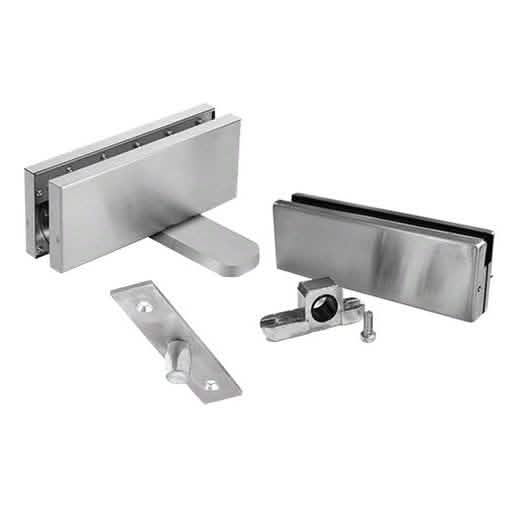

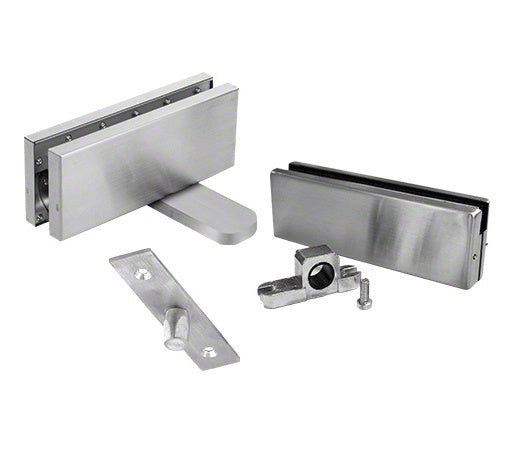

CRL Hydraulic Patch all-glass door set (SKU: CRL380HBSSET) includes hydraulic patch fitting with adjustable backcheck, top door patch fitting, and top centre-hung free-swing pivot — designed for smooth controlled closing on interior glass doors.
Product Warning:
Custom headers with 2-9/16" (65 mm) pivot points must be ordered if needed. These fittings are not compatible with the stock NH36xx and NH72xx headers.
Stainless Steel Advisory:
Stainless steel is corrosion-resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in the Technical References for details.
Order the CRL380HBSSET hydraulic patch door set for reliable, flush-mounted interior glass door installations — contact CRL or your distributor to purchase.
