CRL Polished Stainless Steel Hydraulic Patch Hold-Open Door Set
CRL Polished Stainless Steel Hydraulic Patch Hold-Open Door Set
Regular price
$384.06 CAD
Regular price
Sale price
$384.06 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL380HPSSET
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Hold Open
Yes
Maximum Door Width
39 in. (991 mm)
Maximum Panel Weight
220 lbs. (99.8 kg)
Pivot Setback
2-9/16
Overview
- 2-9/16" (65 mm) pivot point — designed for centre-hung free-swing glass doors
- Available finishes: Brushed Stainless, Polished Stainless, Matte Black
- Fits tempered glass thickness 3/8" to 1/2" (10 to 12 mm)
- Flush mount installation — no hole required in the floor
- For interior use only

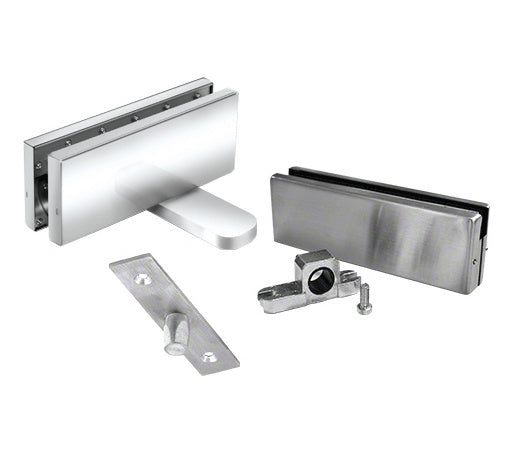

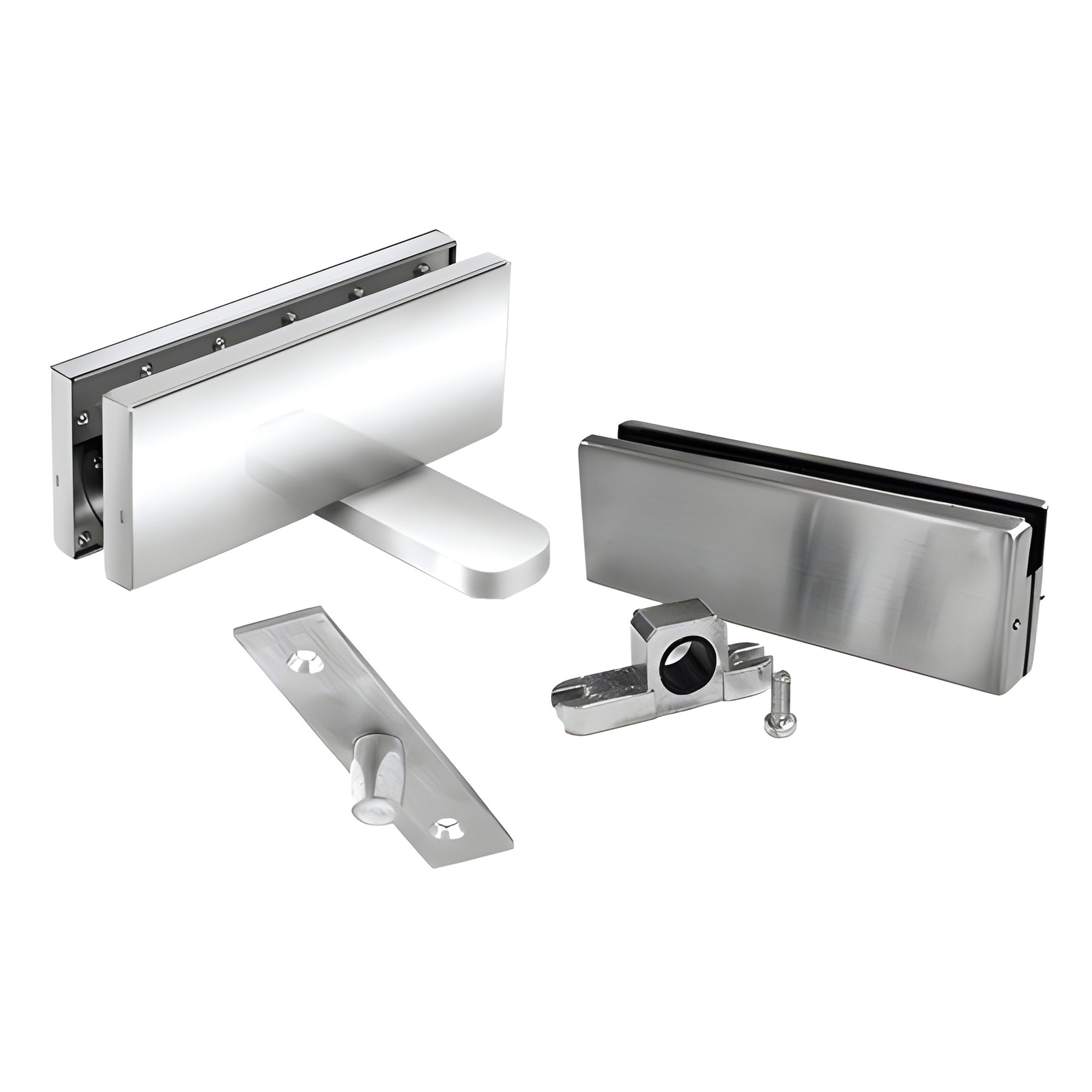

CRL Hydraulic Patch all-glass door set (SKU CRL380HPSSET) includes a hydraulic patch fitting with backcheck, top door patch fitting, and top centre-hung free swing pivot — a complete hydraulic patch door set for frameless glass doors and commercial interior glass installations.
Product Warning:
Custom headers with 2-9/16" (65 mm) pivot points must be ordered if needed. These fittings are not compatible with the stock NH36xx and NH72xx headers.
Stainless Steel Advisory:
Stainless steel resists corrosion but is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for care instructions.
Ideal for architects, contractors, and installers specifying a hydraulic patch door set for frameless interior glass doors. Order SKU CRL380HPSSET or contact CRL for custom header options and installation guidance.
Shop now — order CRL380HPSSET or contact CRL Customer Service for pricing and lead times.
