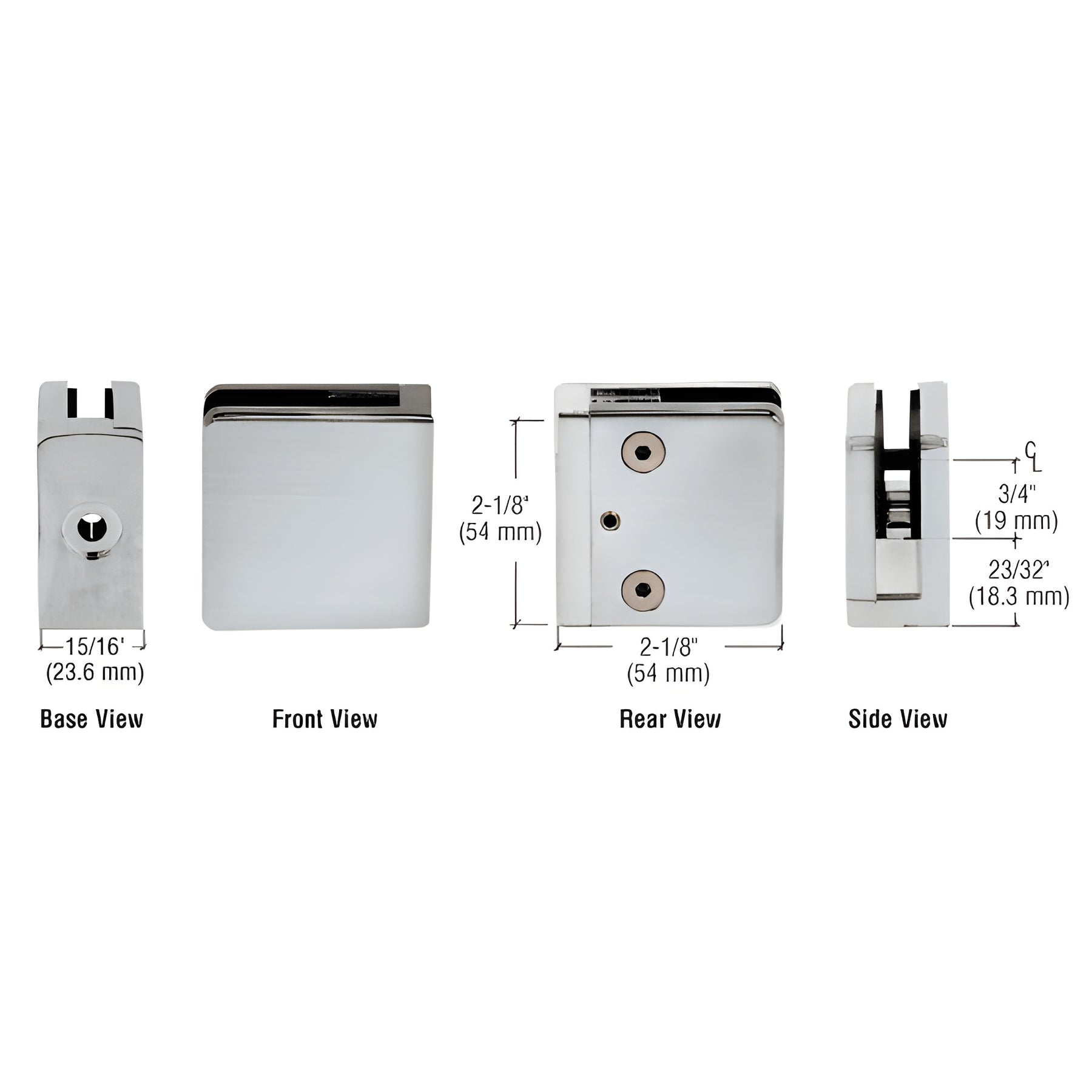

CRL Z-Series Brushed Stainless Steel Square Flat-Base Glass Clamp

• Fits 1/4" and 5/16" (6 and 8 mm) glass
• Replacement gaskets: CRL Cat. No. Z14SG
• Use on mezzanines, partitions, railings and windbreaks
• Designed for monolithic tempered glass
• Optional steel pin included for additional glass support
• Custom painted finishes available upon request

This CRL Z-Series Square Type Flat Base Glass Clamp (SKU: Z906BS) secures 1/4" to 5/16" (6–8 mm) glass and features a flat base for mounting to square tubing or other flat surfaces. The clamp includes rubber gaskets and an optional steel pin for extra support — ideal for partitions, railings, windbreaks and exterior railing projects where a low-profile, secure glass clamp is needed.

For securing the Z-clamp to thin-wall tubing (less than 1/8"), use CRL’s ZB0LT socket head cap bolt and ZRNUT rivet-nut. Drill a 17/32” (13.5 mm) hole, then install the rivet-nut using the 34604 heavy-duty thread insert tool with the 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required when using the included steel pin for additional glass support.

SPECIFICATIONS:
Glass Thicknesses: 1/4" and 5/16" (6 and 8 mm).
Base Design: Flat base for square tubing or other flat surfaces.
Material: Zinc or stainless steel options. Stainless steel or powder-painted zinc recommended for increased durability in exterior applications.
Glass Fabrication:

• For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) glass: 1/2" (12 mm) hole required if using steel pin (included).
• For 1/2" (12 mm) glass: 9/16" (14 mm) hole required if using steel pin (included).

Includes: Rubber gaskets and steel pin with grommet.
Replacement Hardware: CRL ZCS5X15SS replacement screws; replacement gaskets available as CRL Cat. No. Z14SG.

Product Warning:

For interior and exterior use, CRL recommends pinning each glass panel when the glass is not supported from the bottom edge to prevent slippage. Rubber g
