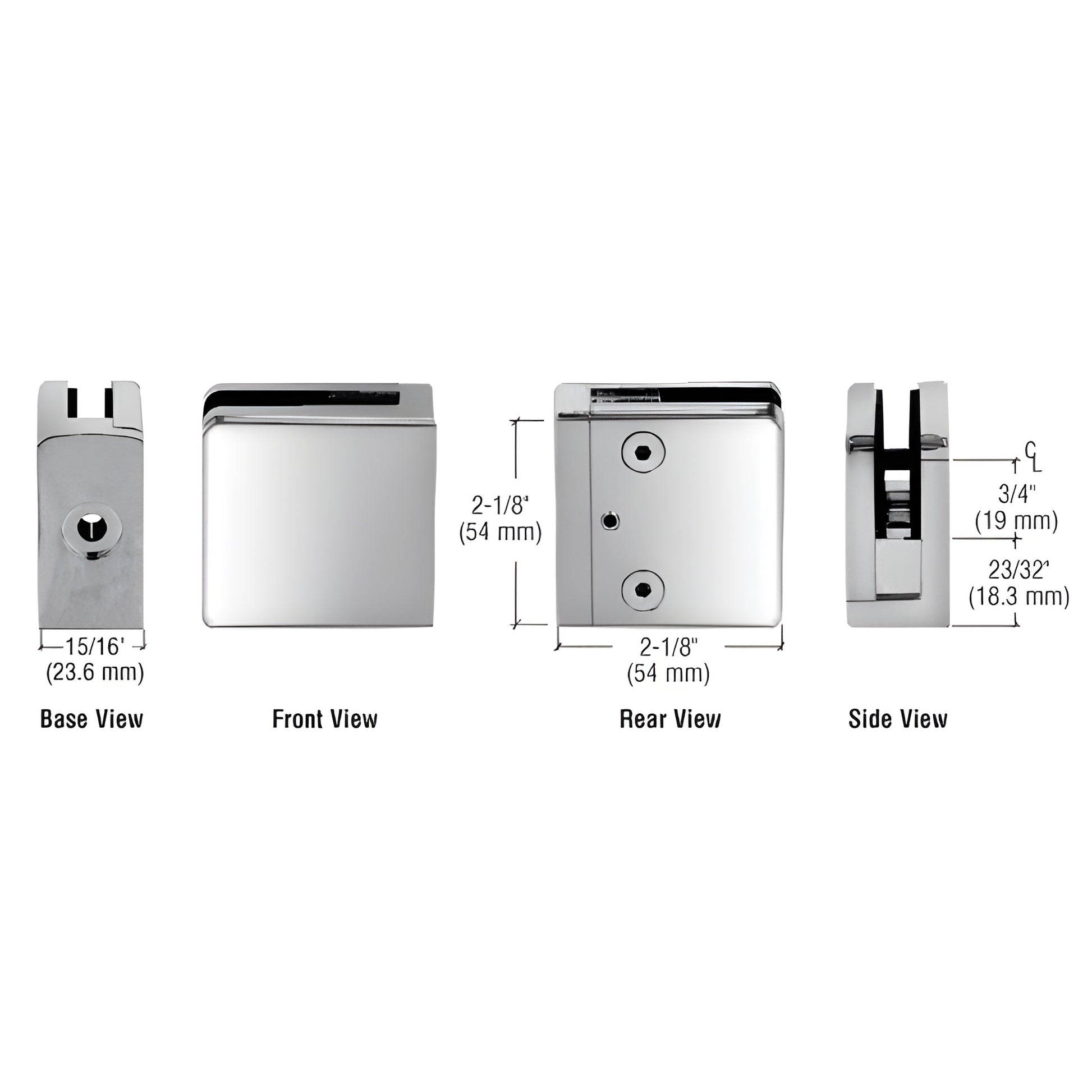

CRL Polished Stainless Steel Z-Series Square Type Flat Base Stainless Steel Clamp

• For 1/4" and 5/16" (6 and 8 mm) Glass
• Replacement Gaskets are Available by Ordering Cat. No. Z14SG
• For Use on Mezzanines, Partitions, Railings and Windbreaks
• Use Monolithic Tempered Glass
• Steel Pin Available for Additional Glass Support
• Custom Painted Finishes Available Upon Request
• For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using steel pin (included) for glass support.
• For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using steel pin (included) for glass support. Includes: Rubber Gaskets and Steel Pin (for optional use) with Grommet. Replacement Hardware : CRL ZCS5X15SS for Replacement Screws & Replacement gaskets are available by ordering CRL Cat. No. Z14SG. Product Warning: For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted. Stainless Steel Advisory: Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

This

CRL Z-Series Square Type Flat Base Glass Clamp

is designed to be used on glass thickness of 1/4" to 5/16" (6 to 8 mm). The flat base allows for installation onto Square Tubing or other flat surfaces. The Clamp includes an optional Steel Pin for additional weight support. These clamps are the perfect solution for partitions, railings, windbreaks and countless other projects.

For securing the Z-Clamp to thin wall tubing (less than 1/8”), use CRL’s

Socket Head Cap Bolt and

Rivet-Nut. For installation, drill a 17/32” (13.5 mm) hole, then install the Rivet-Nut using 34604 Heavy-Duty Thread Insert tool and 34618 5/16” Mandrel and Nosepiece.

1/2" (12 mm) hole is required if using the steel pin (included with the clamp) for additional glass support.

For 1/4" and 5/16" (6 and 8 mm).

Flat.

Square Tubing or Other Flat Surfaces.

Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Painted Zinc Clamps are recommended for more durability in exterior applications.

For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using steel pin (included) for glass support.

For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using steel pin (included) for glass support.

Rubber Gaskets and Steel Pin (for optional use) with Grommet.

CRL ZCS5X15SS for Replacement Screws & Replacement gaskets are available by ordering CRL Cat. No. Z14SG.

For interior and exterior applications CRL recommends pinning each glass panel as required when the glass is not supported from the bottom edge to prevent glass panel slippage. Rubber gaskets and steel pins are provided with each clamp.

Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
