- Kit for 1/2" (12 mm) Glass Doors
- Use Monolithic Tempered Glass
- Reduces Drafts and Protects the Edge of the Glass
- Works Only with CRL DRS Wedge-Lock® Door Rails for Both Single and Double Door Applications
- Five Cladded Architectural Finishes

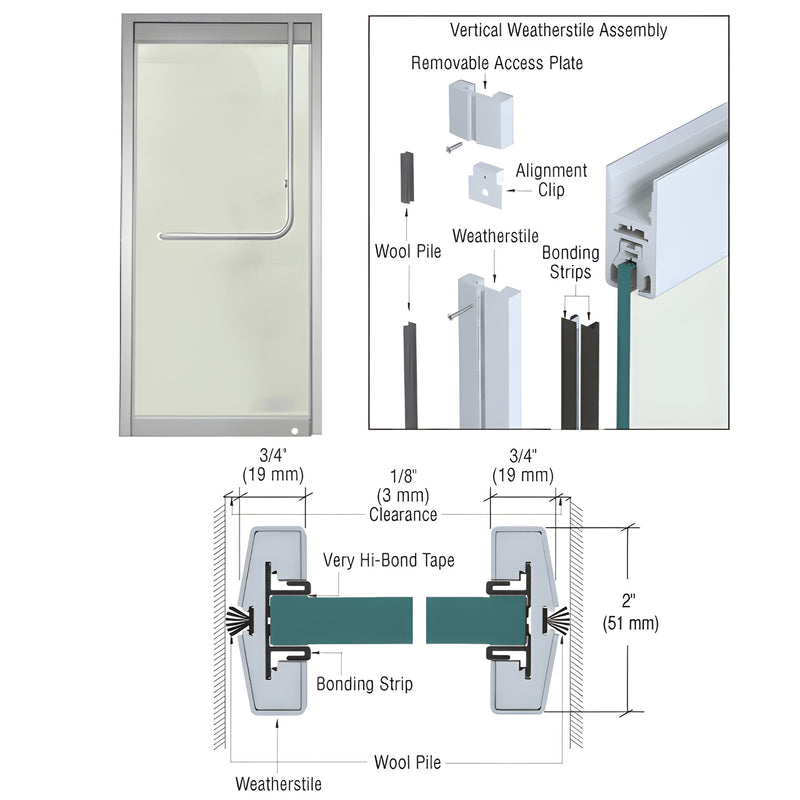

CRL Vertical Weatherstile Kits (SKU: W12BSS) include two 117" (2.97 m) lengths of Weatherstile with wool pile weatherstrip, one 120" (3.05 m) black EPDM filler strip (for double door applications), four 117" (2.97 m) bonding strips with Very Hi‑Bond tape, four 1‑1/2" (38 mm) tall weatherstripped removable access plates with alignment clips, and installation instructions. Custom lengths up to 117" (2.97 m) are available on special order.
CRL Vertical Weatherstile Kits are redesigned for newly fabricated single or double doors using 1/2" (12 mm) tempered glass (also compatible with 3/4" (19 mm) tempered glass where specified). These narrow vertical weatherstiles reduce drafts and protect glass edges while preserving the minimal "all‑glass" appearance. Five architectural cladded finishes match adjacent metal door frames for a cohesive commercial storefront look.
Installation uses internal bonding strips that attach to the glass with Very Hi‑Bond tape for a secure, accurate fit without the wait time required by traditional glue‑on weatherstiles.
NOTE: CRL Vertical Weatherstiles are intended only for use on newly fabricated doors being installed into a new or existing opening. They cannot be used on existing doors with pre‑installed door rails.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please contact CRL Customer Service before placing your order. Product images shown are of the actual product or a close representation. Colors can vary depending on your monitor and video card settings.
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not completely rust‑ or stain‑proof. CRL recommends periodic maintenance to preserve the factory finish. For details, see the Stainless Steel Disclaimer in the Technical References section.
Buy CRL Vertical Weatherstile Kits (W12BSS) for 1/2" tempered glass doors today — contact CRL or your local distributor to order or request a quote.
