CRL Brushed Stainless Vertical Weatherstile Kit for 3/4" Glass Door

• Kit for 3/4" (19 mm) glass doors
• Use monolithic tempered glass
• Reduces drafts and protects the edge of the glass
• Works only with CRL DRS Wedge-Lock® door rails for single and double door applications
• Five cladded architectural finishes

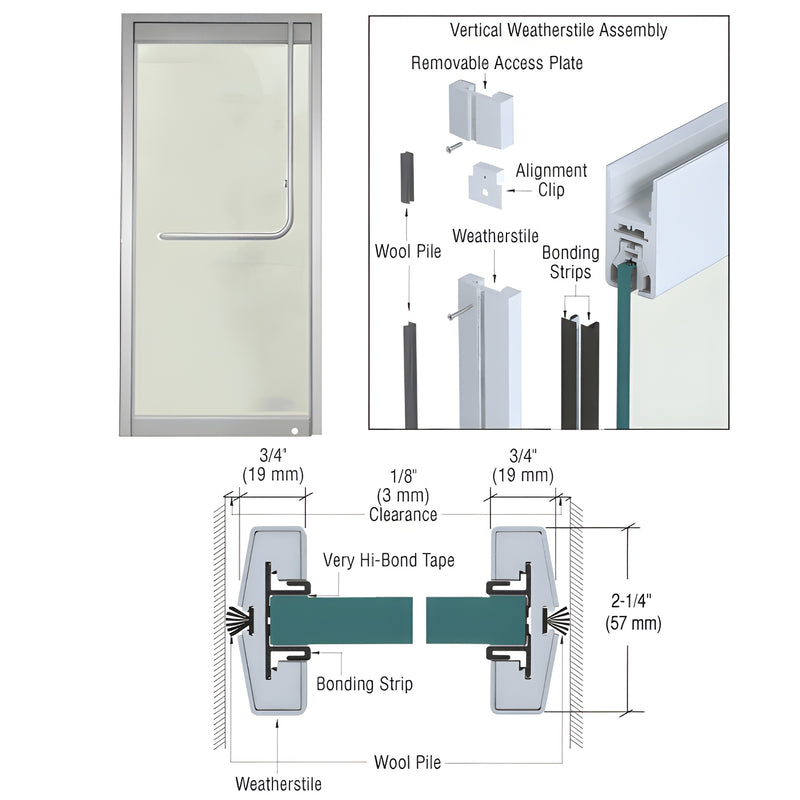

CRL Vertical Weatherstile Kits (SKU: W34BSS) include two 117" (2.97 m) lengths of weatherstile with wool pile weatherstrip, one 120" (3.05 m) black EPDM filler strip for double door applications, four 117" (2.97 m) lengths of bonding strips with Very Hi-Bond™ tape, four 1-1/2" (38 mm) tall weatherstripped removable access plates with alignment clips, and installation instructions. Custom lengths up to 117" (2.97 m) are available on special order.

CRL Vertical Weatherstile Kits have been redesigned for newly fabricated single or double doors using 1/2" (12 mm) or 3/4" (19 mm) tempered glass. These narrow vertical weatherstiles reduce drafts and protect the glass edge while preserving the all-glass aesthetic—ideal as a replacement for glue-on weatherstiles in commercial storefronts and glass door systems.

Installation uses internal bonding strips that attach to the glass with Very Hi-Bond tape for a secure, accurate fit with no cure time—designed specifically for CRL DRS Wedge-Lock door rails in both single and double door applications. Five architectural finishes help match adjacent metal frames for a seamless appearance.

NOTE: CRL Vertical Weatherstiles are intended only for newly fabricated doors being installed into a new or existing opening. They are not compatible with existing doors that have pre-installed door rails.

Stainless Steel Advisory:

Order the CRL Vertical Weatherstile Kit (SKU: W34BSS) for 3/4" tempered glass doors today to improve draft control and edge protection—contact us for custom lengths or technical support
