CRL Chrome 1/2" 128° Slant Type C Glass End Clamp for Stair Railing

• Chrome, Brass, and Brushed Nickel finishes
• Custom finishes available on request
• For tempered glass thickness 1/2" (12 mm)

Use the CRL 128 Degree Slant Obtuse End Clamp 'C' (SKU: RH5512CH) as the obtuse end clamp on slanted glass railings—installed on the bottom of the glass at the high end of the slant or the top of the glass at the low end. Designed for a 128° angle, this 128 degree obtuse end clamp for slanted glass railings secures 1/2" (12 mm) tempered glass in metal and glass railing, partition, and room divider applications.

P612** replacement screws

Our glass and railing clamps are predrilled and ready to install. Two clamp sizes accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass. Stocked in three popular finishes with custom finishes available, these clamps install easily: loosen one screw, insert the glass edge, then tighten. Use CRL Tuff-Pak Tape to cushion glass in clamps. For wood mounts use Screw Cat. No. 8X212DW; for metal mounts use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available.

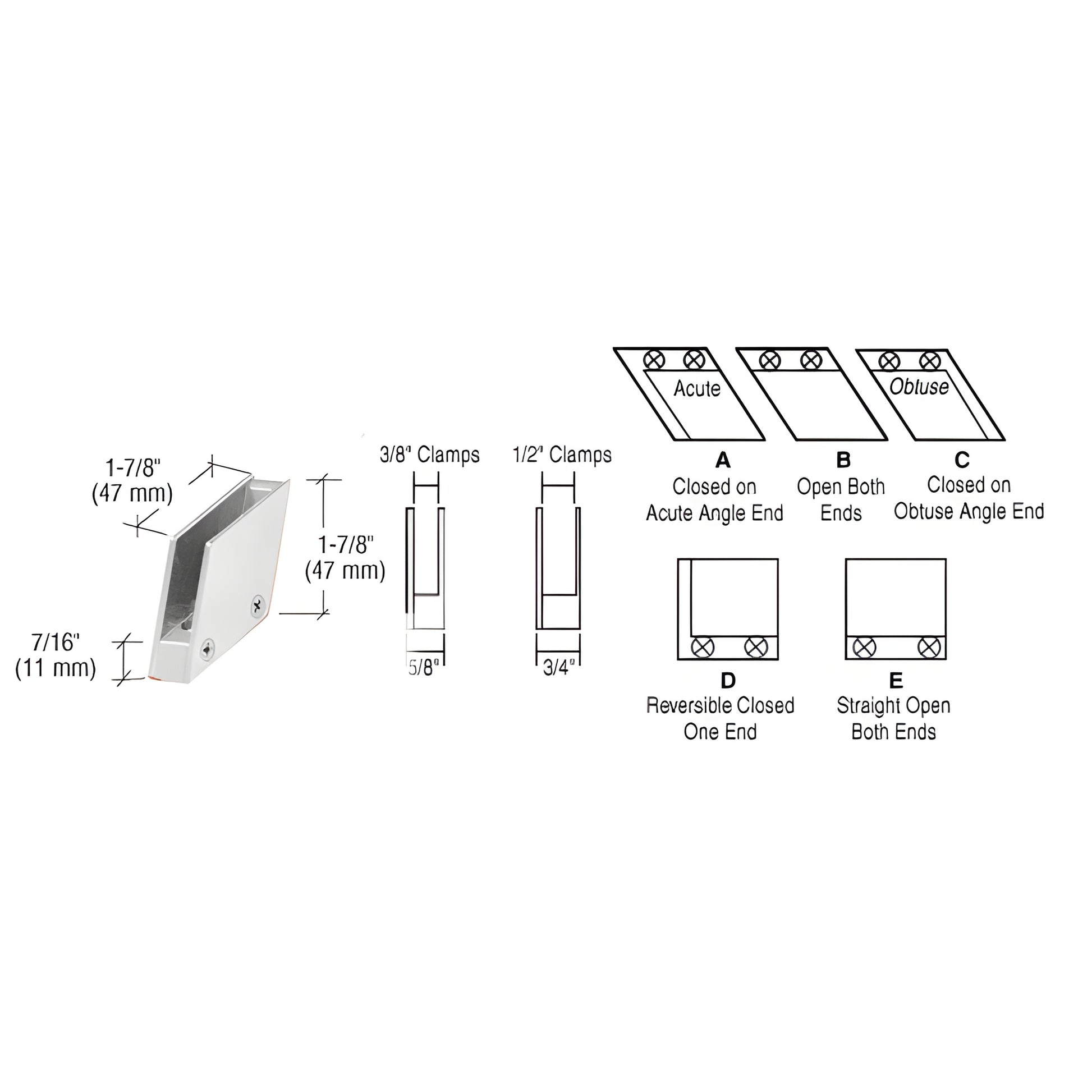

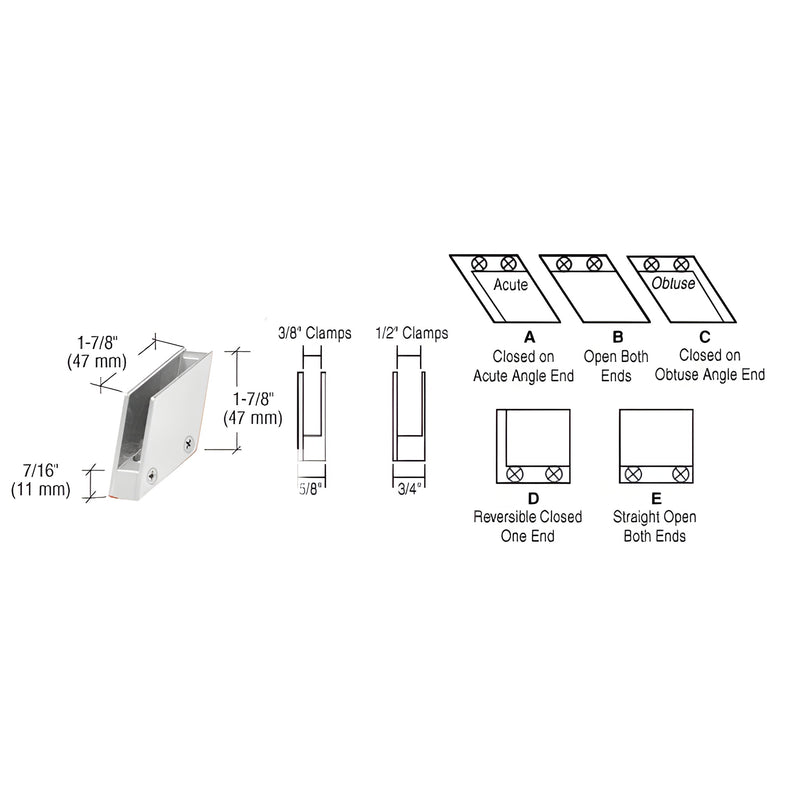

Clamp types:
A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings

Need help specifying hardware or finishes? Contact us to order RH5512CH or request a custom finish.
