CRL Chrome 3/8" 128° Slant End Clamp Type C Stair Railing Clamp

• Chrome, Brass, and Brushed Nickel finishes
• Custom finishes available on request
• Fits tempered glass thickness 3/8" (10 mm)

Use the CRL 128 Degree Slant Obtuse End Clamp 'C' (SKU: RH5538CH) on the bottom of the glass at the high end of a slanted railing or on the top of the glass at the low end. This obtuse end clamp secures glass at a 128° angle for slanted glass railing installations.

P612** replacement screws

Our glass and railing clamps are predrilled and ready for installation in metal and glass railings, partitions, room dividers, and other architectural glazing projects. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass. Stocked in three popular finishes with custom finishes available on request. Installation is simple: loosen the screw on one end, insert the glass edge, and tighten. For cushioning, use CRL Tuff-Pak™ tape inside the clamp. For wood mounting use Screw Cat. No. 8X212DW; for metal mounting use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available.

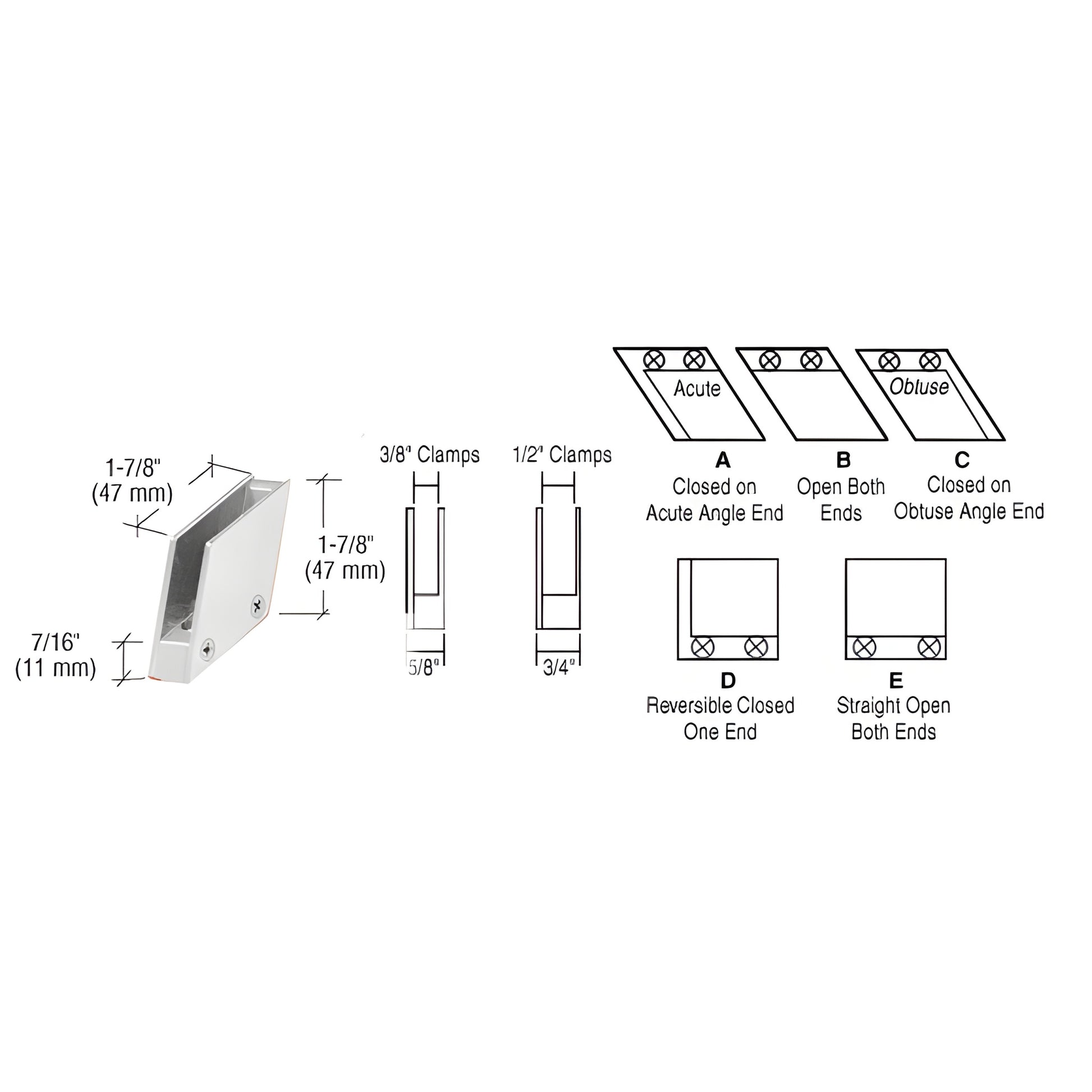

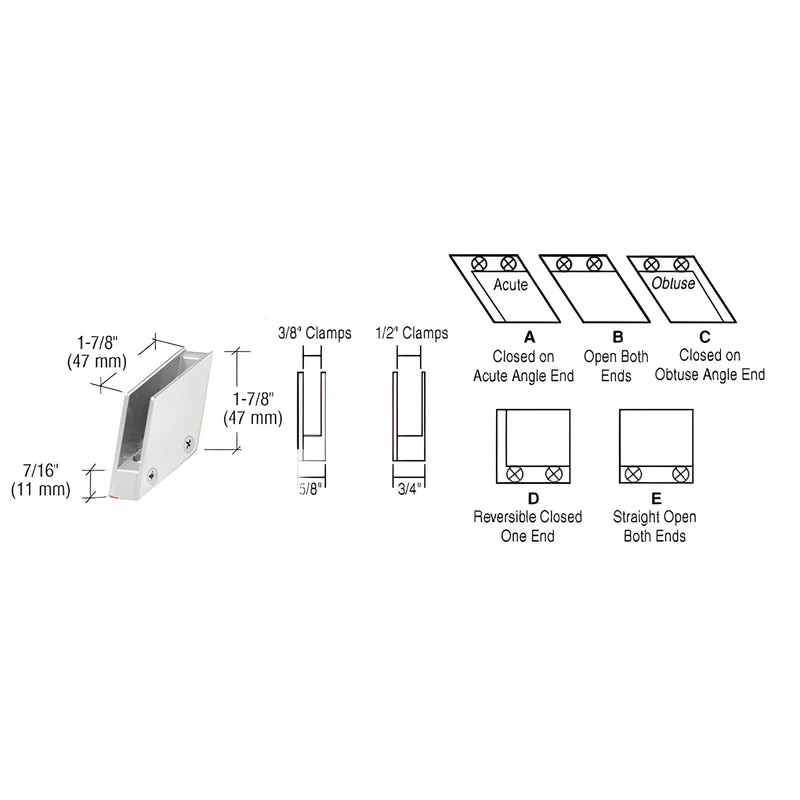

A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
