CRL Polished Brass Type C 3/8" 128° Slant End Clamp for Railings

• Chrome, Brass, and Brushed Nickel Finishes
• Custom Finishes Available on Request
• For Glass Thickness 3/8" (10 mm)

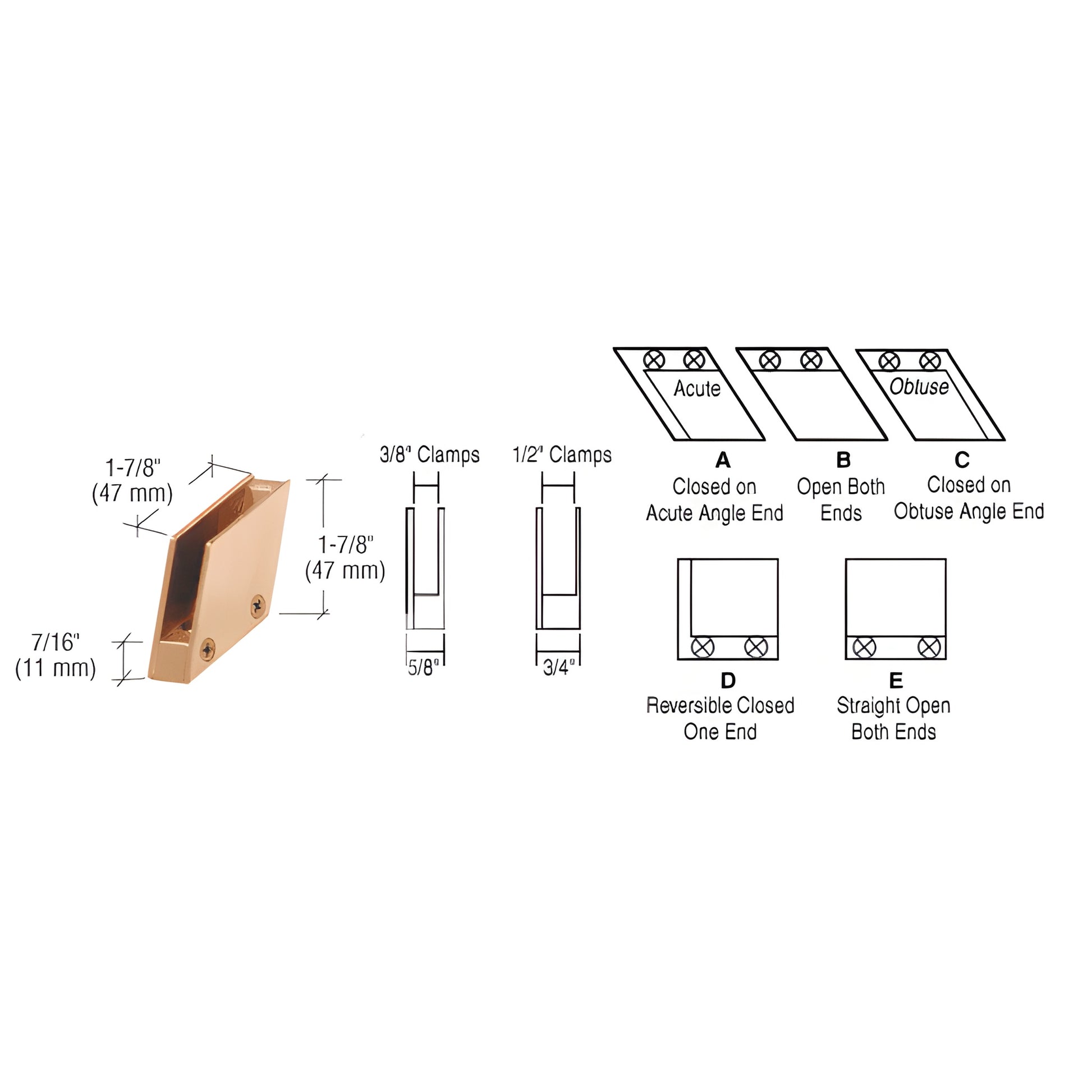

CRL 128 Degree Slant Obtuse End Clamp 'C' (SKU: RH5538BR) — obtuse end clamp designed for slanted glass railings at a 128° angle. Install on the bottom of the glass at the high end of a slope or the top of the glass at the low end. Ideal as a glass railing clamp for 3/8" (10 mm) tempered glass.

P612** replacement screws

Our glass and railing clamps are predrilled and ready for commercial and residential use in metal-and-glass railings, glass partitions, room dividers and more. Two clamp sizes accommodate 3/8" or 1/2" (10 or 12 mm) tempered glass. Stocked in three finishes with custom finishes available on request. To fit: loosen screw, insert glass edge, then tighten. Use CRL Tuff-Pak Tape to cushion glass in clamps. For wood mounting use Screw Cat. No. 8X212DW; for metal mounting use Screw Cat. No. FHSTMSS. Drawings and templates for all clamps are available on request.

A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings

Brass Finish Advisory:
