Product Details
- Chrome, Brass, and Brushed Nickel Finishes
- Custom Finishes Available on Request
- For Glass Thickness 3/8" (10 mm)

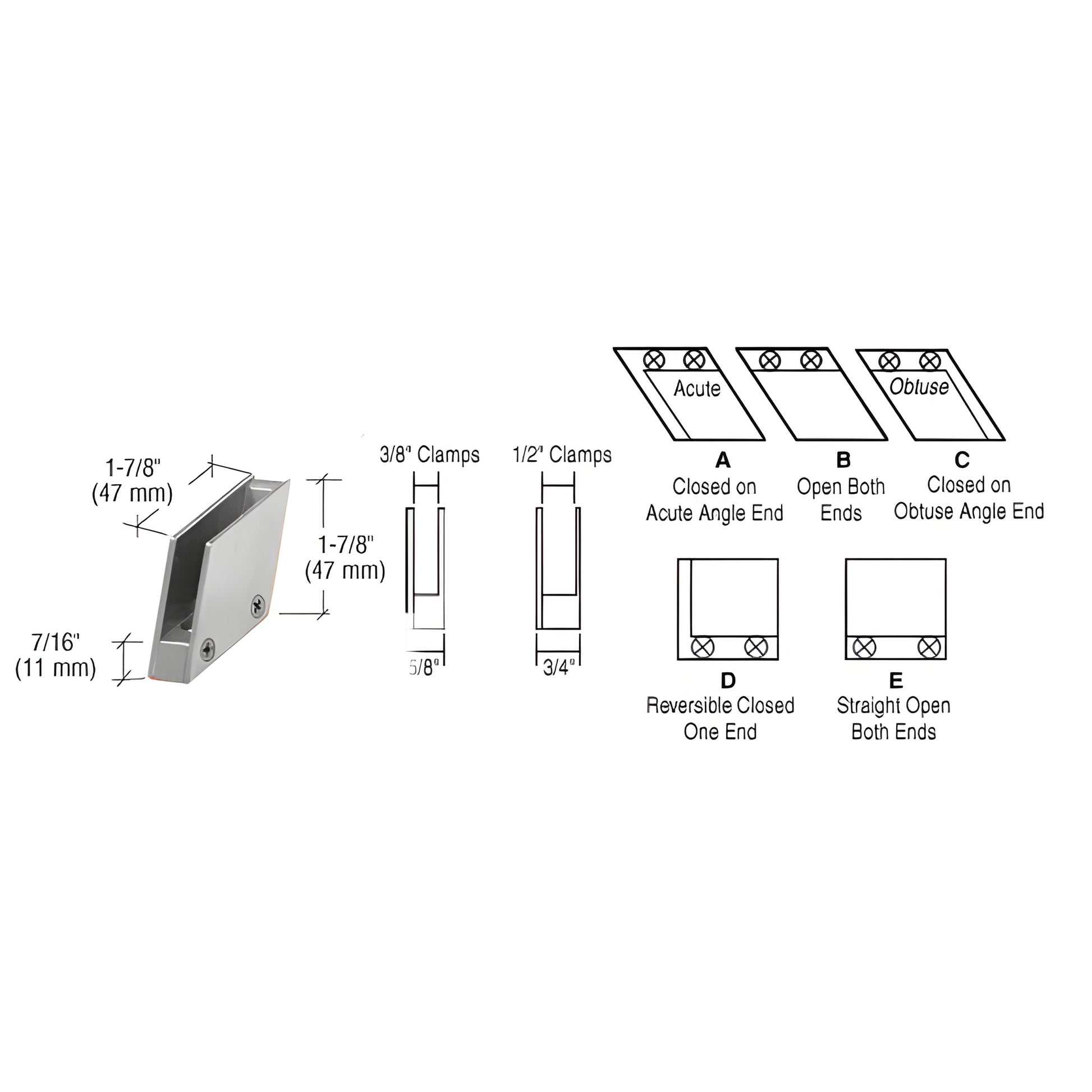

Use CRL 128 Degree Slant Obtuse End Clamp 'C' on bottom of glass at high end of slant, or top of glass at low end of slant. Clamps at 128 degree angle.
P612** replacement screws
Our Glass and Railing Clamps are predrilled and ready for use in the construction of metal and glass railings, partitions, room dividers and more. Two sizes accommodate 3/8" or 1/2" (10 or 12 mm) thick tempered glass. Three popular finishes are stocked, with custom finishes available. Simply loosen screw on one end, insert glass edge and tighten. Use CRL Tuff-Pak Tape, to cushion glass in Clamps. For wood mount attachments use Screw Cat. No. 8X212DW. For metal attachments use Screw Cat. No. FHSTMSS. Drawings and templates for all Clamps are available.
A: Acute End Clamp for Slanted Railings
B: Open Center Clamp for Slanted Railings
C: Obtuse End Clamp for Slanted Railings
D: Straight End Clamp for Level Railings
E: Straight Open Center Clamp for Level Railings
