CRL Chrome Drilled Glass Shelf Brackets for Cable Display System
Item# CB108
Shipping Weight: 1.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.04 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 3% Off |
| Buy 5 | 6% Off |
| Buy 8 | 9% Off |
| Buy 11 | 12% Off |
| Buy 16 | 16% Off |

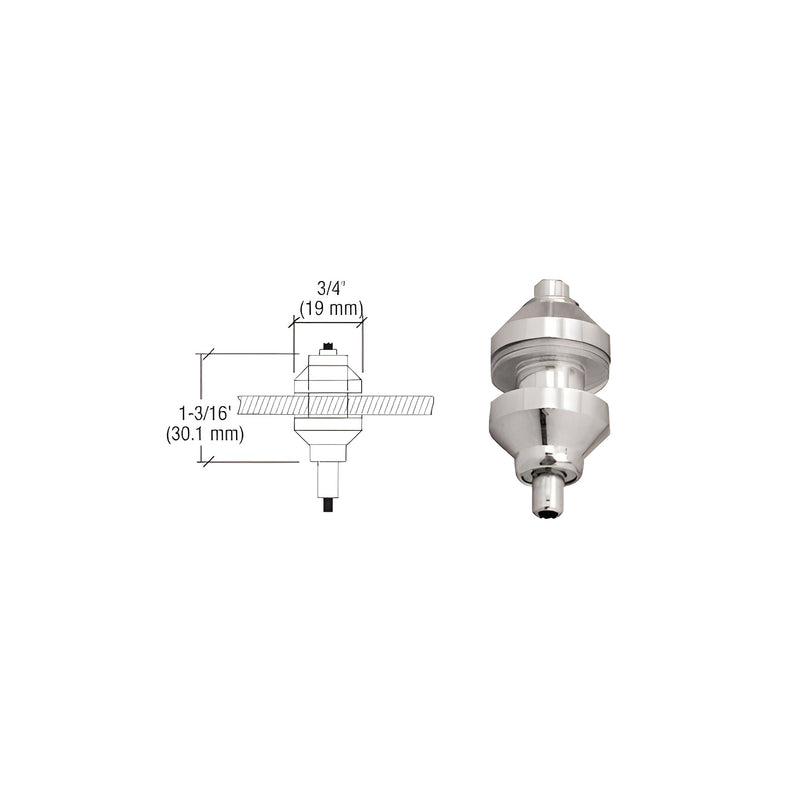

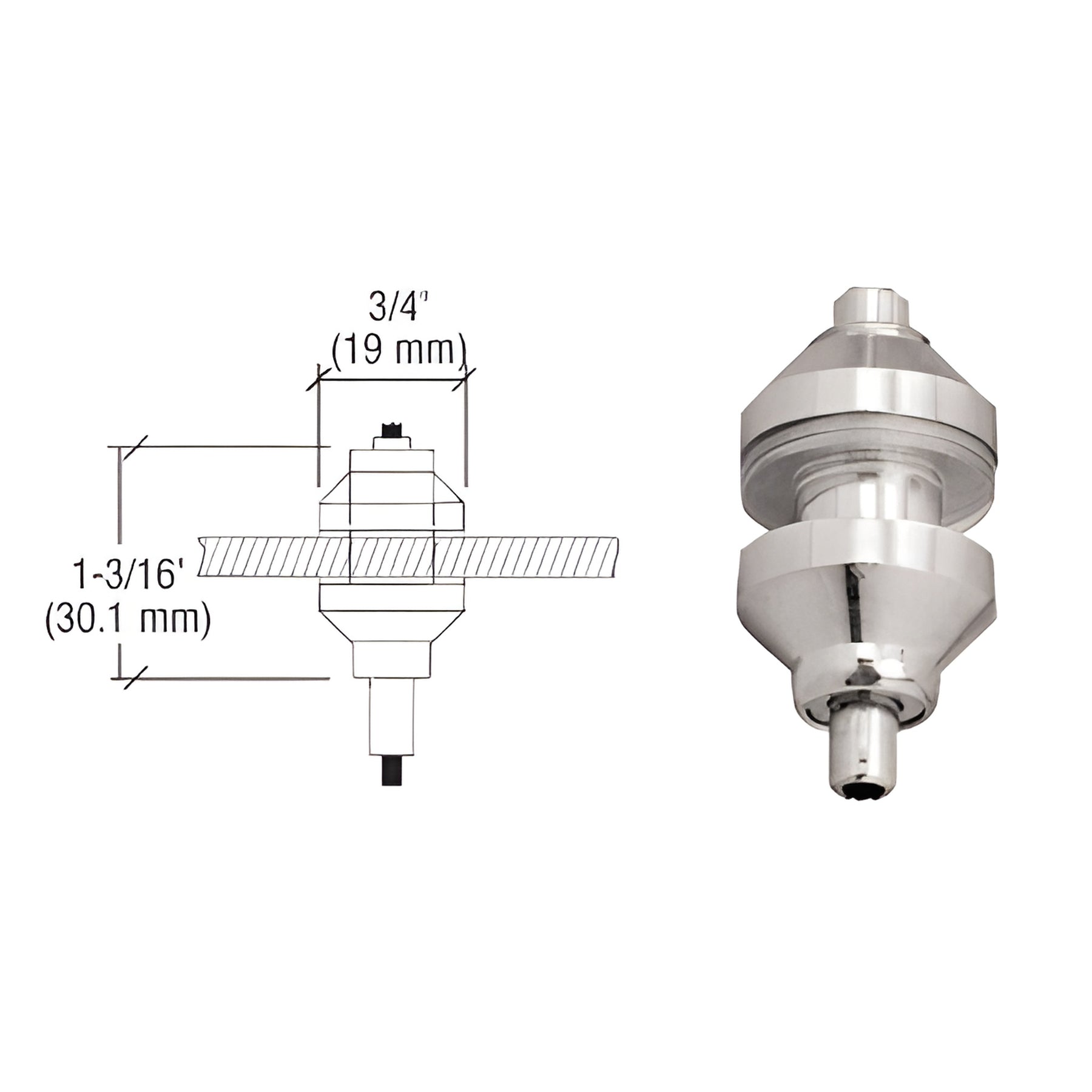

Diameter
3/4 in. (19.1 mm)
Finish/Color
Polished Chrome
Glazing Thickness
5/16 in. (8 mm)
Length
1-3/16 in. (30.2 mm)
Material
Brass
Weight Capacity
Each Column (4 cables) Can Bear A Total Weight Of Up To 80 lbs. Each Shelf Can Bear A Total Weight Of 20 lbs.
- Securely and efficiently holds panels to cables
- Fits 1/4" and 5/16" (6 to 8 mm) panels
- Installs into 1/2" (12 mm) drilled holes in glass, acrylic or wood
- Unscrewing two-piece bracket allows easy shelf installation and repositioning
- Chrome‑plated finish for corrosion resistance and a polished display look
The CRL Chrome Plated Drilled Glass Shelf Brackets for the Cable Display System (SKU: CB108) secure panels to stainless steel display cables for retail and showroom shelving. The two-piece drilled bracket accepts the cable through both halves, then screws together to lock panels in place. To reposition a shelf, depress the lower half and slide the panel to the desired height. Minimum order: one bracket.
Product Warning:
WEIGHT LIMITATIONS: When properly installed, each column (4 cables) can bear up to 80 lbs. (36 kg) total. Each shelf can bear up to 20 lbs. (9 kg) when used with CB74, CB76 and CB78 Ceiling Mount Fittings. If CB112 or CB114 Hanger Pipe Base Fittings are properly anchored and used as ceiling attachments, each column (4 cables) can bear up to 40 lbs. (18 kg).
Most shipping weights are approximate and have not been verified. If exact weight is required for shipping cost calculation, contact CRL Customer Service before ordering. Product images are actual or close representations; colors may vary by monitor.
Ready to upgrade your cable display shelving with chrome plated drilled glass shelf brackets? Add SKU CB108 to your cart now.
