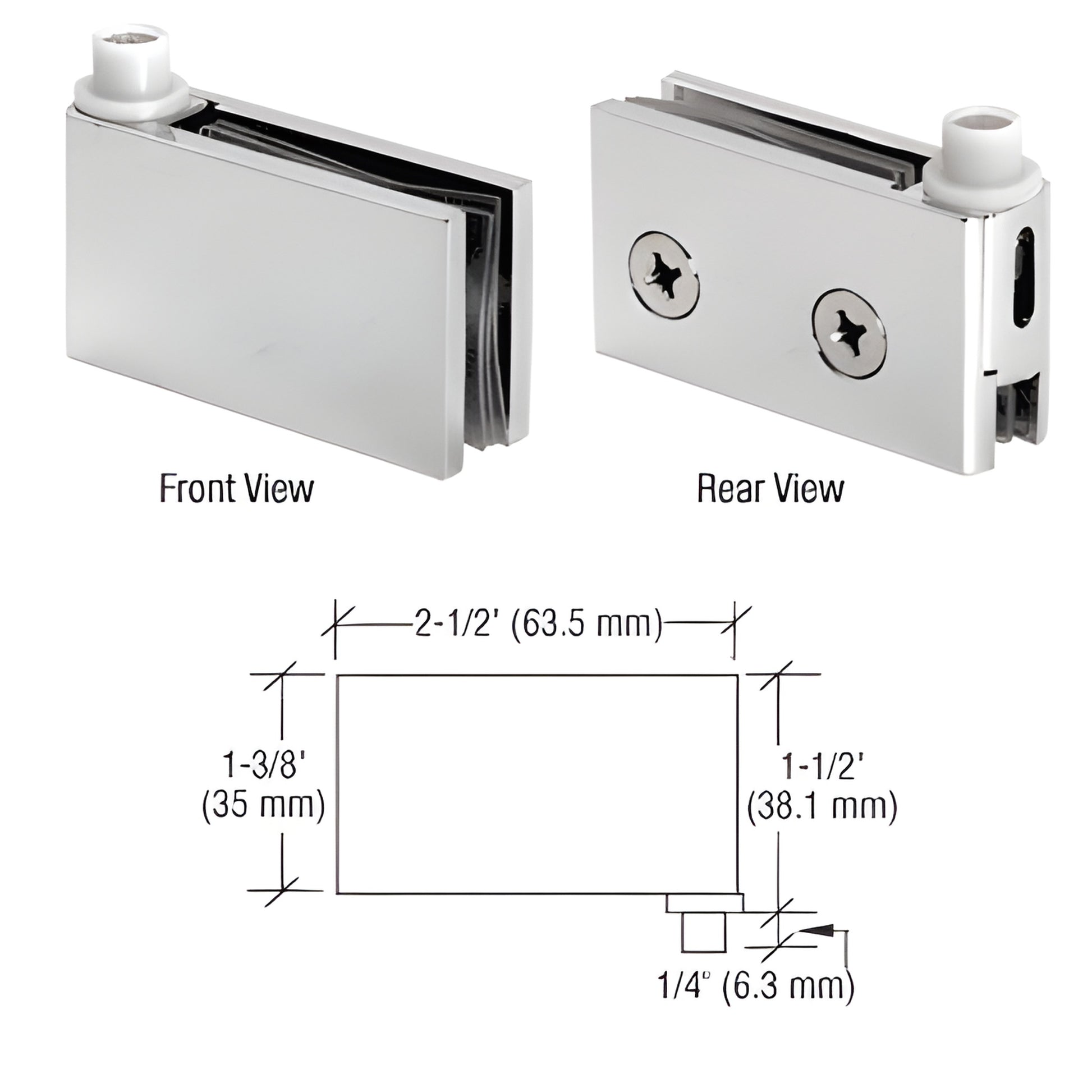

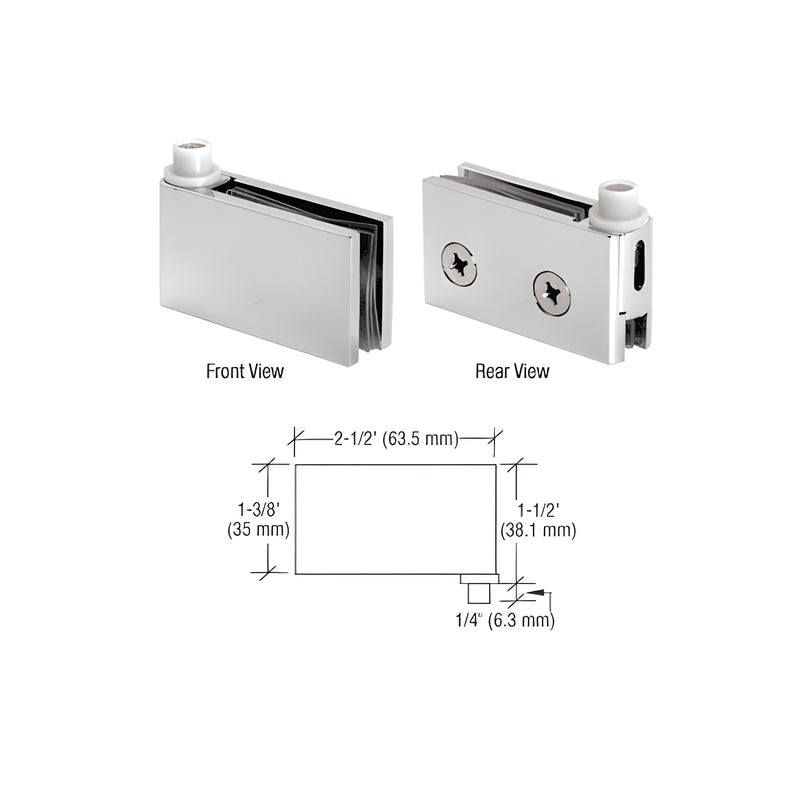

• Polished chrome CRL FA55CH flush-mount brass pivot hinge for 1/4-5/16" (6-8mm) glass doors, front and rear views with dims.
1 1

CRL

CRL Chrome Flush-Mount Cabinet Door Pivot Hinges

CRL Chrome Flush-Mount Cabinet Door Pivot Hinges

$138.19 CAD
$138.19 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# FA55CH
Shipping Weight: 1.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Pack
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Polished Chrome
Glazing Thickness
1/4 in. To 5/16 in. (6mm To 8 mm)
Height
1-1/2 in. (38.1 mm)
Material
Brass
Maximum Door Width
24 in. (609.6 mm)
Pack Quantity
2
Weight Capacity
50 lbs. (22.7 kg)
Width
2-1/2 in. (63.5 mm)

Overview

  • For 1/4" to 5/16" (6 to 8 mm) glass
  • Requires One Hole and One Cut-Out (glass fabrication)
  • One set (top and bottom) per package

CRL Flush Mount Cabinet Pivot Hinge (SKU FA55CH) is a low-profile, flush-mount cabinet pivot hinge for glass doors designed for 1/4" or 5/16" (6 or 8 mm) glass. Recommended maximum door width is 24" (610 mm) with a maximum door weight of 50 lbs (22.7 kg). Minimum clearance required is 1/8" (3.2 mm) top and bottom. Installation requires one hole and one cut-out in the glass for secure pivot mounting. Each pack contains one top and one bottom hinge set—ideal for frameless glass cabinet doors and other small glass door applications.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before completing your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and how your monitor's color is adjusted.


Order SKU FA55CH today or contact CRL Customer Service for technical or ordering assistance.
