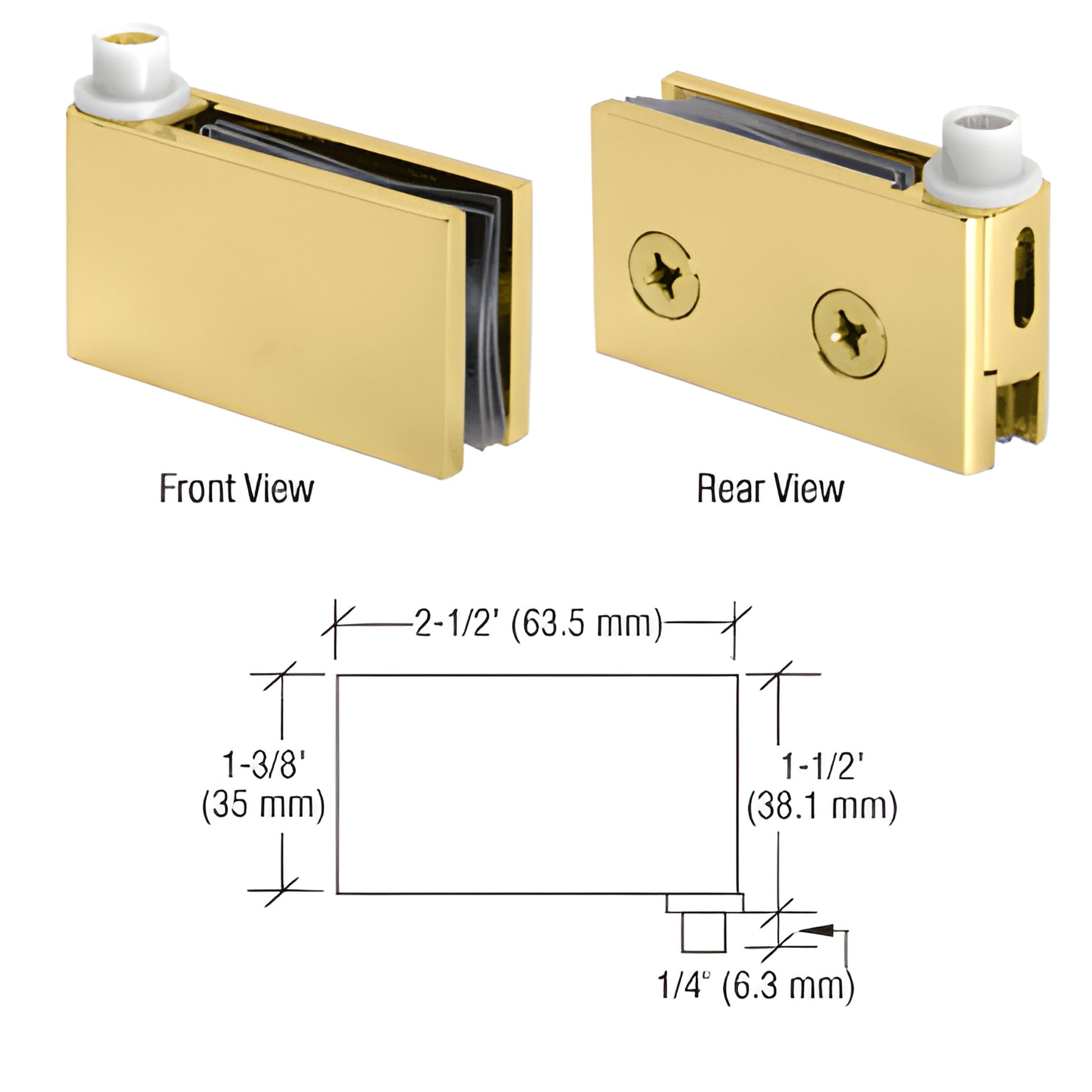

CRL Brass Flush Mount Cabinet Pivot Hinges
Item # FA55BR
$126.55
CAD
Finish (3)
-
Polished Brass -
Polished Chrome -
Satin Chrome
Overview
| SKU | FA55BR |
|---|---|
| Sold As | 1 Pack |
| Finish/Color | Polished Brass |
| Glazing Thickness | 1/4 in. To 5/16 in. (6mm To 8 mm) |
| Height | 1-1/2 in. (38.1 mm) |
| Material | Brass |
| Maximum Door Width | 24 in. (609.6 mm) |
| Weight Capacity | 50 lbs. (22.7 kg) |
| Width | 2-1/2 in. (63.5 mm) |
Description
- For 1/4" to 5/16" (6 to 8 mm) Glass
- Requires One Hole and One Cut-Out
- One Set Top and Bottom Per Package
The CRL Flush Mount Cabinet Pivot Hinge can be used with 1/4" or 5/16" (6 or 8 mm) glass. The maximum recommended door width is 24" (610 mm). The recommended maximum weight of the door should not exceed 50 lbs. (22.7 kg). Minimum clearance required is 1/8" (3.2 mm) top and 1/8" (3.2 mm) bottom. Required glass fabrication for hinge installation is one hole and one cut out. One set top and bottom per pack.
Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
