CRL Clear Anodized Aluminum Division Bar 1-3/4 x 1-7/8 in Vinyl 24 ft
Item# DB27411
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized
Height
1-7/8
Includes
Vinyl and Screws
Length
24
Material
Extruded Aluminum
Width
1-3/4
- Available in Four Finishes
- Supplied with Vinyl and Screws
- Back Bar is Punched 12" (305 mm) on Center

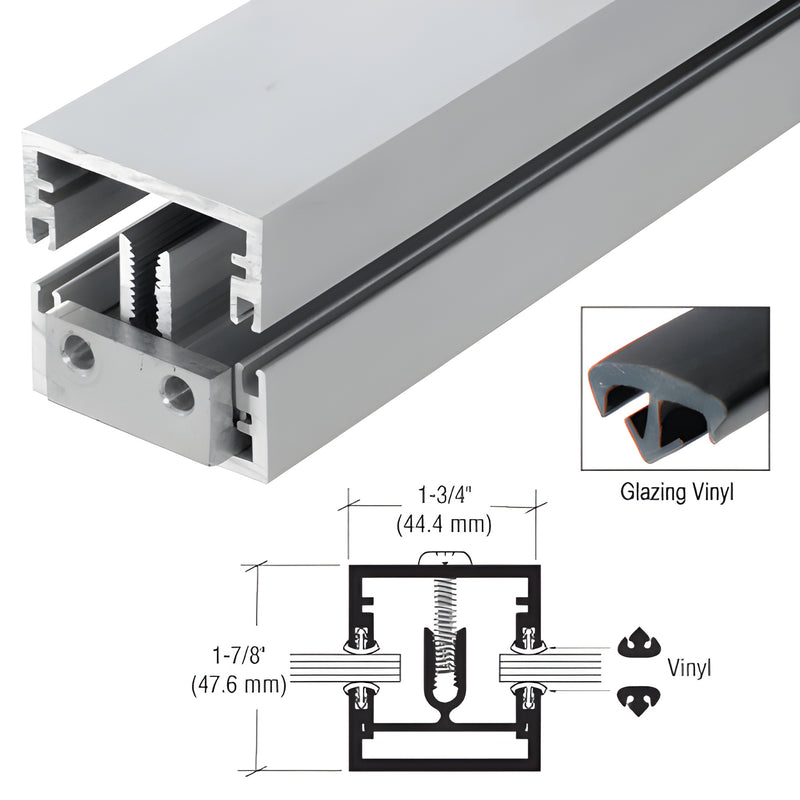

CRL Shallow Division Bar (SKU: DB27411) with glazing vinyl is a lightweight extruded aluminum division bar designed for small fixed window units. Use vertically or horizontally — the system features a face member with an extruded spline and threaded holes for exposed fasteners and a back member with pre-drilled holes. After inserting the glazing infill, the back and face members are screwed together to form the window. Each shallow division bar includes 100' (30.5 m) of glazing vinyl and 20 each 1/4-20 x 1" (25.4 mm) pan head Phillips machine screws.
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images show the actual product or a close representation; colors may vary by monitor.
Ideal for glazing repair, storefront glass framing, and fixed window assemblies where a low-profile, durable extruded aluminum division bar is required. Order DB27411 today or contact CRL for custom cuts and shipping options.
