CRL Clear Anodized Shallow Aluminum Division Bar w/ Vinyl Insert
Item# DB27511
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Clear Anodized
Height
1-1/4
Includes
Vinyl and Screws
Length
24
Material
Extruded Aluminum
Screw Size
1/4-20 x 1-3/16"
Width
1-3/4
- Available in Clear Anodized and Dark Bronze finishes
- Supplied with glazing vinyl and 1/4-20 x 1-3/16" pan head Phillips machine screws (20 per piece)
- Back bar punched 12" (305 mm) on center for fastener alignment

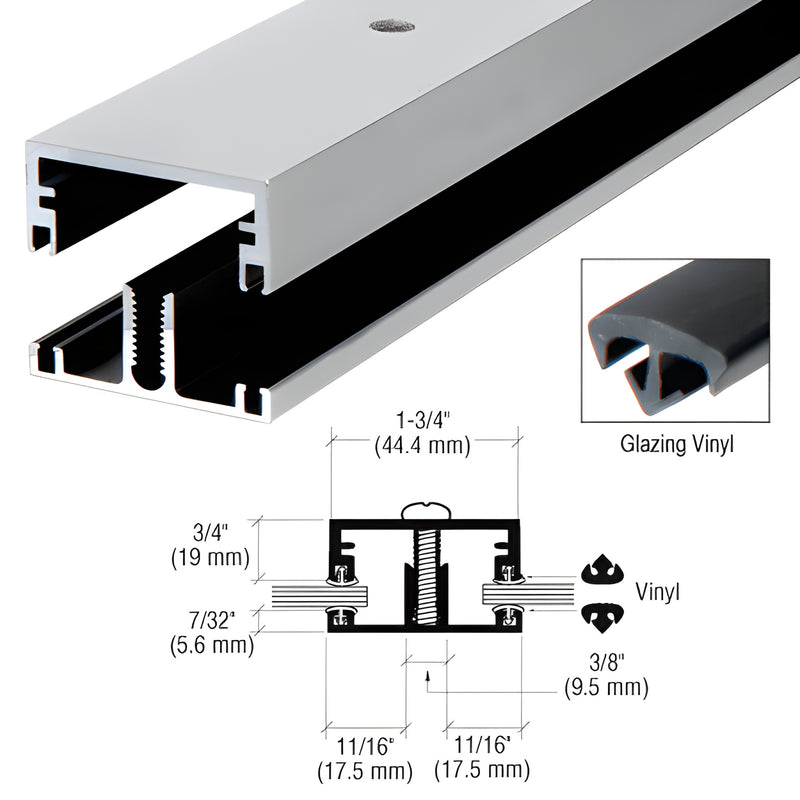

CRL Shallow Division Bar (SKU DB27511) is a lightweight extruded aluminum division bar with vinyl, engineered for small fixed window units and storefront glazing. The system uses an extruded face member with an internal spline and threaded channels to receive exposed fasteners through the punched back member; back and face members are screwed together after glazing infill installation to form a secure, low-profile division bar. Each piece includes 100' (30.5 m) of glazing vinyl and 20 machine screws.
Product Warning:
Must ship common carrier if over 98" (2.49 m) length.
