CRL Polished Brass Vertical Weatherstile Kit for 1/2" Glass Door

• Custom Length Up To 117"
• Kit for 1/2" (12 mm) Glass Doors
• Use Monolithic Tempered Glass
• Reduces Drafts and Protects the Edge of the Glass
• Works Only with CRL DRS Wedge-Lock® Door Rails for Both Single and Double Door Applications
• Five Cladded Architectural Finishes

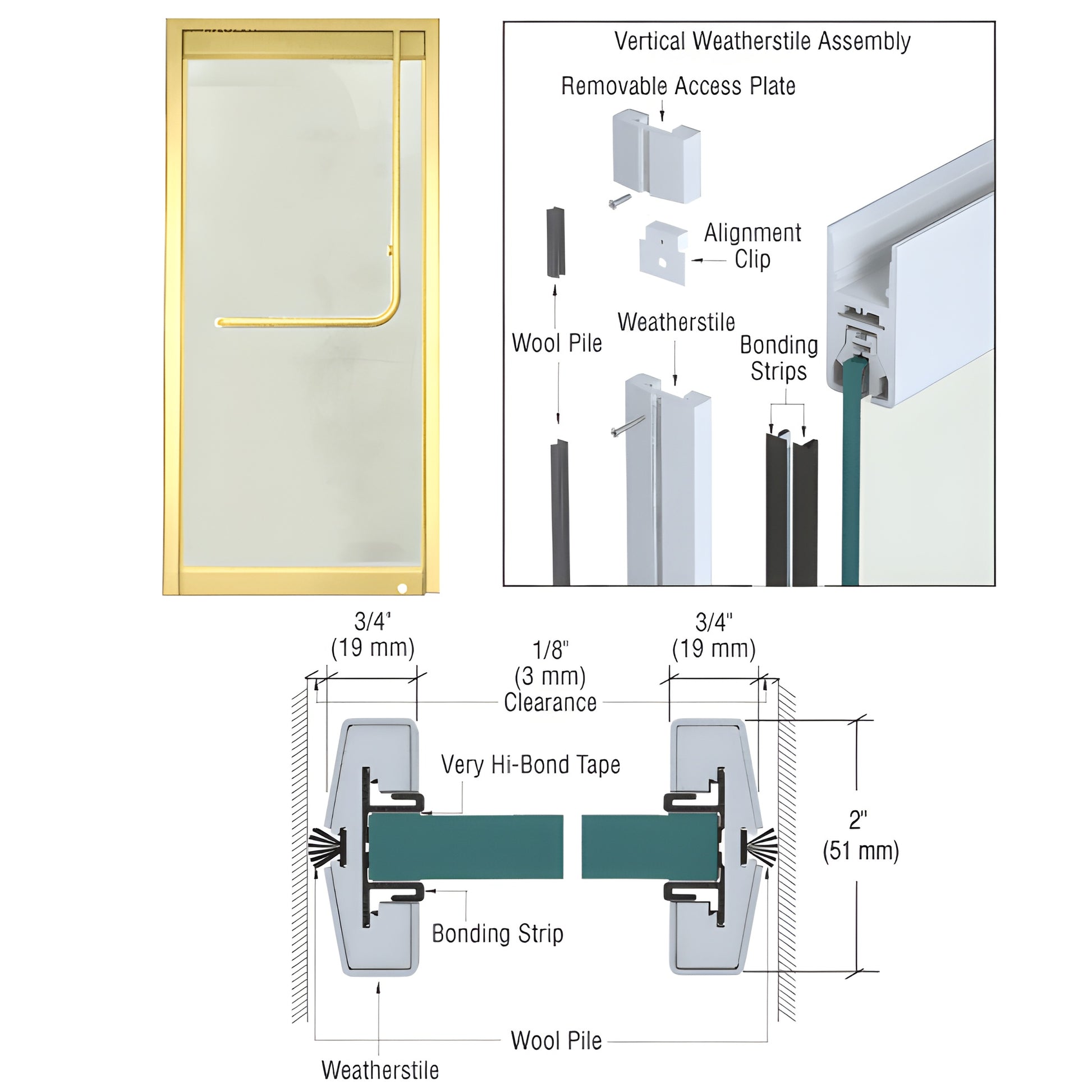

CRL Vertical Weatherstile Kits (SKU: W12PBSC) include two lengths of Weatherstile with wool pile weatherstrip, one black EPDM filler strip for double door applications, four lengths of bonding strips with Very Hi‑Bond Tape, four 1-1/2" (38 mm) tall weatherstripped removable access plates with alignment clips, and installation instructions.

CRL Vertical Weatherstile Kits have been redesigned for use with newly fabricated single or double doors using 1/2" (12 mm) or 3/4" (19 mm) tempered glass. These narrow vertical weatherstiles reduce drafts and protect the glass edge while maintaining an all‑glass aesthetic—ideal for commercial storefronts and office entrances that require monolithic tempered glass door weatherproofing.

Key differentiators:

• Redesigned for newly fabricated doors with 1/2" or 3/4" tempered glass
• Fast, reliable installation using internal bonding strips and Very Hi‑Bond Tape—no lengthy glue cure time
• Compatible only with CRL DRS Wedge‑Lock® door rails for accurate alignment on single and double door systems
• Available in five cladded architectural finishes to match adjacent metal door frames

Installation is completed by attaching internal Bonding Strips to the glass with Very Hi‑Bond Tape for a secure, repeatable fit—replacing traditional glue‑on weatherstiles and reducing installation variability.

NOTE: CRL Vertical Weatherstiles are intended only for use on newly fabricated doors being installed into a new or existing opening. They cannot be used on existing doors with pre‑installed door rails.

Brass Finish Advisory:
