- Custom Length Up To 117"
- Kit for 1/2" (12 mm) Glass Doors
- Use Monolithic Tempered Glass
- Reduces Drafts and Protects the Edge of the Glass
- Works Only with CRL DRS Wedge-Lock® Door Rails for Both Single and Double Door Applications
- Five Cladded Architectural Finishes

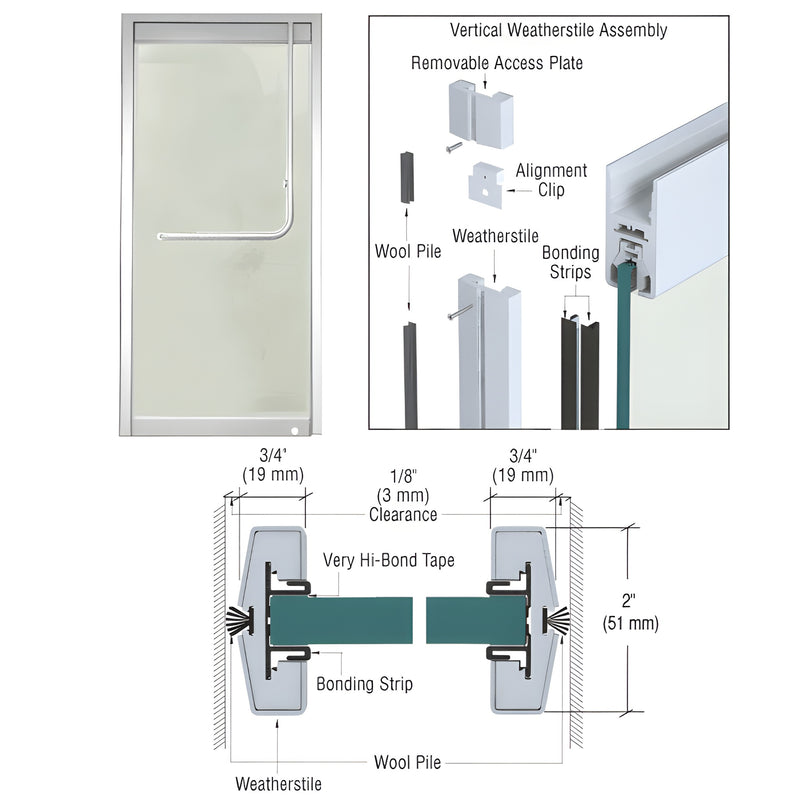

CRL Vertical Weatherstile Kits (SKU: W12PSSC) include two lengths of weatherstile with wool pile weatherstrip, one black EPDM filler strip (for double door applications), four bonding strips with Very Hi‑Bond tape, four 1-1/2" (38 mm) tall weatherstripped removable access plates with alignment clips, and installation instructions.
CRL Vertical Weatherstile Kits are redesigned for newly fabricated single or double doors using 1/2" (12 mm) or 3/4" (19 mm) tempered glass. These narrow vertical weatherstiles preserve the all-glass appearance while reducing drafts and protecting the glass edge—ideal for commercial storefronts and interior glass door systems.
Installation uses internal bonding strips that adhere to the glass with Very Hi‑Bond tape for a secure, accurate fit—no cure time required like traditional glue-on weatherstiles. Note: for use only on newly fabricated doors; not compatible with existing doors that have pre-installed door rails.
Highlights and differentiators:
- Designed specifically for CRL DRS Wedge-Lock® door rails—supports single and double door applications
- Weatherstripped removable access plates for easy maintenance and service access
- Five cladded architectural finishes to match adjacent metal finishes
- Fast, reliable installation with Very Hi‑Bond tape—no adhesive cure wait time
Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service prior to ordering. Product images are representative; actual colors may vary with monitor settings.
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the CRL Vertical Weatherstile Kit (W12PSSC) today to secure and streamline installation of tempered glass commercial doors.
