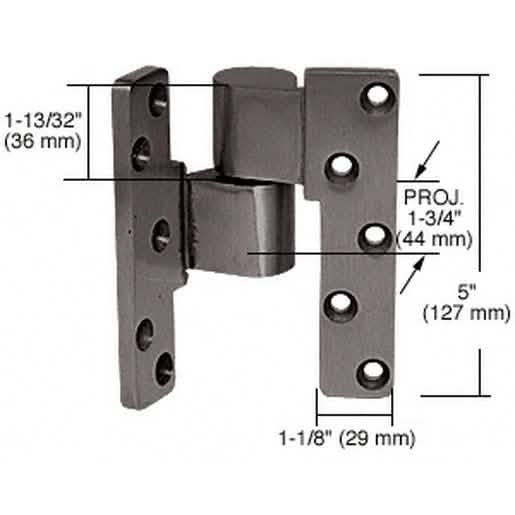

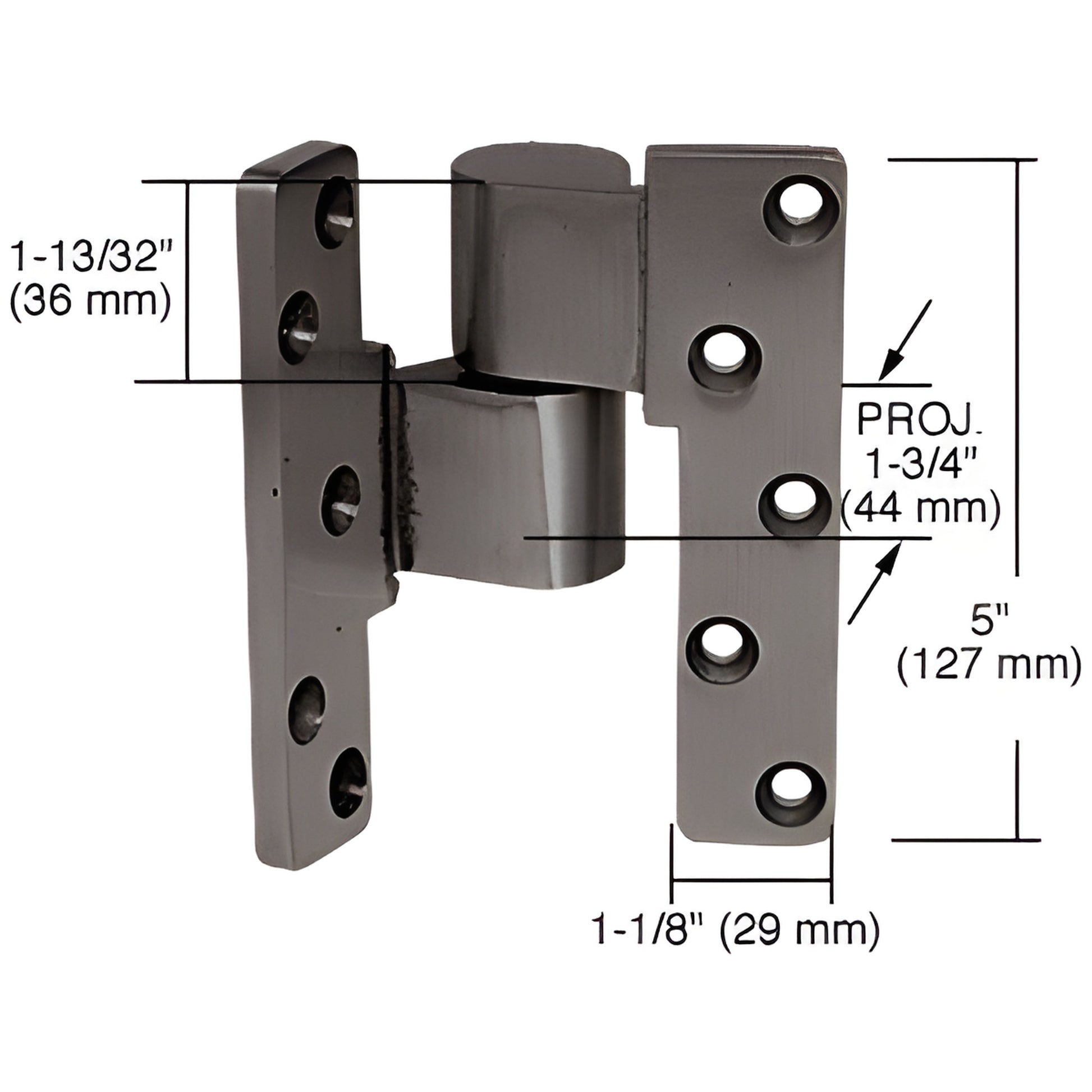

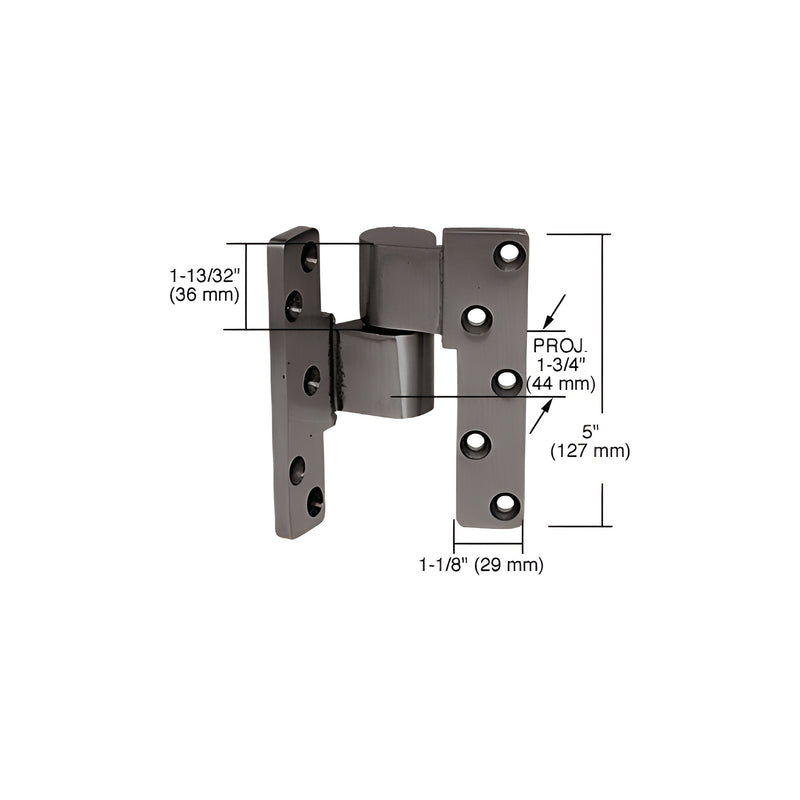

CRL Dark Bronze 3/4" Offset Intermediate Left-Hand Glass Door Pivot
CRL Dark Bronze 3/4" Offset Intermediate Left-Hand Glass Door Pivot
Regular price
$134.20 CAD
Regular price
Sale price
$134.20 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 41J190L313
Shipping Weight: 14.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 14.72 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Dark Bronze
Handing
Left Hand
Material
Aluminum
Pivot Type
Offset Intermediate
Recommended Door Type
Aluminum Store Front
Vertical Adjustment
5/8
Overview
- For aluminum storefront doors — maintains door alignment (not load-bearing)
- Fully retractable pin with 5/8" (16 mm) vertical adjustment for precise leveling
- Full race ball-bearing plus oilite bronze bushing for long, maintenance‑free life
The Jackson® J190 Intermediate 3/4" Offset Pivots (SKU: 41J190L313) are handed, full‑mortise intermediate pivots designed for standard 1-3/4" (44 mm) aluminum storefront doors. Ideal as an intermediate offset pivot for storefront and commercial aluminum doors, these pivots are templated for new construction or retrofit installations and feature a fully retractable pin for quick, easy installation. The full race ball‑bearing and oilite bronze bushing deliver smooth operation and durability, while the 5/8" (16 mm) vertical adjustment enables fine door alignment without additional hardware. These are alignment pivots — not intended to carry primary door loads.
Product Warning:
These pivots maintain door alignment when used with doors 90" (2.29 m) or taller. Each additional 30" (762 mm), or fraction thereof, warrants the use of an additional intermediate Pivot.
Specifications
CAD Drawings - pdf
