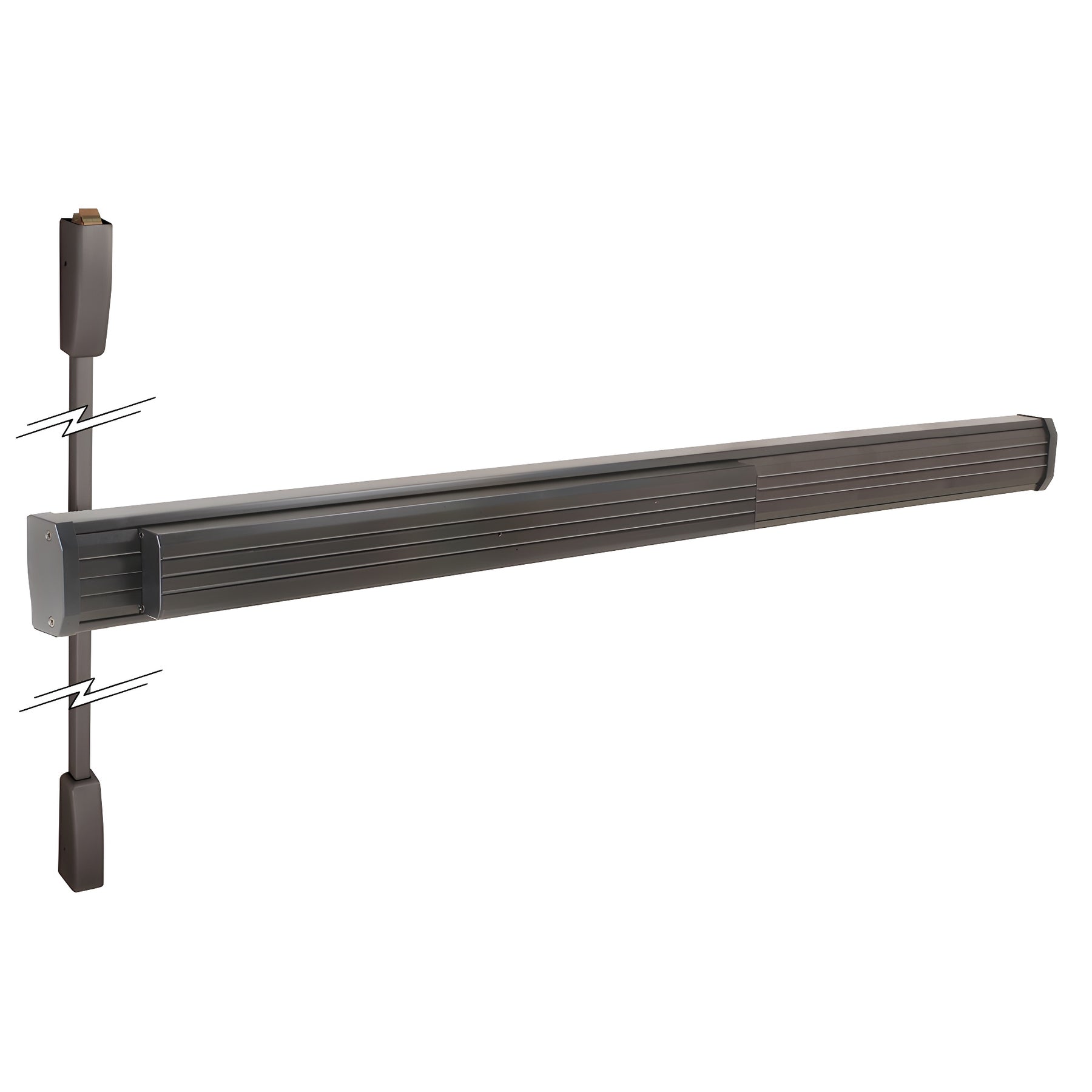

CRL Dark Bronze 48" x 96" Jackson® 1275 Push Pad Surface Vertical Rod Panic Exit Device
Item # 31127548313
$794.21
CAD
Finish (2)
-
Dark Bronze -
Aluminum
Overview
| SKU | 31127548313 |
|---|---|
| Sold As | 1 Each |
| Brand | Jackson |
| Certification | ANSI/BHMA 156.3 |
| Door Height | 96 in. (2438.4 mm) |
| Door Thickness | 1-3/4 in. (44.5 mm) |
| Door Width | 48 in. (1219.2 mm) |
| Finish/Color | Dark Bronze |
| Handing | Non Handed |
| Includes | Mounting Hardware |
| Material - End Cap | Aluminum |
| Material - Housing | High Tensile Strength Aluminum |
| Material - Latch & Strike | Sintered Steel |
| Material - Mechanical Components | Stainless and Hardened Plated Steel |
| Minimum Stile Width | 1-3/4 in. (44.5 mm) |
| Model | 1275 |
| Panic Bar Base Height | 3-3/16 in. (81 mm) |
| Panic Bar Projection | 2-7/8 in. (73 mm) |
| Panic Bar Width Net | 46-1/2 in. (1181.1 mm) |
| Panic Dogging | Standard Hex Key Dogging |
| Panic Type | Surface Vertical Rod |
| Push Pad Width | 24 in. (609.6 mm) |
| Recommended Door Type | Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal |
| Replacement Parts | 302861 |
| Series | 1200 |
| Similar | 3327AE03313, 3327AE04313, 360L613 |
| UL Listed | Yes |
Description
- Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- Soft Touch Smooth Action Push-Pad
- Can Be Cut to Size
- Standard Hex Key Dogging
This sleek, contemporary CRL Jackson® Surface Vertical Rod Panic Exit Device is designed for use on a minimum of 1-3/4" (44.5 mm) narrow stile aluminum doors. Also may be used with medium and wide stile aluminum and hollow metal doors. Sized for standard 48" wide and 84" (2.13 m) tall doors, but may be trimmed for narrower conditions. The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on bar insert for instant release. This device features specially engineered Jackson® 'C' Top Latch and latch-mating strikes designed for increased security. Overall projection is less than 3" (75 mm) from the surface.
SPECIFICATIONS:
1275 Surface Vertical Rod Device
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
