Product Details
- Specified Everywhere Because of Their Long Service Life
- Straight Hole Pattern
- Available in Standard or Heavy-Duty Models
- Standard Duty Hinges for Doors Weighing Up to 200 Lbs. (90 kg)
- Heavy-Duty Hinges for Doors Weighing Up to 600 Lbs. (272 kg)

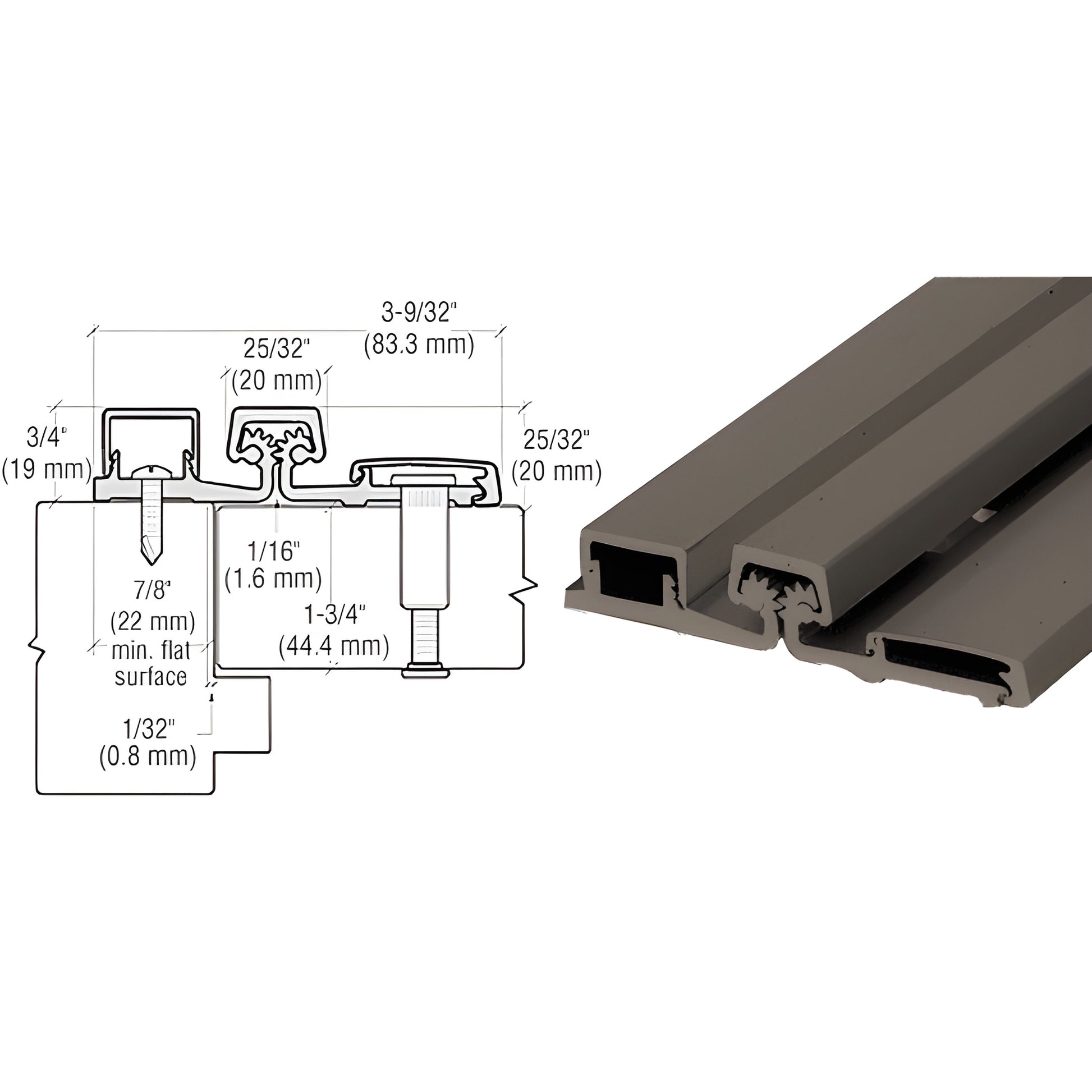

CRL Roton Hinges are made of high strength aluminum with a full-length rolling gear profile to align doors perfectly from top to bottom. Special self-lubricating polyacetal load bearing blocks deliver smooth, almost floating operation on even the heaviest doors. Hinges are completely secure because all mounting hardware is hidden. CRL Roton Hinges are easy-to-install, and come complete with instructions and all necessary mounting hardware. Replacement Screw Packs are also available.
