CRL
CRL Roton 157 Series 83" Satin Anodized Full-Surface Door Hinge
CRL Roton 157 Series 83" Satin Anodized Full-Surface Door Hinge
Regular price
$531.02 CAD
Regular price
Sale price
$531.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 15783A
Shipping Weight: 9.85 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.85 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Satin Anodized
Includes
Installations Screws
Length
83 in. (2108.2 mm)
Material
Aluminum
Maximum Door Weight
200 lbs. (90.7 kg)
Replacement Screw Pack
64611SA
Series
Roton 157

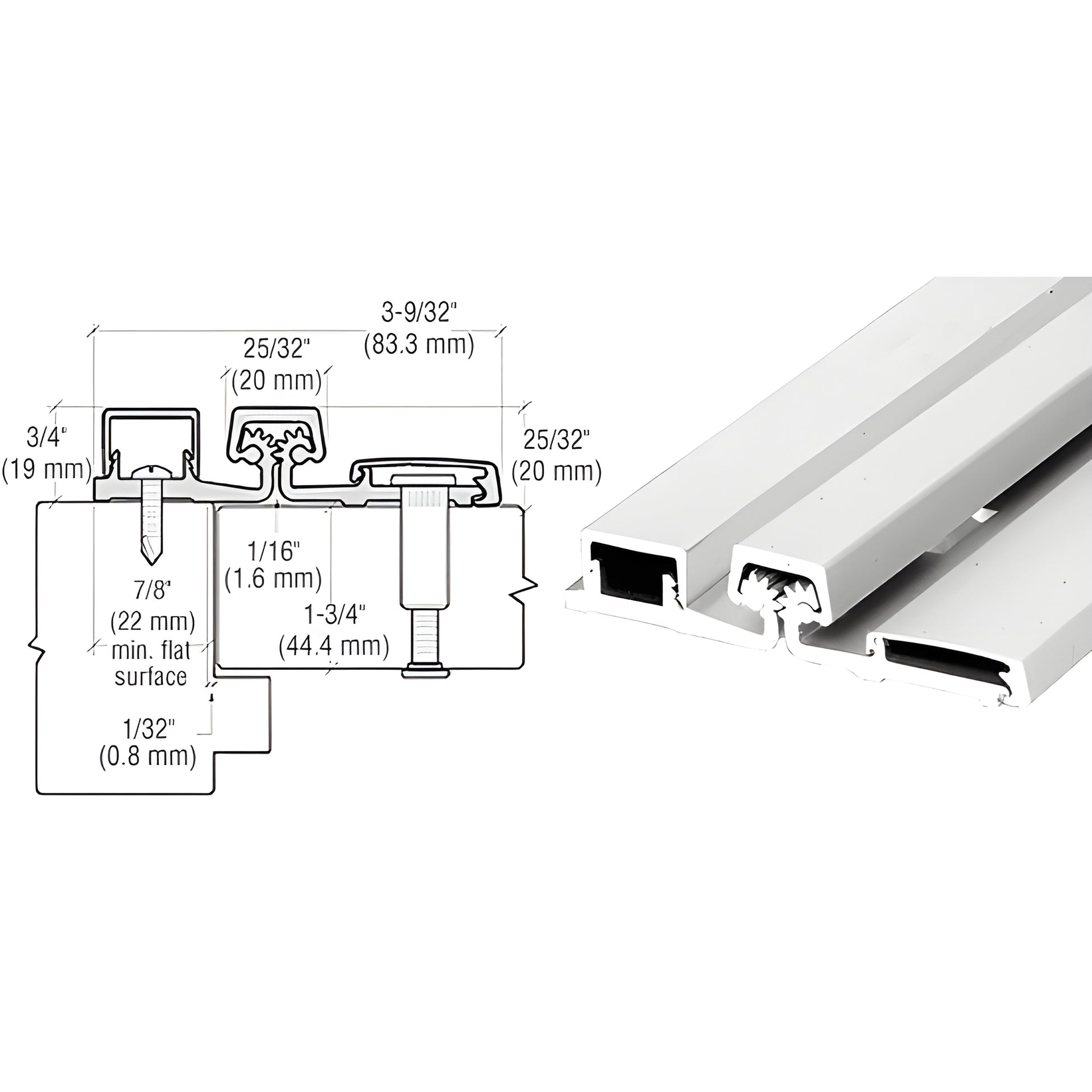

Width
3-9/32 in. (83.3 mm)
Overview
- Specified everywhere for long service life
- Straight hole pattern for consistent alignment
- Available in standard or heavy-duty models
- Standard duty hinges support doors up to 200 lbs (90 kg)
- Heavy-duty hinges support doors up to 600 lbs (272 kg)
CRL Roton Hinges are constructed from high-strength aluminum with a full-length rolling gear profile that aligns doors precisely from top to bottom. Special self-lubricating polyacetal load-bearing blocks provide smooth, low-friction operation—even on the heaviest doors. All mounting hardware is hidden for a clean appearance and secure installation. Easy-to-install with included instructions and necessary mounting hardware; replacement screw packs are also available. SKU: 15783A
Order CRL Roton Hinges (SKU 15783A) now to upgrade door performance and longevity.
Specifications
Templates
