CRL Dark Bronze Adjustable Delayed-Action Surface Door Closer 2-5

• ANSI A156.4 - Grade 1 door closer
• Adjustable spring power, multi-size range 1 to 5
• Larger footprint matches or covers existing hole patterns
• UL Listed

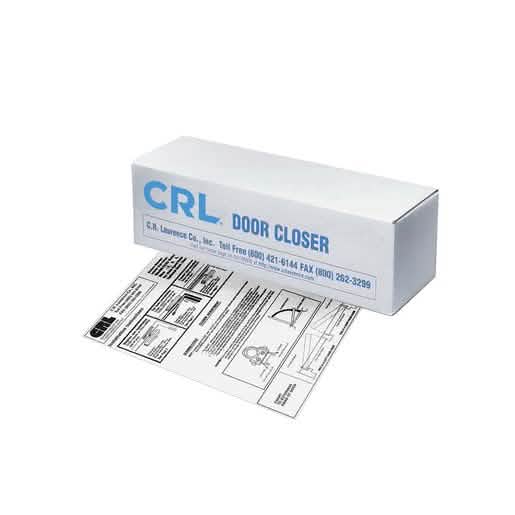

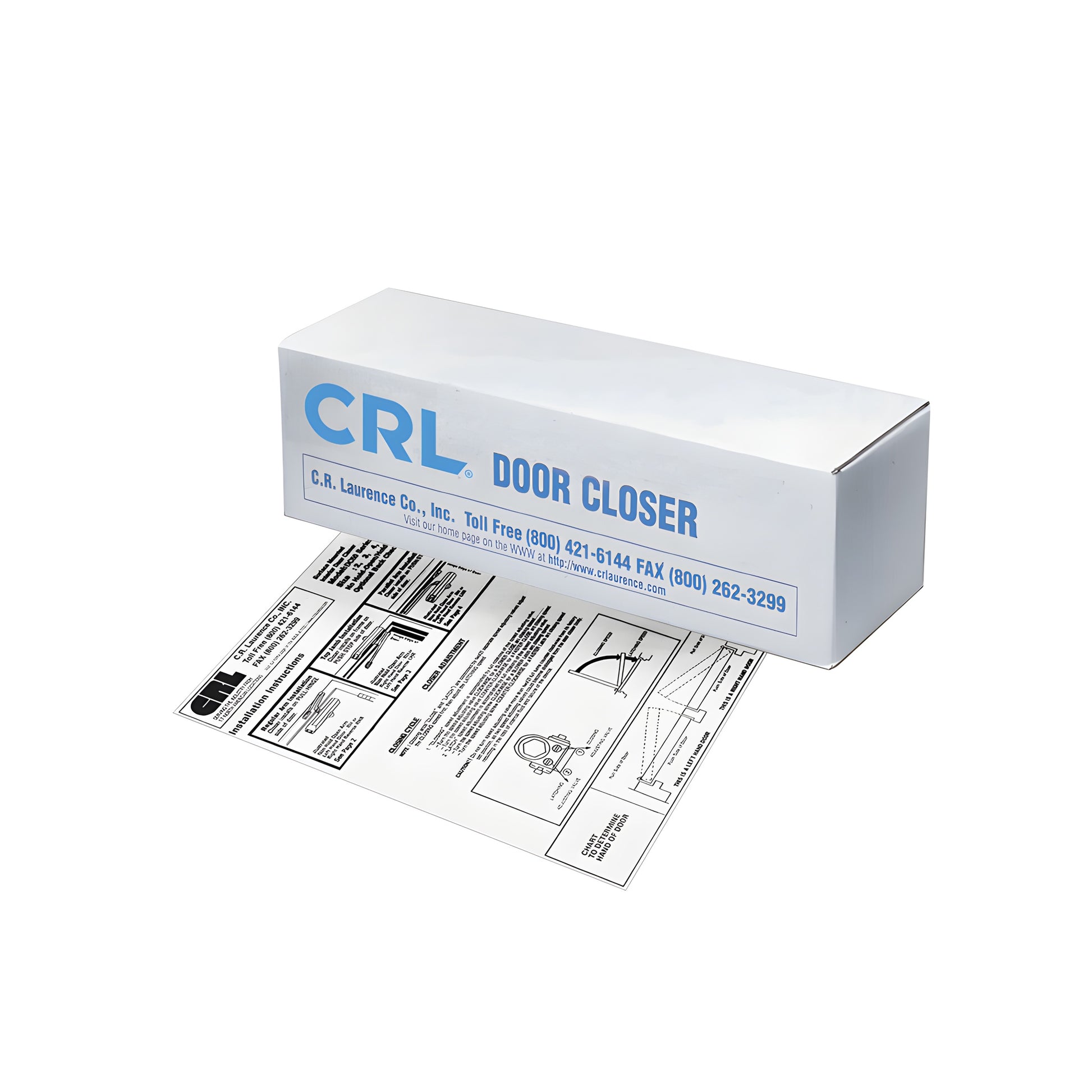

• Each PR50 Series closer ships with installation instructions

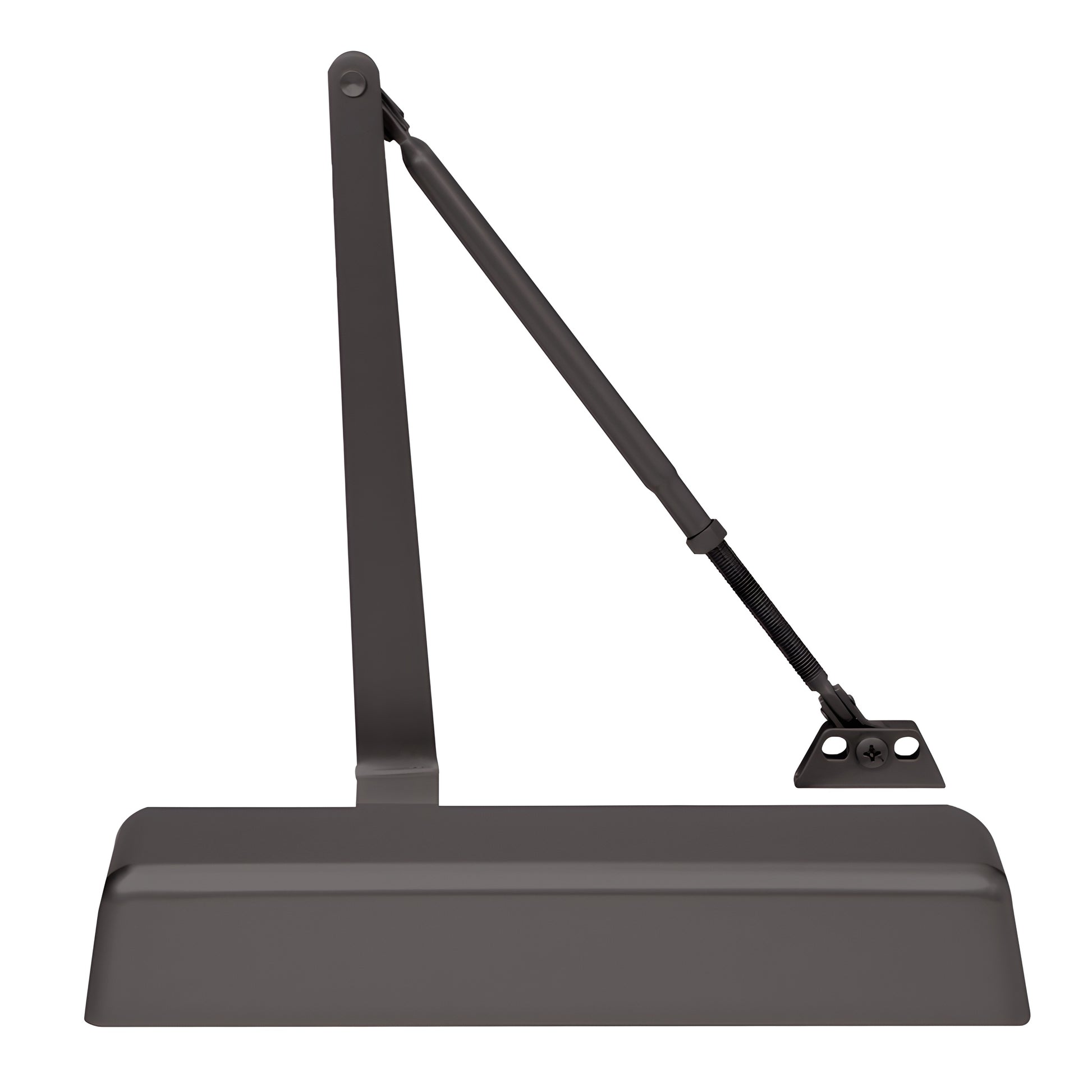

To meet demanding closer specifications and to match or cover existing hole patterns, consider the CRL PR50 Series Surface Mounted Door Closer (SKU: PR54DADU). This ANSI A156.4 Grade 1, multi-size adjustable spring power closer fits doors 24" to 54" (0.61 to 1.37 m) and door weights 33 to 264 lbs (15 to 120 kg). It’s an ideal choice for commercial and institutional applications requiring a heavy-duty, surface-mounted door closer with reliable performance and a larger mounting footprint.

The barrier-free (low opening resistance) Model PR50 provides adjustable control from Size 1 through 4—recommended for public buildings, airports, and shopping centers to meet ADA opening force requirements. The PR52 adjusts from Size 2 through 5 for heavier doors and higher traffic areas. The PR54DA model adds an adjustable Delayed Action feature—useful in health care facilities, hospitals, nursing homes, and public buildings where a surface mounted door closer with delayed action helps occupants pass through openings and supports ADA compliance.

Independent closing and latching speed controls allow precise adjustment. An adjustable backcheck reduces impact damage from doors violently swung open by wind or heavy traffic. PR50 Series closers are UL listed and backed by a ten-year warranty. Each unit includes parallel arm brackets and mounting hardware for regular, top-jamb, or parallel-arm installations. Optional accessories (drop plates, hold-open arms) are available for special installations.

Product Warning:

Closers set to comply with ADA opening force limits may not provide adequate spring power to control and fully close the door under certain site conditions or door sizes. Verify application suitability before final installation.

For pricing, availability, or technical support for SKU PR54DADU, contact CRL Customer Service or add this PR50 Series surface mounted door closer to your cart today.
