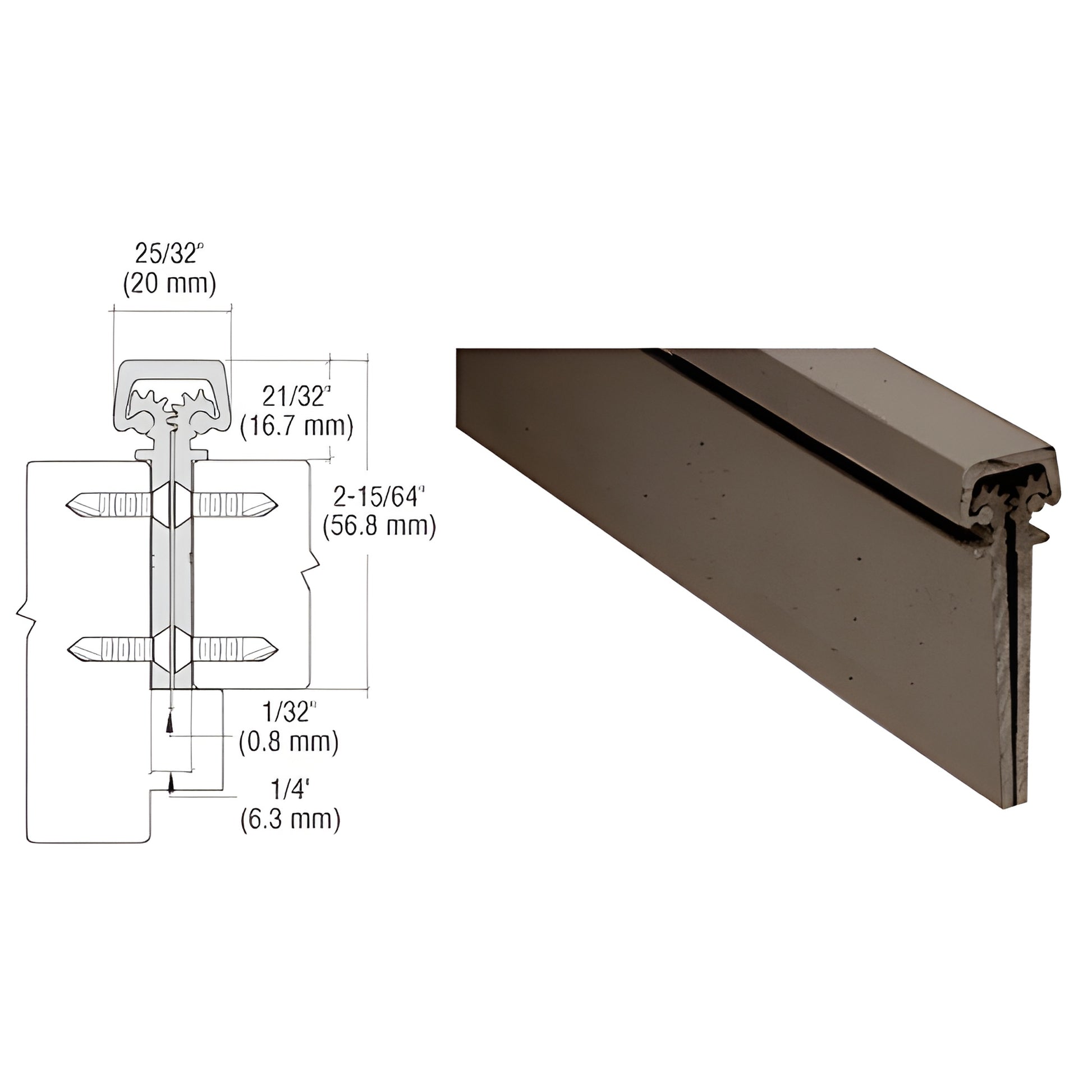

• CRL concealed continuous hinge, dark bronze anodized, 83" length, 2-15/64" width (SKU 30083DU)
1 1

CRL

CRL 300 Series 83-inch Dark Bronze Concealed Continuous Hinge Std Duty

CRL 300 Series 83-inch Dark Bronze Concealed Continuous Hinge Std Duty

$258.29 CAD
$258.29 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 30083DU
Shipping Weight: 7.63 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Dark Bronze
Includes
Pack of Screws
Length
83 in. (2108.2 mm)
Maximum Door Weight
200 lbs. (90.7 kg)
Replacement Screw Pack
RSP300DU
Series
300
Width
2-15/64 in. (56.8 mm)

Overview

  • Standard-Duty concealed continuous hinge for doors up to 200 lbs (90 kg)
  • Heavy-Duty concealed continuous hinge for doors up to 600 lbs (272 kg)
  • Available in satin anodized and dark bronze anodized finishes; stocked in 83" (2.11 m) lengths

These CRL Concealed Leaf Continuous Hinges (SKU 30083DU) feature load-bearing blocks spaced every 5-1/8" (130.2 mm) on the Standard-Duty model and every 2-9/16" (65.1 mm) on the Heavy-Duty model, providing consistent support along the full length of the door. Designed as concealed continuous hinges for smooth operation and even weight distribution, they are stocked in 83" (2.11 m) lengths and supplied with a pack of installation screws. Replacement screw packs are available separately. Ideal for high-traffic commercial and residential door applications where a low-profile, continuous hinge is required.
