CRL
CRL 300 Series Satin Anodized 83" Concealed Continuous Hinge Std Duty
CRL 300 Series Satin Anodized 83" Concealed Continuous Hinge Std Duty
Regular price
$239.54 CAD
Regular price
Sale price
$239.54 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 30083A
Shipping Weight: 7.63 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.63 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Satin Anodized
Includes
Pack of Screws
Length
83 in. (2108.2 mm)
Maximum Door Weight
200 lbs. (90.7 kg)
Replacement Screw Pack
RSP300A
Series
300
Width
2-15/64 in. (56.8 mm)
Overview
- Standard Duty concealed continuous hinge for doors up to 200 lbs (90 kg)
- Heavy-Duty concealed continuous hinge for doors up to 600 lbs (272 kg)
- Available in satin anodized and dark bronze anodized finishes

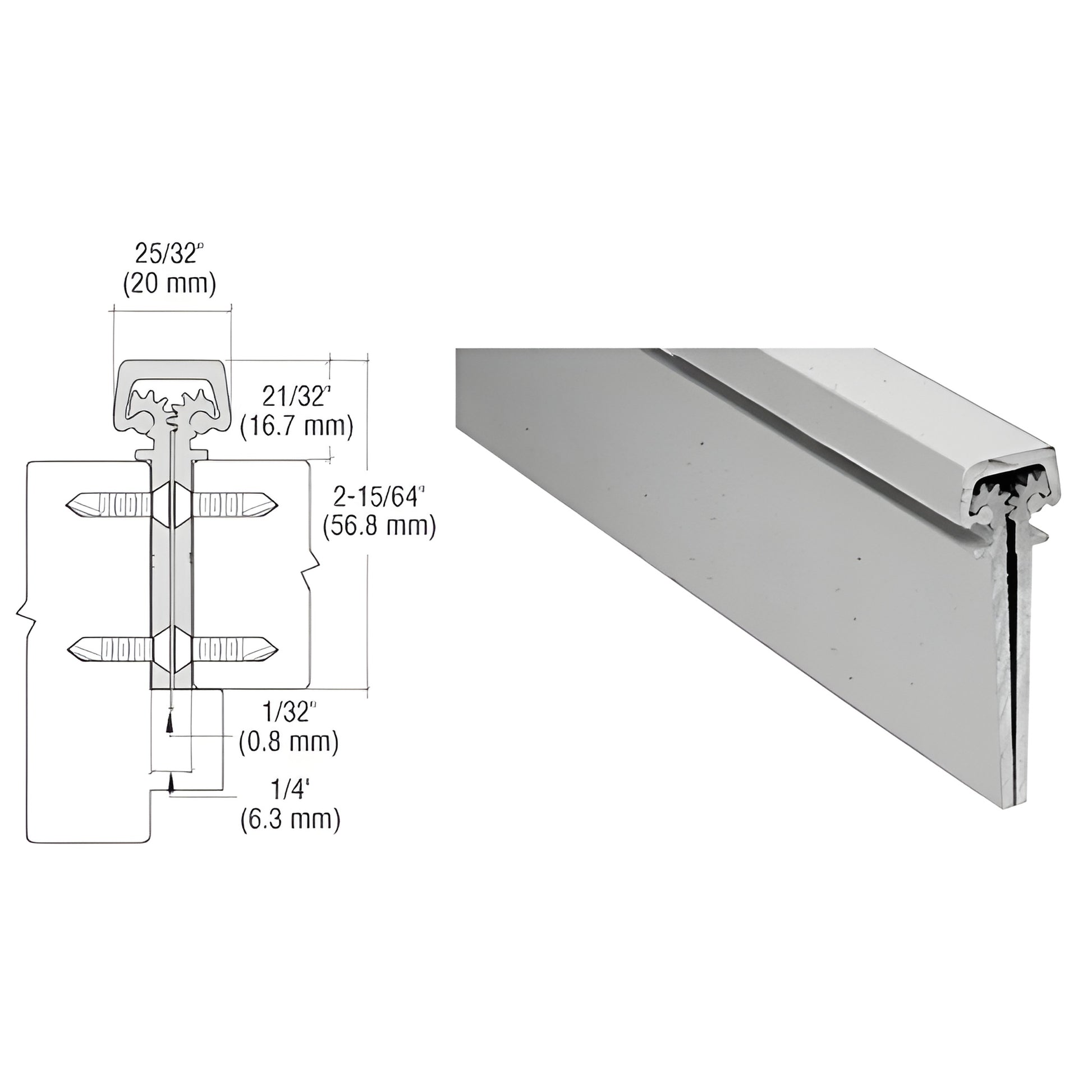

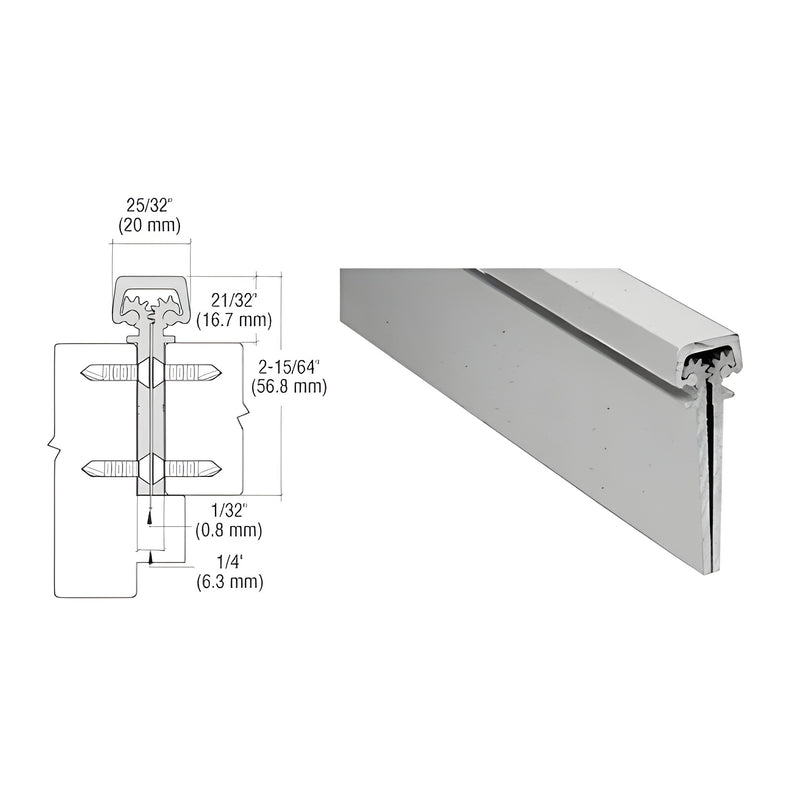

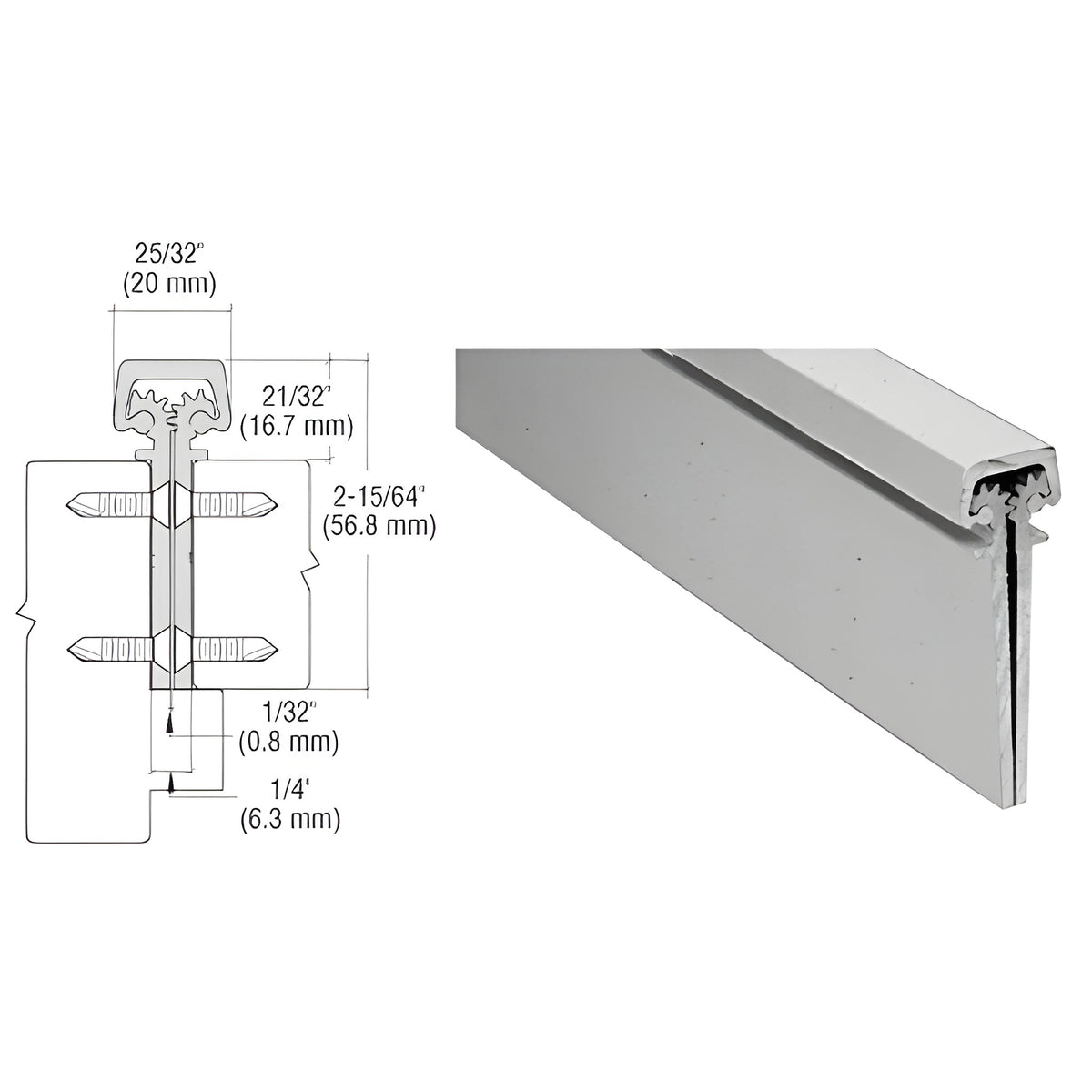

These CRL Concealed Leaf Continuous Hinges are engineered for commercial and residential doors requiring a low-profile, high-strength hidden hinge. Load-bearing blocks are spaced every 5-1/8" (130.2 mm) on the Standard Duty hinge and every 2-9/16" (65.1 mm) on the Heavy-Duty hinge for improved weight distribution and long service life. Stocked in 83" (2.11 m) lengths, each hinge ships with a pack of installation screws; replacement screw packs are available separately. SKU: 30083A.
Order CRL concealed continuous hinges (SKU 30083A) today for reliable, hidden support on high-load doors.
Specifications
Installation Instructions
