CRL Roton 053 83" Dark Bronze Anodized Half-Surface Continuous Hinge
CRL Roton 053 83" Dark Bronze Anodized Half-Surface Continuous Hinge
Regular price
$774.91 CAD
Regular price
Sale price
$774.91 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 05383DU
Shipping Weight: 9.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.25 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Dark Bronze
Includes
Installations Screws
Length
83 in. (2108.2 mm)
Material
Aluminum
Maximum Door Weight
200 lbs. (90.7 kg)
Replacement Screw Pack
32357DU
Series
Roton 053
Width
2-3/16 in. (55.6 mm)
Overview
- Standard-duty continuous hinge for doors up to 200 lbs (90 kg)
- Available in satin anodized and dark bronze anodized finishes

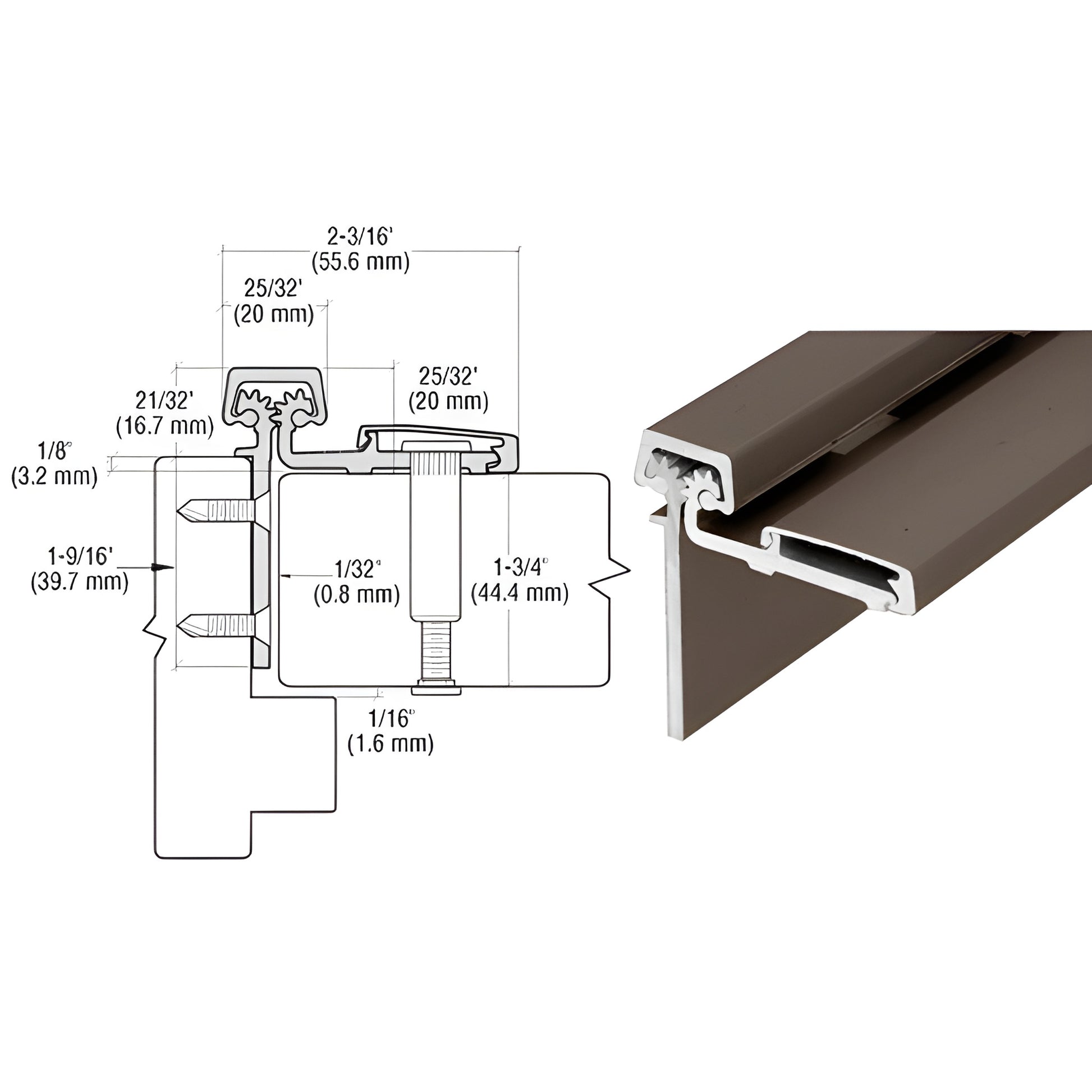

These CRL Roton Half Surface Continuous Hinges (SKU 05383DU) feature load-bearing blocks every 5-1/8" (130 mm) and a half-surface design with surface-mount attachment to the door and concealed attachment to the jamb. Stocked lengths: 83" (2.1 m) and 95" (2.4 m). A pack of installation screws is included with each hinge; replacement screw packs are available separately. Ideal as a commercial-grade continuous hinge for interior and exterior doors requiring even load distribution and long service life.
Order SKU 05383DU or contact CRL Customer Service for help with specifications and shipping.
