CRL Roton 053 83in Satin Anodized Half-Surface Continuous Door Hinge
CRL Roton 053 83in Satin Anodized Half-Surface Continuous Door Hinge
Regular price
$564.22 CAD
Regular price
Sale price
$564.22 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 05383A
Shipping Weight: 9.16 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.16 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Satin Anodized
Includes
Installations Screws
Length
83 in. (2108.2 mm)
Material
Aluminum
Maximum Door Weight
200 lbs. (90.7 kg)
Replacement Screw Pack
94875SA
Series
Roton 053
Width
2-3/16 in. (55.6 mm)
Overview
- Standard-duty continuous hinge for doors up to 200 lbs (90 kg)
- Straight hole pattern for easy installation
- Finishes: Satin Anodized and Dark Bronze Anodized

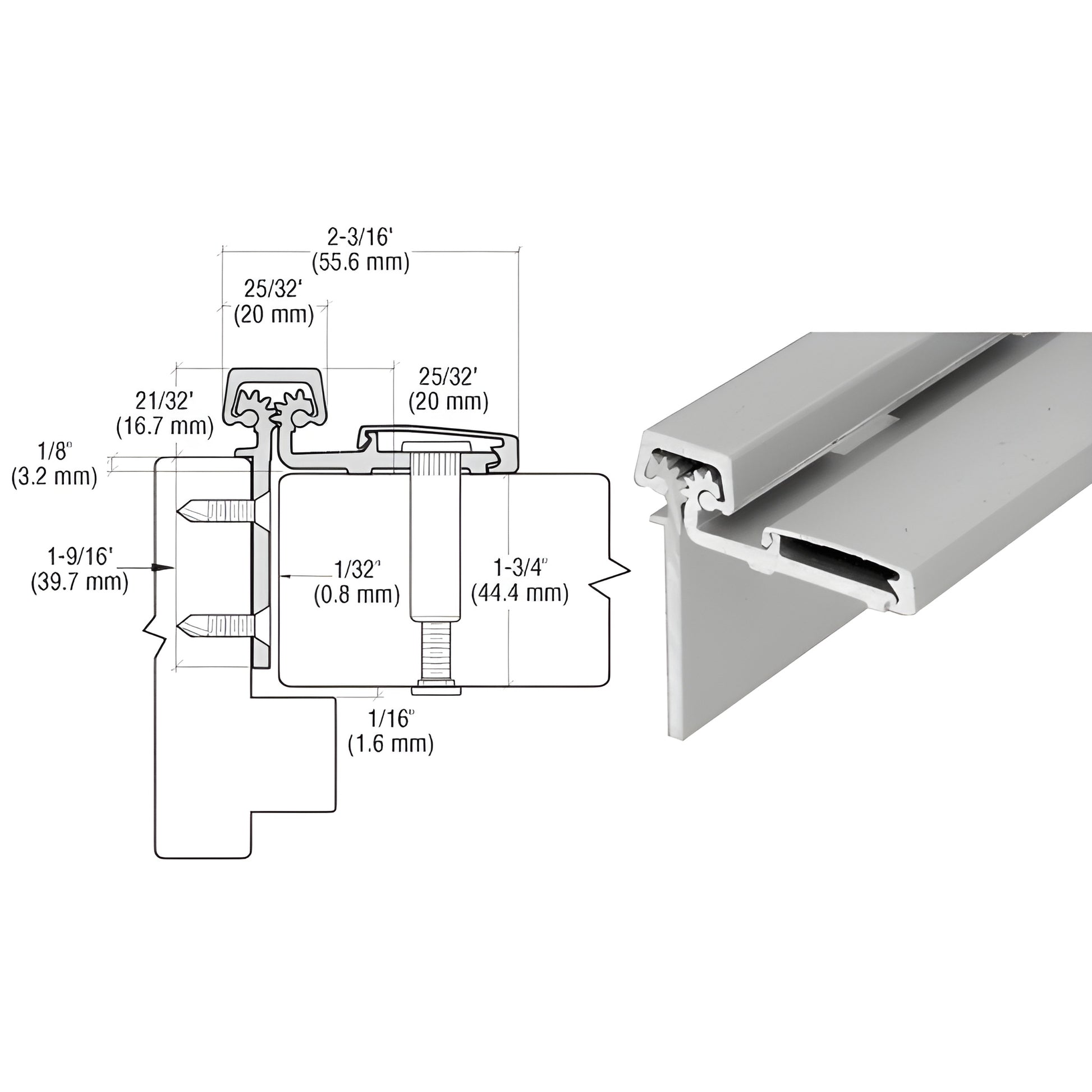

These CRL Roton Half Surface Continuous Hinges (SKU 05383A) feature load-bearing blocks every 5-1/8" (130 mm) for consistent weight distribution and smooth operation. Designed for a surface mount to the door and a concealed mount to the jamb, they provide a clean aesthetic and reliable performance for commercial and residential applications. Stocked in 83" (2.1 m) and 95" (2.4 m) lengths; a pack of installation screws is included with each hinge. Replacement screw packs are available separately.
Purchase SKU 05383A now to equip doors with a durable half-surface continuous hinge—order today.
Specifications
Templates
