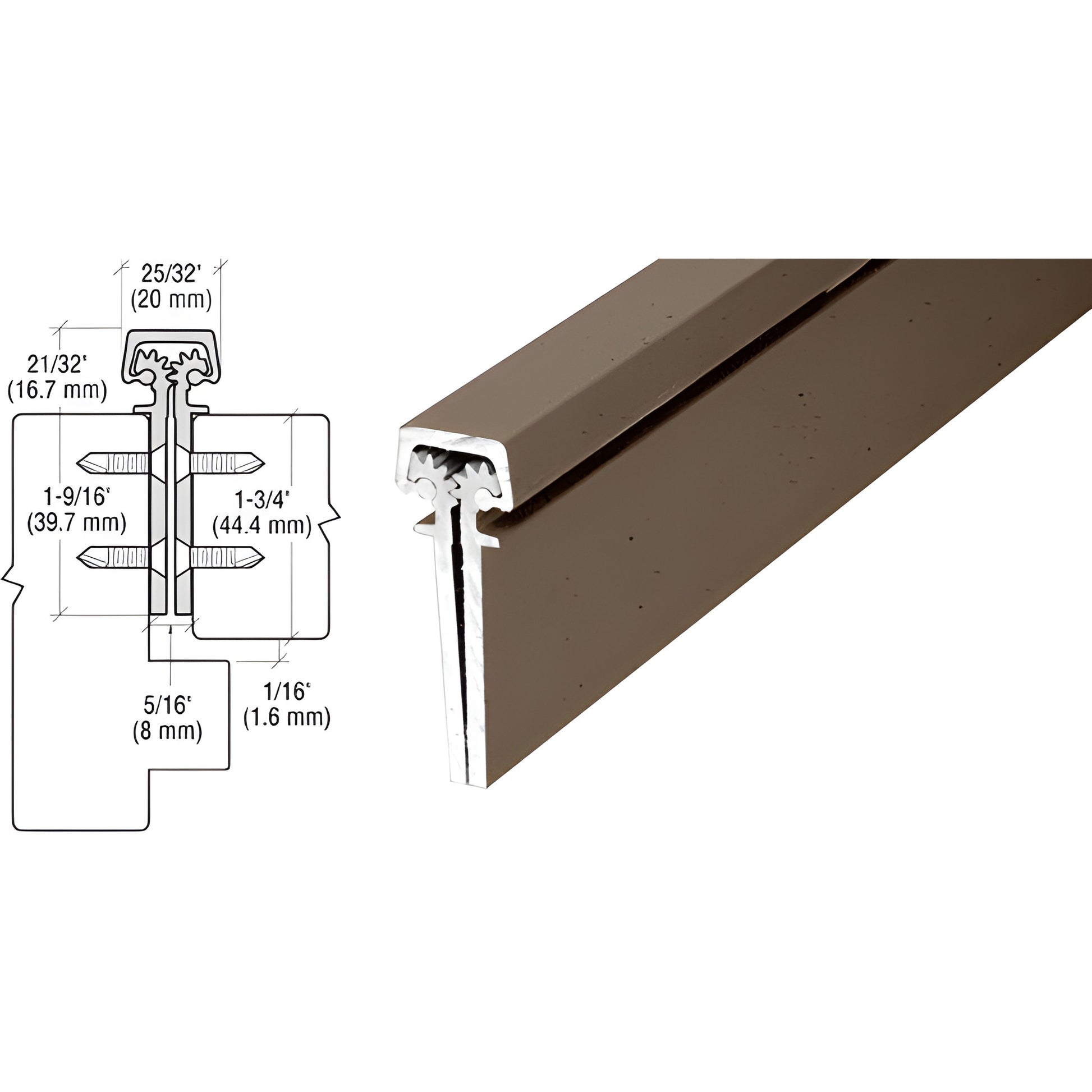

CRL Roton 112 Concealed Continuous Door Hinge 83in Dark Bronze
CRL Roton 112 Concealed Continuous Door Hinge 83in Dark Bronze
Regular price
$445.89 CAD
Regular price
Sale price
$445.89 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 11283DU
Shipping Weight: 7.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.8 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Dark Bronze
Includes
Installations Screws
Length
83 in. (2108.2 mm)
Material
Aluminum
Maximum Door Weight
200 lbs. (90.7 kg)
Replacement Screw Pack
61815DU
Series
Roton 112
Width
25/32 in. (19.8 mm)
Overview
- Standard Duty hinge for doors up to 200 lbs (90 kg)
- Heavy-Duty hinge for doors up to 600 lbs (272 kg)
- Straight hole pattern
- Finishes: Satin Anodized and Dark Bronze Anodized
- Stocked in 83" (2.1 m) lengths
These CRL Roton Concealed Leaf Continuous Hinges (SKU 11283DU) are engineered for 1-3/8" (35 mm) doors and deliver a hidden, continuous hinge solution ideal for commercial and residential applications requiring a clean aesthetic and durable performance. Load-bearing blocks are spaced every 5-1/8" (130 mm) on the Standard Duty hinge and every 2-9/16" (65 mm) on the Heavy-Duty hinge for reliable weight support. Each hinge ships with a pack of installation screws; replacement screw packs are available separately.
Why choose Roton concealed continuous hinges? Concealed leaf design, continuous load distribution, and long 83" lengths make these hinges a top choice for heavy-use doors and finish-matching projects. Order SKU 11283DU today.
