CRL Roton 112 83" Satin Anodized Concealed Continuous Door Hinge
CRL Roton 112 83" Satin Anodized Concealed Continuous Door Hinge
Regular price
$344.88 CAD
Regular price
Sale price
$344.88 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 11283A
Shipping Weight: 7.9 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.9 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Satin Anodized
Includes
Installations Screws
Length
83 in. (2108.2 mm)
Material
Aluminum
Maximum Door Weight
200 lbs. (90.7 kg)
Replacement Screw Pack
61362SA
Series
Roton 112
Width
25/32 in. (19.8 mm)
Overview
- Standard Duty: supports doors up to 200 lbs (90 kg)
- Heavy Duty: supports doors up to 600 lbs (272 kg)
- Straight hole pattern
- Finishes: Satin Anodized and Dark Bronze Anodized

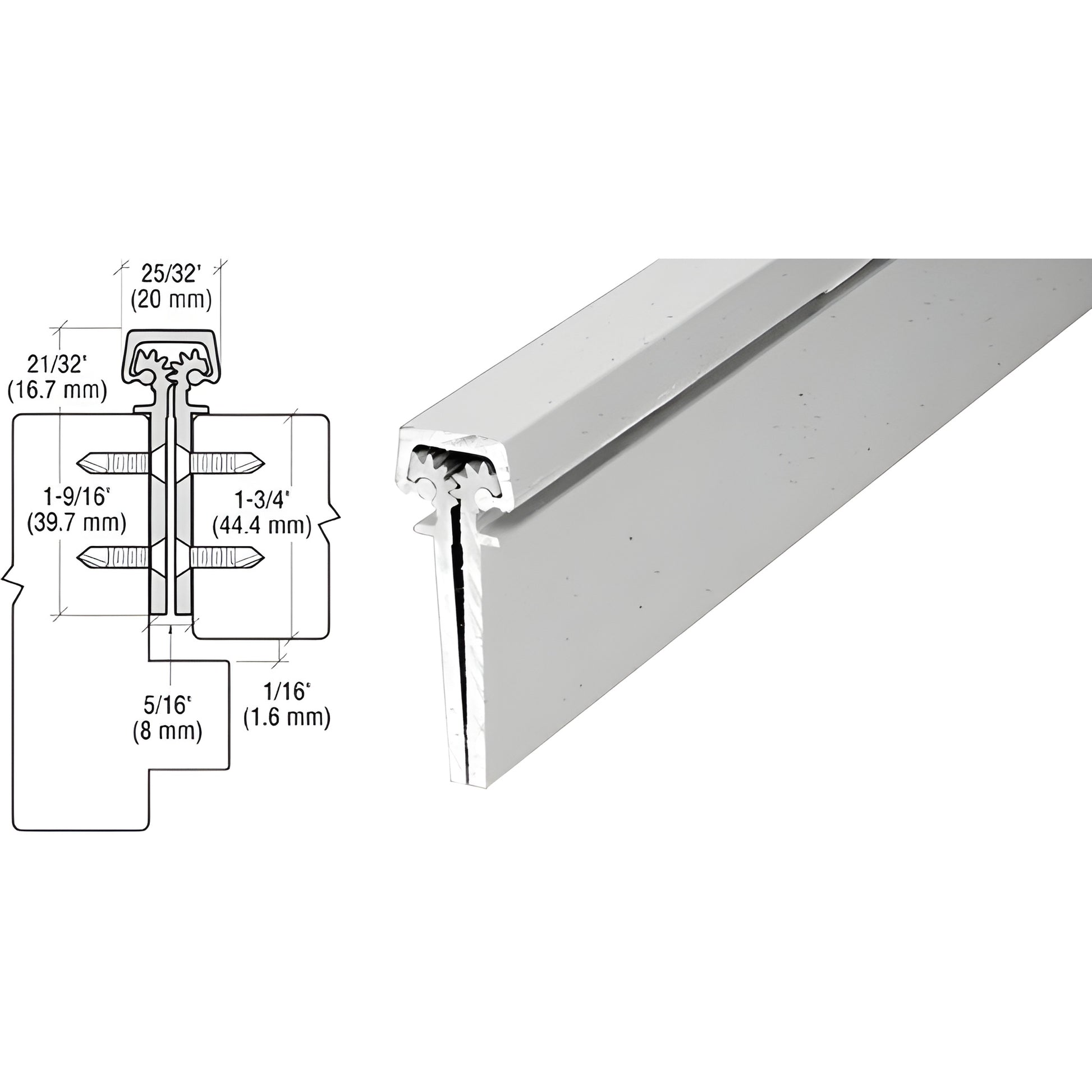

These CRL Roton Concealed Leaf Continuous Hinges for 1-3/8" (35 mm) doors feature load-bearing blocks every 5-1/8" (130 mm) on the Standard Duty hinge and every 2-9/16" (65 mm) on the Heavy Duty hinge. Stocked in 83" (2.1 m) lengths, each hinge includes a pack of installation screws; replacement screw packs are available separately. SKU: 11283A — ideal when you need a concealed continuous hinge with frequent load-bearing points and long, ready-to-cut lengths.
Specifications
Templates
