CRL Roton 210 83" Dark Bronze Std-Duty Anodized Door Hinge
CRL Roton 210 83" Dark Bronze Std-Duty Anodized Door Hinge
Regular price
$715.74 CAD
Regular price
Sale price
$715.74 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21083DU
Shipping Weight: 11.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Brand
Roton
Finish/Color
Dark Bronze
Includes
Installations Screws
Length
83 in. (2108.2 mm)
Material
Aluminum
Maximum Door Weight
200 lbs. (90.7 kg)
Replacement Screw Pack
29815DU
Series
Roton 210
Width
3-3/16 in. (81 mm)
Overview
- Specified everywhere for long service life
- Straight hole pattern for consistent mounting
- Available in standard or heavy-duty models
- Standard duty for doors up to 200 lbs (90 kg)
- Heavy-duty for doors up to 600 lbs (272 kg)

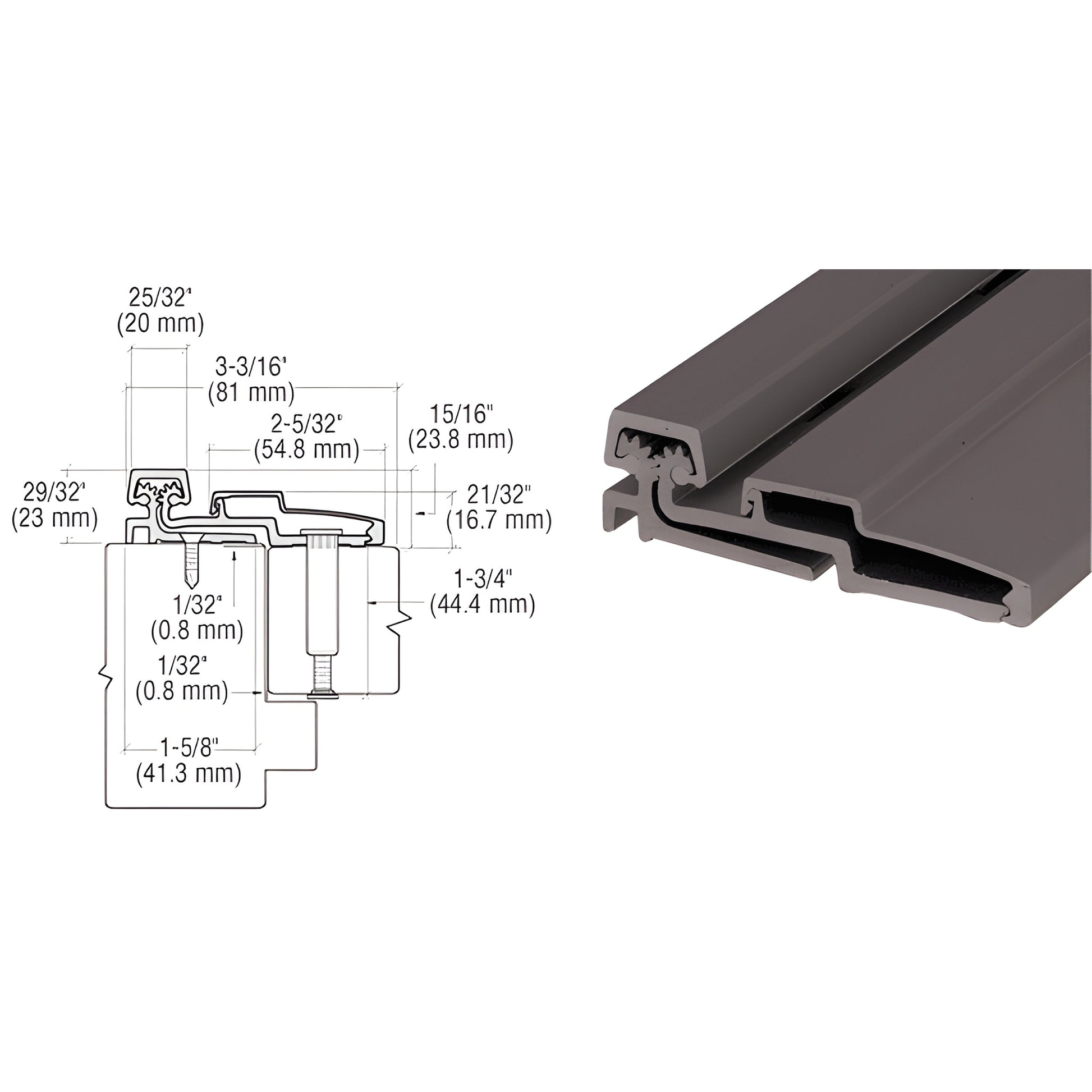

CRL Standard Duty Full Surface Roton Hinges are high-strength aluminum full-surface roton hinges with a continuous rolling gear profile to align doors perfectly from top to bottom. Self-lubricating polyacetal load-bearing blocks provide smooth, near-floating operation—even on very heavy doors. All mounting hardware is concealed when installed for a clean, secure appearance. These easy-to-install aluminum roton hinges include instructions and all necessary hardware. Available finishes: clear satin anodized or dark bronze duranodic. Stocked lengths: 83" and 95" (2108 and 2413 mm). Replacement screw packs available.
SKU: 21083DU
Choose long-lasting, low-maintenance full surface roton hinges for reliable door alignment—order SKU 21083DU or contact CRL Customer Service to buy.
