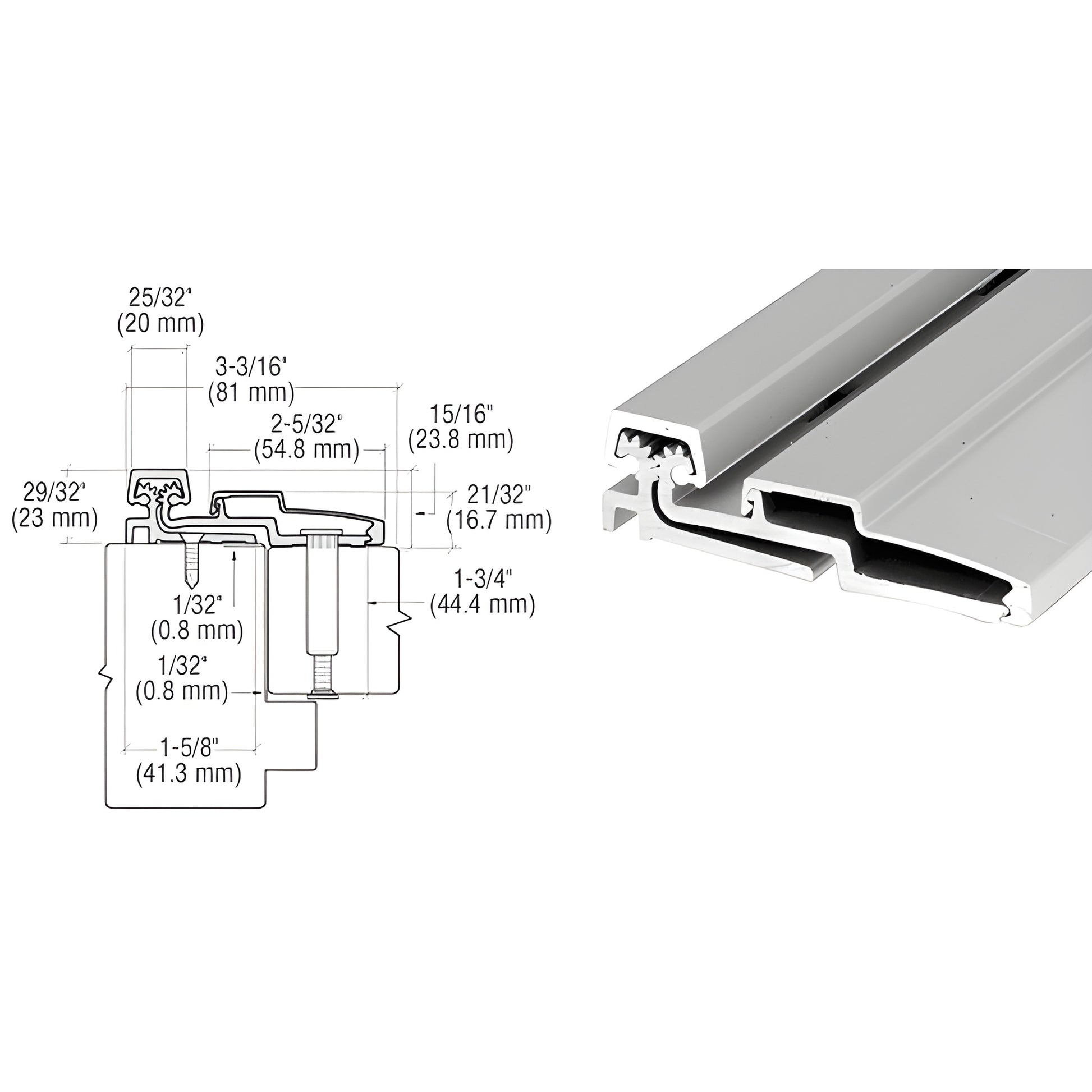

CRL Satin Anodized 83" Roton 210 Series Standard Duty Full Surface Hinge
Item# 21083A
Shipping Weight: 10.55
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.55
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
- BrandRoton
- Finish/Color:Satin Anodized
- IncludesInstallations Screws
- Length83 in. (2108.2 mm)
- MaterialAluminum
- Maximum Door Weight200 lbs. (90.7 kg)
- Replacement Screw Pack26469SA
- SeriesRoton 210
- Width3-3/16 in. (81 mm)
- Specified Everywhere Because of Their Long Service Life
- Straight Hole Pattern
- Available in Standard or Heavy-Duty Models
- Standard Duty Hinges for Doors Weighing Up to 200 Lbs. (90 kg)
- Heavy-Duty Hinges for Doors Weighing Up to 600 Lbs. (272 kg)
CRL Standard Duty Full Surface Roton Hinges are made of high strength aluminum with a full length rolling gear profile to align doors perfectly from top to bottom. Special self-lubricating polyacetal load bearing blocks deliver smooth, almost floating operation on even the heaviest doors. Hinges are completely secure because all mounting hardware is hidden when installed. Hinges are easy-to-install and come with instructions and all necessary hardware for mounting. Available in clear satin anodized or dark bronze duranodic finishes. These Standard Duty Hinges are stocked in lengths of 83" and 95" (2.11 and 2.41 mm). Replacement Screw Packs are also available.
Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Templates
