CRL

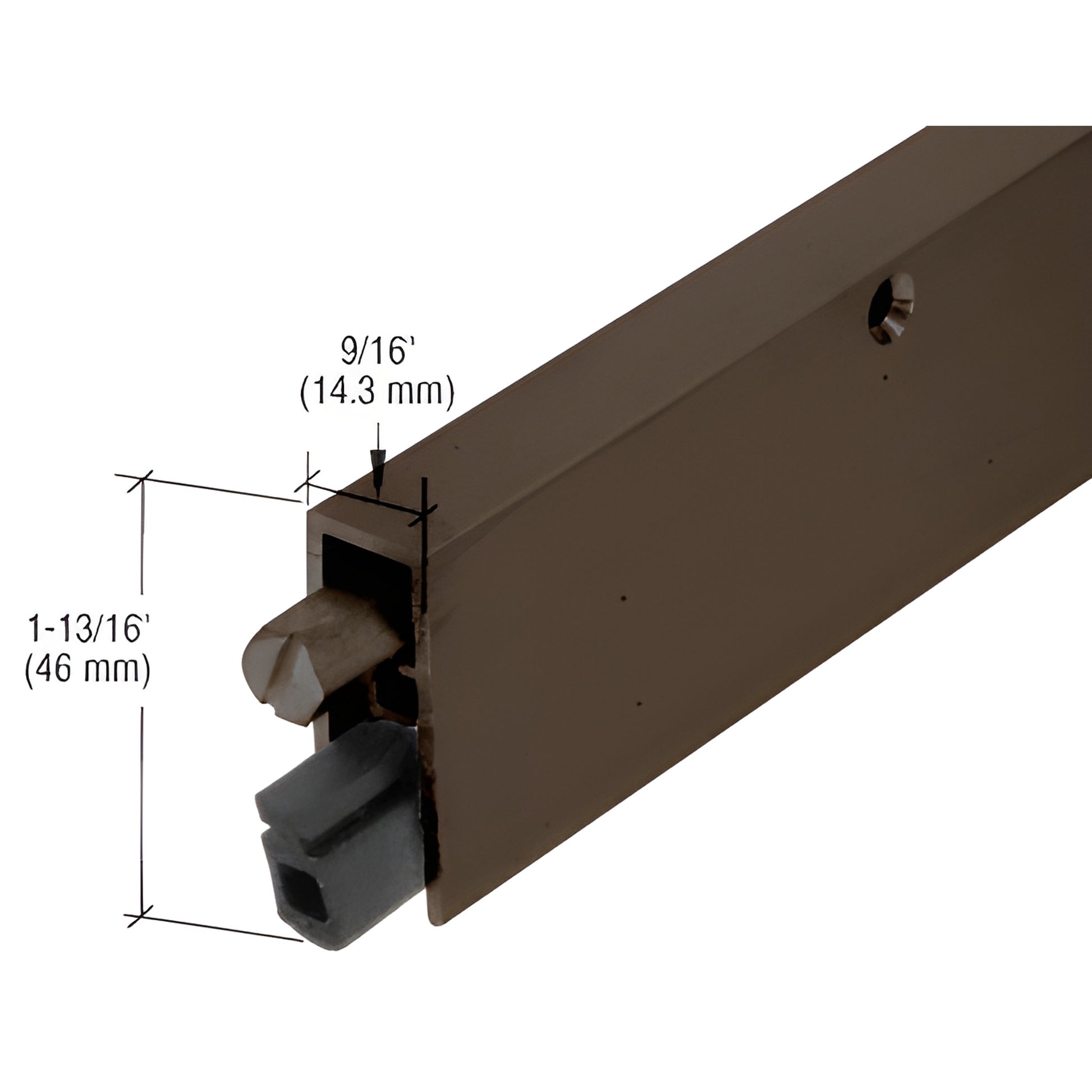

CRL Dark Bronze Anodized Medium-Duty Automatic Door Bottom Seal 36"
CRL Dark Bronze Anodized Medium-Duty Automatic Door Bottom Seal 36"
Regular price
$225.10 CAD
Regular price
Sale price
$225.10 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DB035DV36
Shipping Weight: 1.48 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.48 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Dark Bronze
Fits Door Opening Size
36
Length
36-1/2
Material
Aluminum
Overall Height
1-13/16
Sweep Type
Automatic
Overview
- Ideal for use with carpeted interiors
- Field reversible for left or right hand doors
CRL Commercial Medium-Duty Automatic Door Bottom (SKU: DB035DV36) — mechanically actuated automatic door bottom designed for carpeted interiors. An internal carrier bar with a durable vinyl insert drops from a concealed cavity to form a tight seal between the door bottom and threshold. The unit includes a frame "actuator" protector plate and is field reversible to fit either hand of door.
Key differentiators: concealed cavity for a clean appearance, vinyl insert for durable sealing on carpeted floors, and an adjustable threaded hex plunger to fine-tune seal pressure against the sill. This medium-duty automatic door bottom is ideal for commercial interior doors where the bottom must retract over carpeting without dragging.
Installation note: actuation of the internal drop-down bar functions correctly only when installed on the door. Hand testing before installation may only drop the back of the bar. Proper operation occurs when the back edge (near the hinge side) contacts the sill, then the front edge will drop to create the seal. Once contact is made, back out the threaded hex plunger to increase seal pressure as needed.
Order SKU DB035DV36 today to add a reliable, adjustable automatic door bottom optimized for carpeted commercial interiors.
