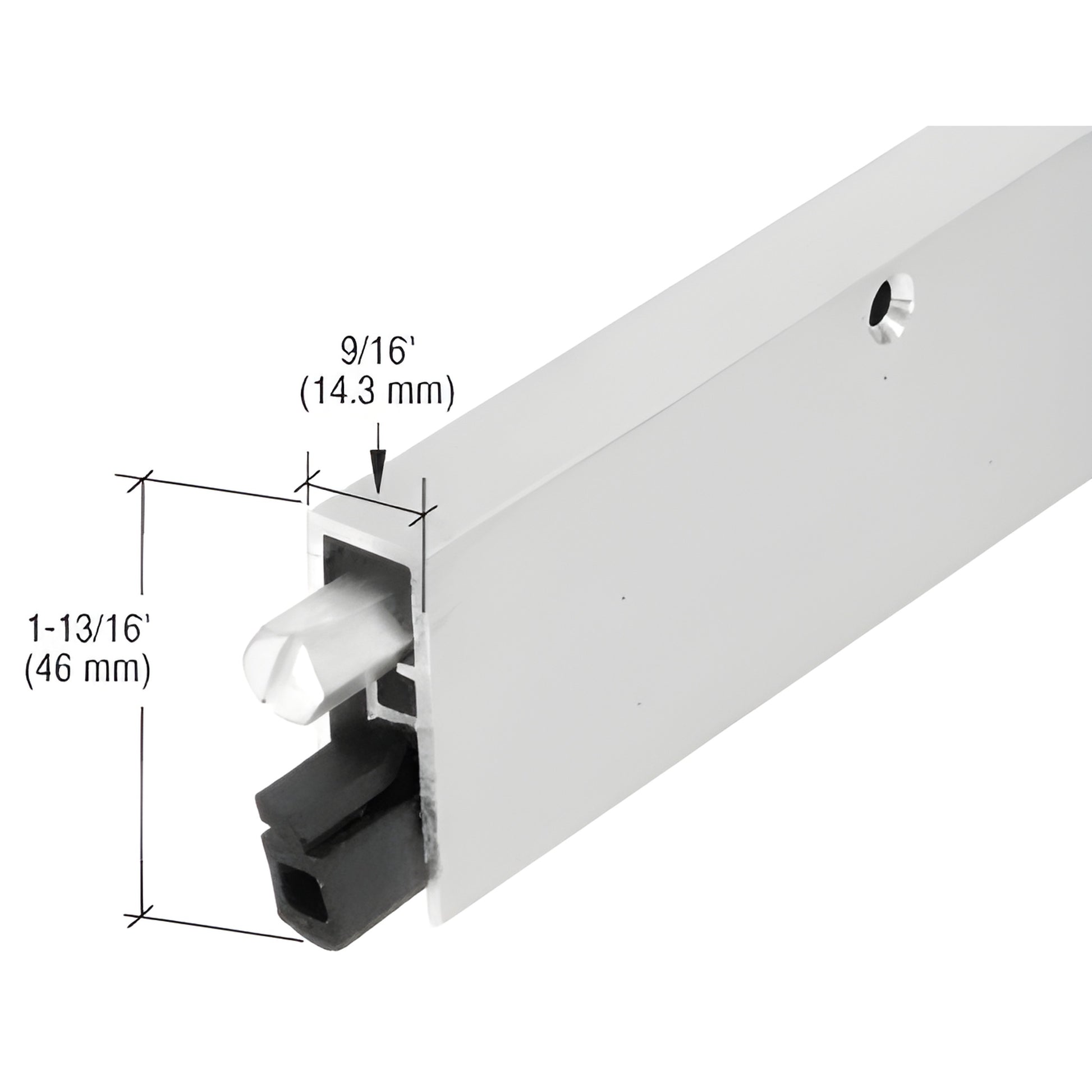

CRL Aluminum Automatic Door Bottom Seal, Medium-Duty, 36-inch
CRL Aluminum Automatic Door Bottom Seal, Medium-Duty, 36-inch
Regular price
$189.02 CAD
Regular price
Sale price
$189.02 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DB035CV36
Shipping Weight: 1.48 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.48 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Aluminum
Fits Door Opening Size
36
Length
36-1/2
Material
Aluminum
Overall Height
1-13/16
Sweep Type
Automatic
Overview
- Ideal for use with carpeted interiors — retracts over carpet
- Field reversible for right- or left-hand doors
This CRL Commercial Medium-Duty Automatic Door Bottom (SKU: DB035CV36) is a mechanically actuated automatic door bottom designed to create a tight seal between the door base and threshold. An internal carrier bar with a durable vinyl insert drops from a concealed cavity to form a continuous seal, then retracts when the door opens — making it especially suitable for carpeted interiors. Supplied with a frame "actuator" protector plate, the unit is field reversible for either hand of door.
The inner drop-down bar functions correctly only when installed on the door: the back edge (near the hinge side) must contact the sill first, then the front edge will drop to complete the seal. After installation, adjust the threaded hex plunger by backing it out to increase seal pressure against the sill for improved soundproofing and draft control.
