CRL Dark Bronze Anodized Shallow Division Bar Shower Door w/ Vinyl
Item# DB27522
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Dark Bronze Anodized
Height
1-1/4
Includes
Vinyl and Screws
Length
24
Material
Extruded Aluminum
Screw Size
1/4-20 x 1-3/16"
Width
1-3/4
- Available in Clear Anodized and Dark Bronze finishes
- Supplied with glazing vinyl and 20 each 1/4-20 x 1-3/16" Pan Head Phillips machine screws
- Back bar is punched 12" (305 mm) on center for fast, consistent anchoring

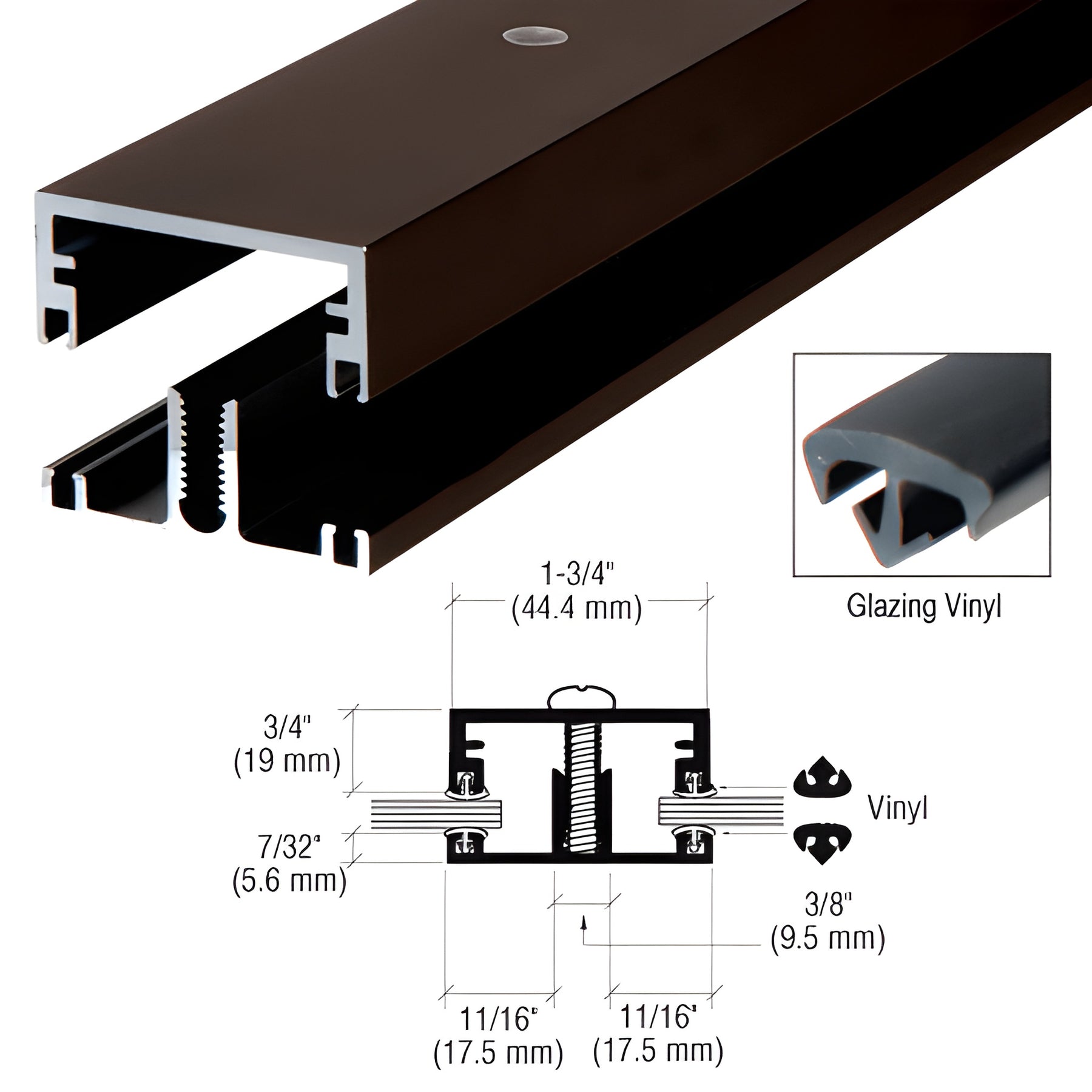

CRL Shallow Division Bar (SKU: DB27522) is a lightweight, extruded aluminum division bar with included glazing vinyl designed for small fixed window units. Use vertically or horizontally to create clean sightlines and secure glass or infill panels. The assembly consists of an extruded face member with a threaded spline to accept exposed fasteners and a back member with pre-drilled holes; the two members are screwed together after the glazing infill is installed. Each piece includes 100' (30.5 m) of glazing vinyl and the 20 machine screws listed above.
Product Warning:
Must ship common carrier if over 98" (2.49 m) length.
Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, contact CRL Customer Service before submitting your order. Product images are of the actual product or a close representation; colors can vary with monitor settings.
