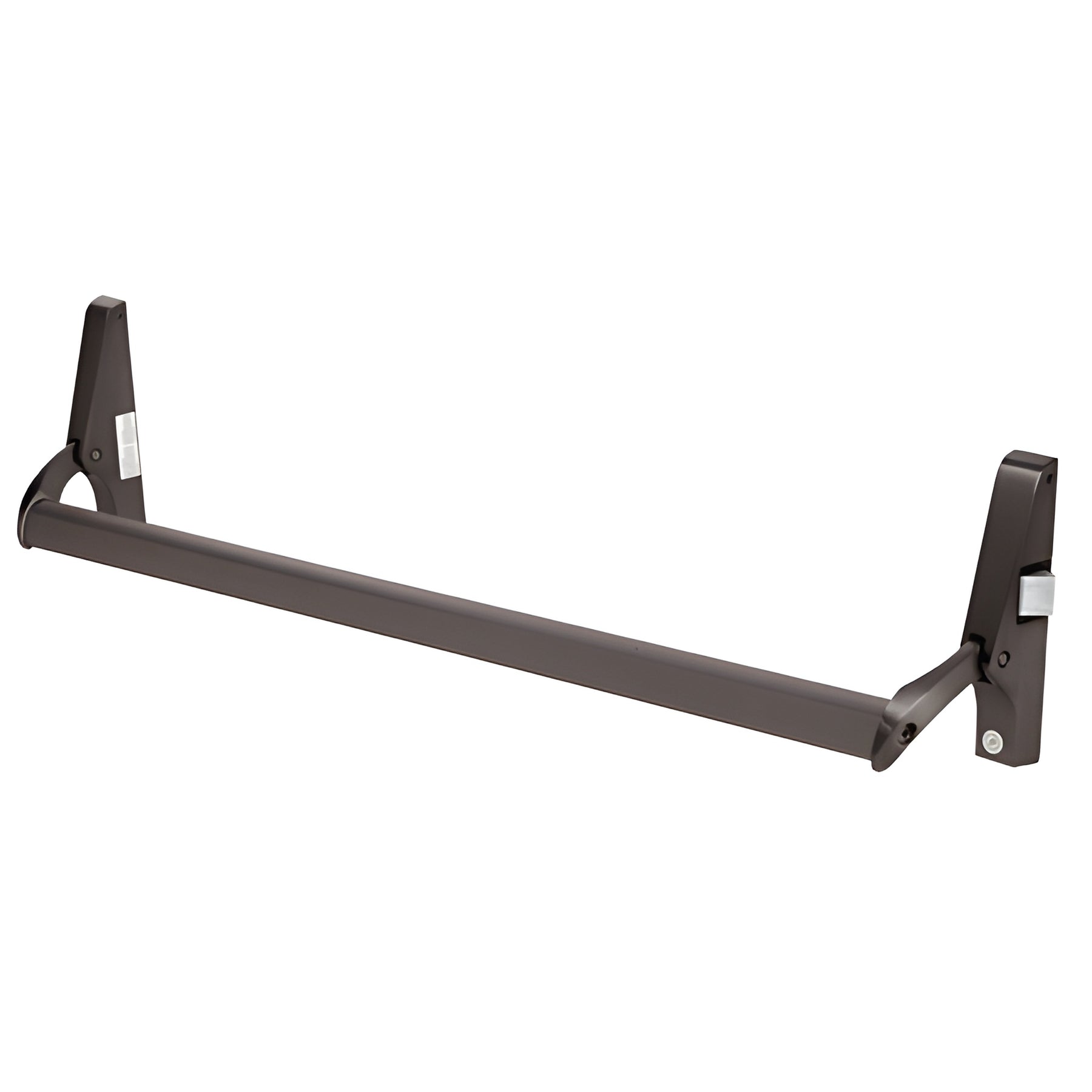

CRL Dark Bronze Panic Exit Bar - Right-Hand Reverse Bevel Rim

• Available as Concealed Vertical Rod and Rim Exit Devices
• 42" (1.07 m) cross bar can be cut-to-size
• For use with narrow, medium, and wide stile aluminum doors or hollow metal doors
• Two standard architectural finishes

CRL's DL1190 Series Cross Bar Panic Exit Devices (SKU: DL1190RHRDU) combine simplicity and durability. This proven cross bar panic exit device provides an economical solution for both security and life-safety requirements. Choose Rim or Concealed Vertical Rod configurations; the 42" (1.07 m) cross bar is field-cuttable to fit custom door sizes, making it ideal for retrofit and new construction on aluminum and hollow metal doors.

DL1190 Series Rim Panics
• Handed, non-reversible
• For use with aluminum or hollow metal doors
• Standard surface-mounted roller-type rim strike supplied
• Keyed entry requires optional CRL DL911SC series rim cylinder (no mounting pad required)

Product Warning:

This Rim Exit Device is handed. Handing is determined from the OUTSIDE (lock side) of the door. When outside, if the hinge is on the left and the door swings out (towards you), the panic device needs to be a LHRB (Left Hand Reverse Bevel). If the hinge is on the right and the door swings out (towards you), the panic device needs to be a RHRB (Right Hand Reverse Bevel).

For pricing, finish availability, or to confirm handing and compatibility with your door stile, contact CRL or add the DL1190RHRDU to your cart to get started.
