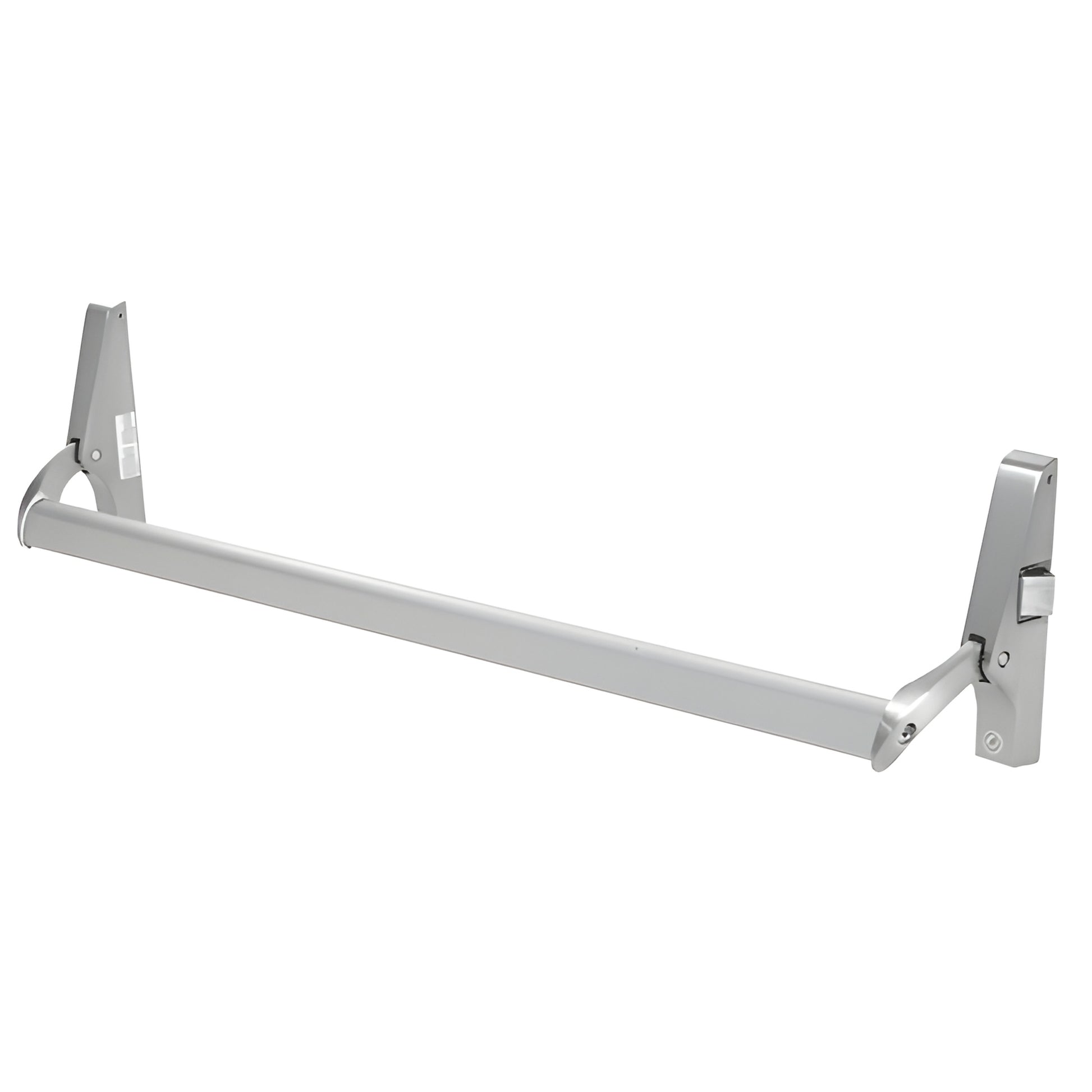

CRL Satin Aluminum Cross Bar Panic Exit Device - Right Hand Reverse Bevel Rim
CRL Satin Aluminum Cross Bar Panic Exit Device - Right Hand Reverse Bevel Rim
Regular price
$191.30 CAD
Regular price
Sale price
$191.30 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DL1190RHRA
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 4.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Certification ANSI A | 156.3 Grade 1 |
| Door Thickness | 1-3/4 |
| Door Width | 48 |
| Door Width Range | 30-36 |
| Field | Sizeable Yes |
| Finish/Color | Satin Aluminum |
| Handing | Non Handed |
| Includes | Mounting Hardware |
| Material | Aluminum |
| Minimum Stile Width | 1-3/4 |
| Model DL | 1190 |
| Panic Bar Base Height | 2 |
| Panic Bar Projection | 4-5/8 |
| Panic Bar Width Net | 48 |
| Panic | Dogging Screw Driver |
| Panic Head Base Width | 1-1/4 |
| Panic Head Height | 7-5/16 |
| Panic | Type Surface Vertical Rods |
| Recommended | Door Type Aluminum, Wood, Hollow Metal |
| Replacement Parts DL | 911SCKDA, DL911SCKAA, 30821J628 |
| Similar | 311095RC4628 |
| U | L Listed Yes |
Overview
CRL's DL1190 Series Cross Bar Panic Exit Devices offer a perfect blend of simplicity and durability, making them an economical choice for ensuring both security and life safety.
Available in both Concealed Vertical Rod and Rim Exit Device options, these devices feature a 42" (1.07 m) crossbar that can be easily cut to size, fitting narrow, medium, and wide stile aluminum or hollow metal doors.
Choose from two standard architectural finishes to complement your design needs.
For enhanced functionality, the DL1190 Series Rim Panics are handed and non-reversible, designed for use with aluminum or hollow metal doors, and come with a standard surface-mounted roller type rim strike.
Available in both Concealed Vertical Rod and Rim Exit Device options, these devices feature a 42" (1.07 m) crossbar that can be easily cut to size, fitting narrow, medium, and wide stile aluminum or hollow metal doors.
Choose from two standard architectural finishes to complement your design needs.
For enhanced functionality, the DL1190 Series Rim Panics are handed and non-reversible, designed for use with aluminum or hollow metal doors, and come with a standard surface-mounted roller type rim strike.
