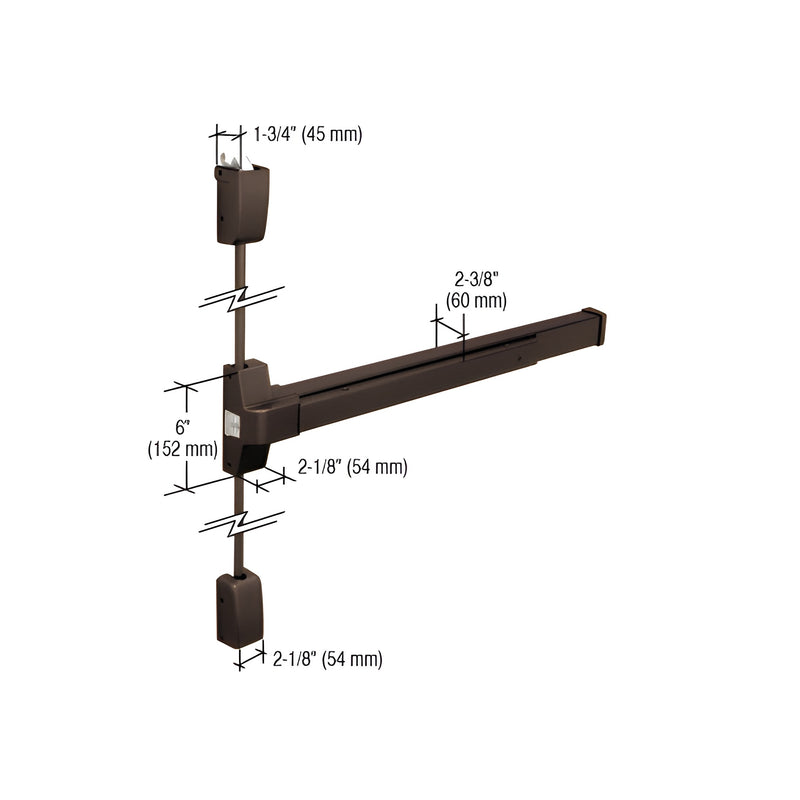

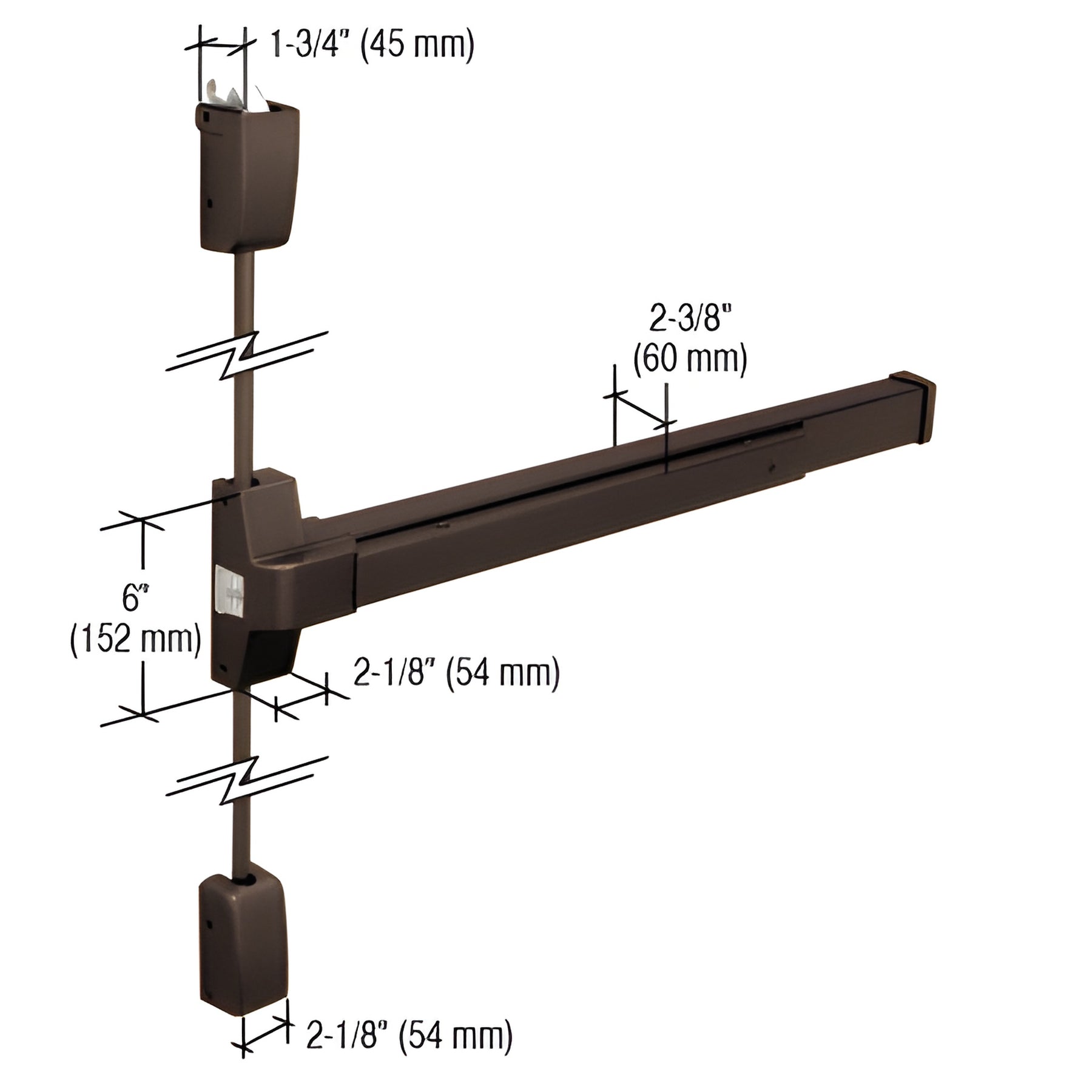

CRL Dark Bronze DL750SV Surface Vertical Rod Panic Exit Device

CRL Dark Bronze DL750SV Surface Vertical Rod Panic Exit Device
CRL Dark Bronze DL750SV Surface Vertical Rod Panic Exit Device

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUDL750SV37DU
Sold as1 Each
Door Thickness1-3/4
Door Width30 To 36
Finish/Color:Dark Bronze
HandingNon Handed
IncludesMounting Hardware
MaterialAluminum
Minimum Stile Width4-1/4
ModelDL750SV
Panic Bar Base Height2
Panic DoggingStandard Hex Key Dogging
Panic TypeSurface Vertical Rods
Recommended Door TypeAluminum, Wood, Hollow Metal
Similar31127548313
UL ListedYes

Description

Product Details

  • For 30" to 36" Wide Doors
  • Door Heights Up to 84" (2134 mm)
  • Non-Handed
  • UL Listed

Our CRL Push-Pad Surface Vertical Rod Panic Exit Device is intended for use with 1-3/4" thick wood or metal doors. Minimum required door stile width is 4-1/4" (108 mm). Panic base can be field sized to fit doors as narrow as 30" (762 mm). Panic is field reversible and features an easy-to-use 3/16" allen type dogging system. Active Lever Trim is available.

Specifications

Technical Resources

Installation Instructions

PDF
SF-SVRTBAR Series Installation InstructionsOpen PDF ↗
