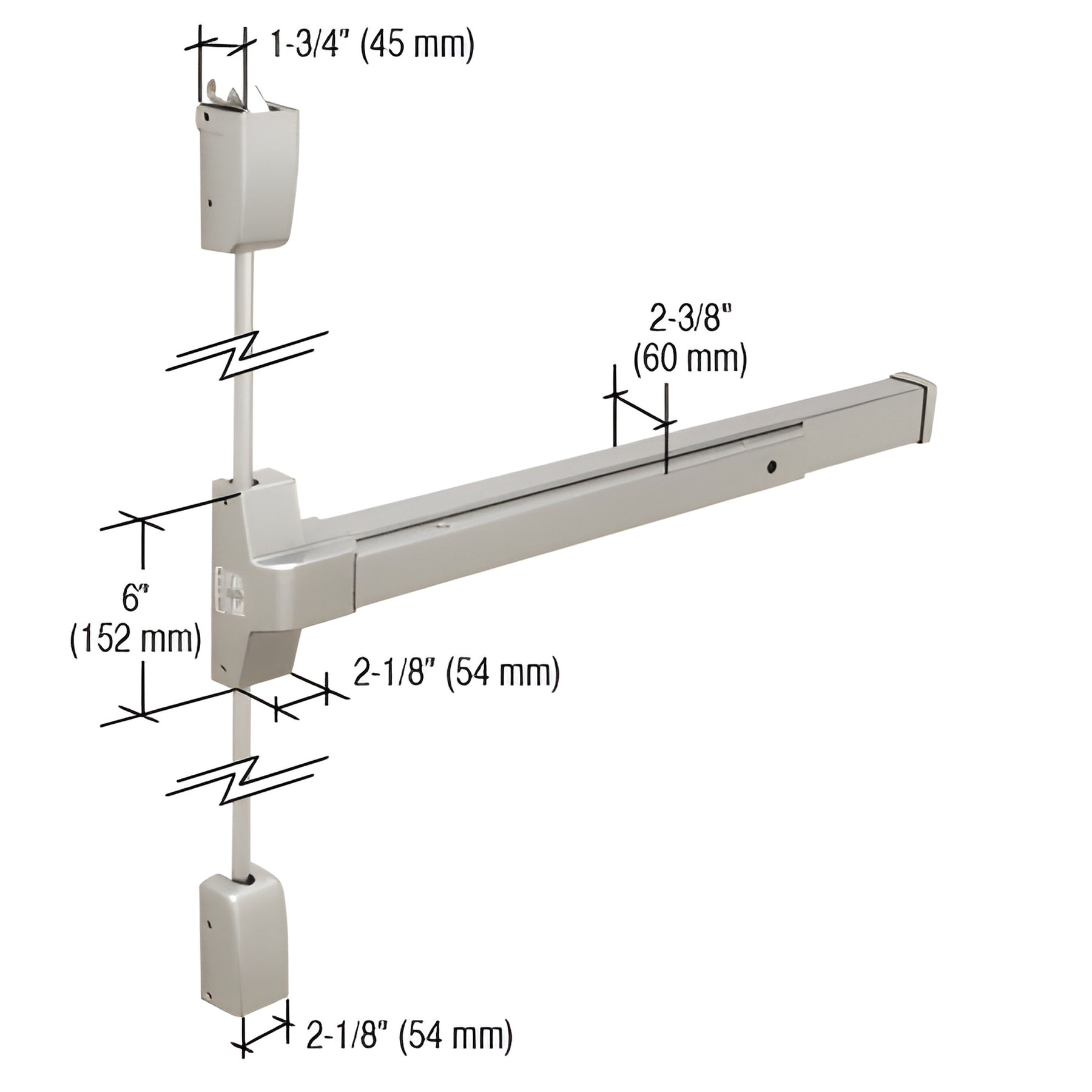

CRL Aluminum DL750SV Surface Vertical Rod Panic Exit Device

Finish (3)

Overview

SKU	DL750SV37A
Sold as	1 Each
Door Thickness	1-3/4
Door Width	30 To 36
Finish/Color:	Satin Aluminum
Handing	Non Handed
Includes	Mounting Hardware
Material	Aluminum
Minimum Stile Width	4-1/4
Model	DL750SV
Panic Bar Base Height	2
Panic Dogging	Standard Hex Key Dogging
Panic Type	Surface Vertical Rods
Recommended Door Type	Aluminum, Wood, Hollow Metal
Similar	31127548628
UL Listed	Yes

Description

Product Details

For 30" to 36" Wide Doors
Door Heights Up to 84" (2134 mm)
Non-Handed
UL Listed

Our CRL Push-Pad Surface Vertical Rod Panic Exit Device is intended for use with 1-3/4" thick wood or metal doors. Minimum required door stile width is 4-1/4" (108 mm). Panic base can be field sized to fit doors as narrow as 30" (762 mm). Panic is field reversible and features an easy-to-use 3/16" allen type dogging system. Active Lever Trim is available.
