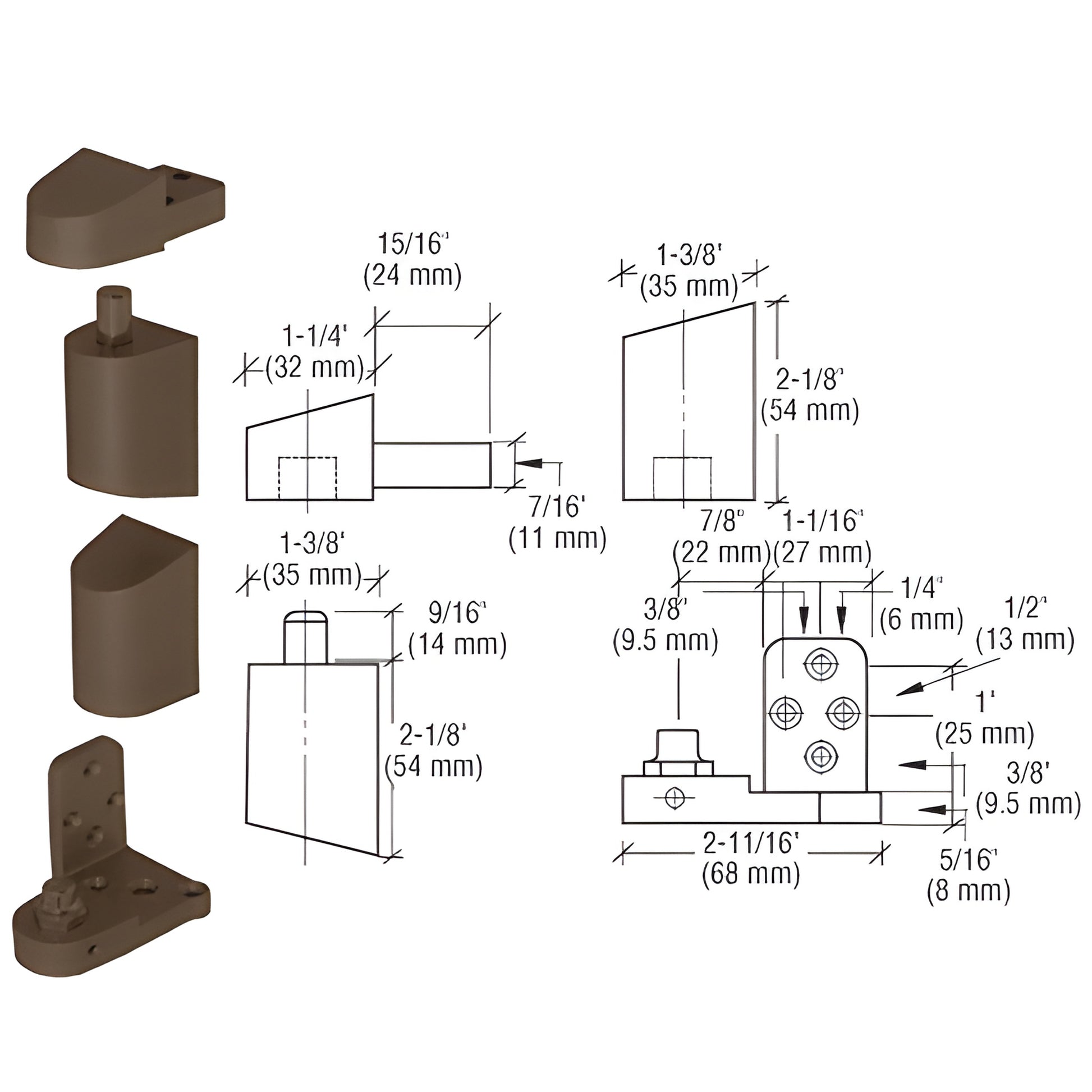

• CRL OP41 offset pivot set, dark bronze aluminum for storefront doors - adjustable 1/8", diagramed (SKU 0P41RHDU)
1 1

CRL

CRL Dark Bronze Right-Hand Offset Pivot Hinge Set 3/32-in Recess

CRL Dark Bronze Right-Hand Offset Pivot Hinge Set 3/32-in Recess

$36.91 CAD
$36.91 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 0P41RHDU
Shipping Weight: 7.68 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: Set
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Bottom Door Clearance Adjustment
1/8 in. (3.2 mm)
Door Weight
125 lbs. (56.7 kg)
Entry Trim
8500LV02628,8500LV01628,8500EL02628,8500EL01628
Field Sizeable
Yes
Finish/Color
Dark Bronze
Handing
Right Hand
Material
Aluminum
Pivot Series
OP41
Pivot Set
Yes
Pivot Style
3/32 in. Recess (2 mm Recess)
Pivot Type
Offset
Recommended Door Type
Aluminum Store Front

Overview

  • 1/8" (3.2 mm) vertical adjustment
  • Diecast aluminum construction
  • Suitable for aluminum frames and doors weighing up to 125 lbs. (57 kg)
  • Handed — not reversible (left or right pivot sets available)
  • Used on: Pittco®, PPG®

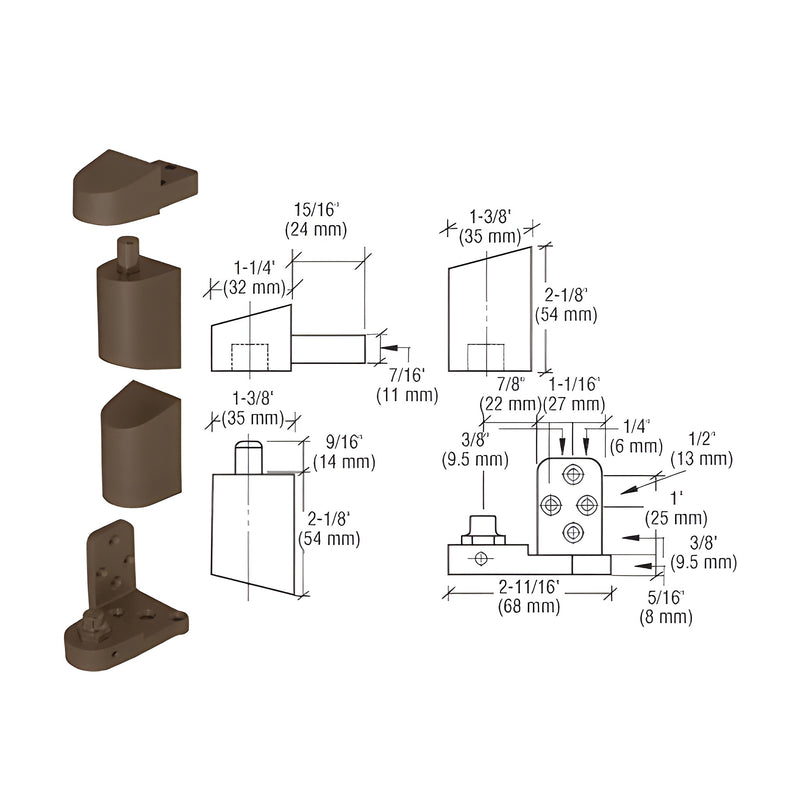

CRL Offset Pivot Sets are commercial-grade offset pivot sets engineered for aluminum-frame doors. These sets combine machined and diecast components and include door fasteners and anchors in one box for straightforward installation. Available in satin aluminum and dark bronze finishes. Each set is illustrated with dimensions to simplify selection. One set per package. SKU: 0P41RHDU.

Most shipping weights are approximate and have not been verified. If you need an exact shipping weight to determine costs, please request it prior to ordering by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary by monitor.


Shop this commercial offset pivot set for durable, adjustable door hardware—order now or contact CRL for help choosing the correct pivot.
