CRL Dark Bronze Shallow Division Bar w/Vinyl 1-3/4x1-7/8in 24ft
Item# DB27422
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Finish/Color
Dark Bronze Anodized
Height
1-7/8
Includes
Vinyl and Screws
Length
24
Material
Extruded Aluminum
Screw Size
1/4-20 x 1"
Width
1-3/4
- Available in four finishes
- Supplied with 100' (30.5 m) glazing vinyl and 20 × 1/4‑20 × 1" pan‑head Phillips machine screws
- Back bar punched 12" (305 mm) on center for fast, accurate installation

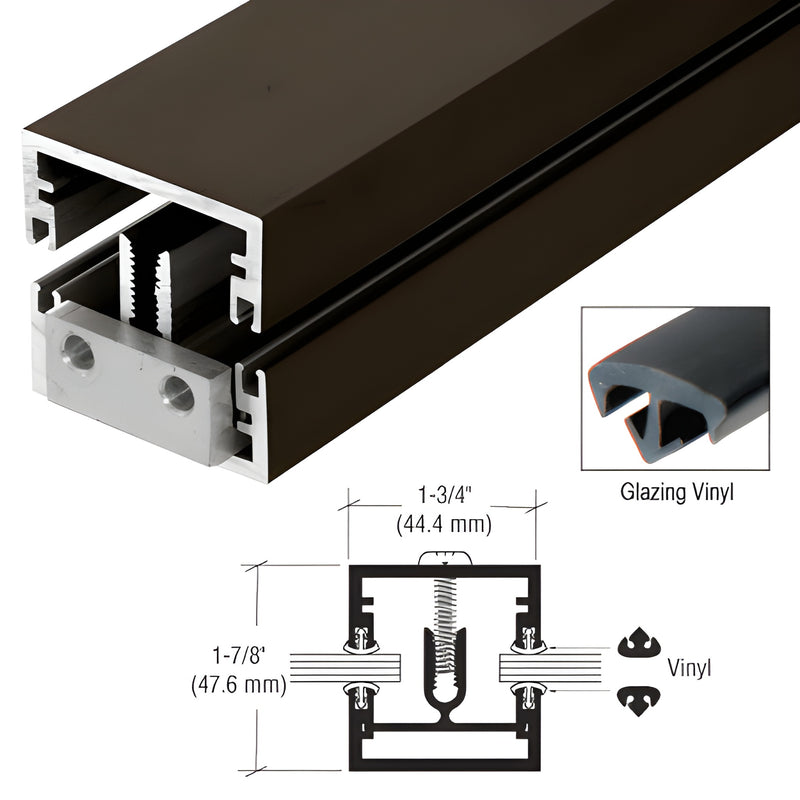

CRL Shallow Division Bar (SKU: DB27422) — lightweight extruded aluminum division bar for small fixed window units. Designed to be used vertically or horizontally, the shallow division bar features an extruded face member with a threaded spline for exposed fasteners and a drilled back member. Install glazing infill, then secure the back and face members with the supplied screws to form the window. Includes glazing vinyl and screws for a complete shallow aluminum division bar assembly.
Product Warning:
Must ship common carrier if over 98" (2.49 m) length.
