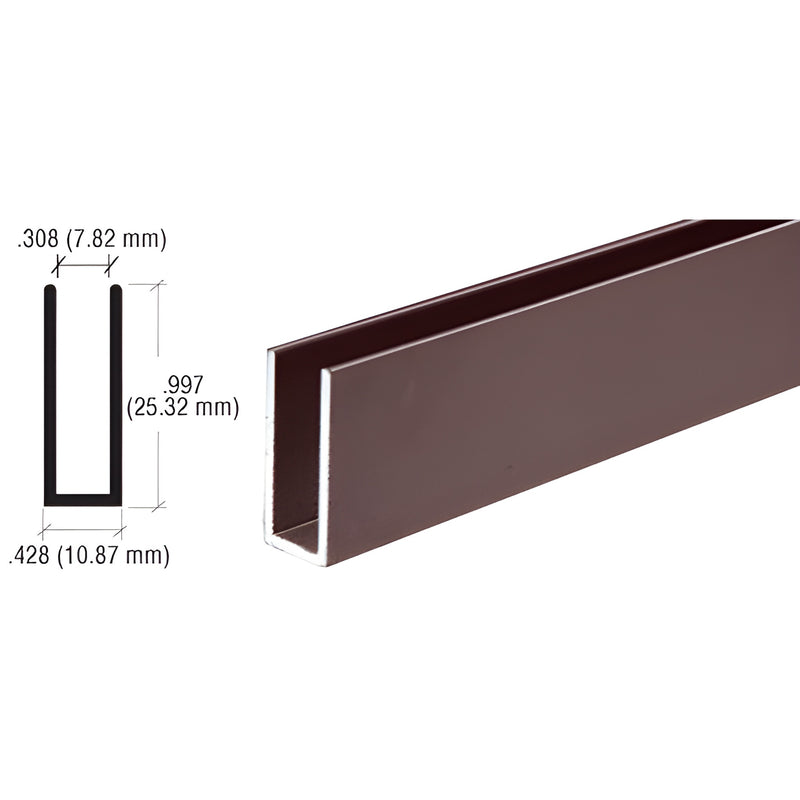

CRL Duranodic Bronze Single Channel for 1/4" Glass, 1" High Wall
Item# D623DU
Shipping Weight: 1.85 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.85 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Case Quantity
50
Finish/Color
Duranodic Bronze
Glazing Thickness
1/4
Height
0.997 in. (25 mm)
Length
144 in. (3658 mm)
Material
Aluminum
Open Width
0.308 in. (8 mm)
Thickness
0.06 in. (1.52 mm)
Width
0.428 in. (11 mm)
Wrist Circumference
1/4 in. (6 mm)
- Used to make hinged doors or fixed frames for 1/4" (6 mm) materials
- Easy to install
- Attractive finishes available
CRL Universal Framing Extrusions — SKU: D623DU are aluminum extrusions for framing smaller hinged glass doors, fixed frames, shadow boxes, cork board displays, and showcase enclosures. Ideal as an aluminum framing extrusion for 1/4" glass doors and small window frames. Glaze with CRL Vinyl; uses Cat. No. D662WS corner and screws (sold separately).
SPECIFICATIONS:
Material: 6063-T5 Aluminum Alloy
Thickness: .060" (1.52 mm)
Stock Length: 12' (3.66 m)
Typical Uses: Glass edge protection; fabricate hinged doors or small windows; showcase and shadow box framing.
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If exact weight or shipping quotes are required to complete your order, contact CRL Customer Service before submitting your order. Product images are the actual product or a close representation; colors may vary by monitor.
Need a custom cut or finish? Contact CRL Customer Service to order or get a quote.
