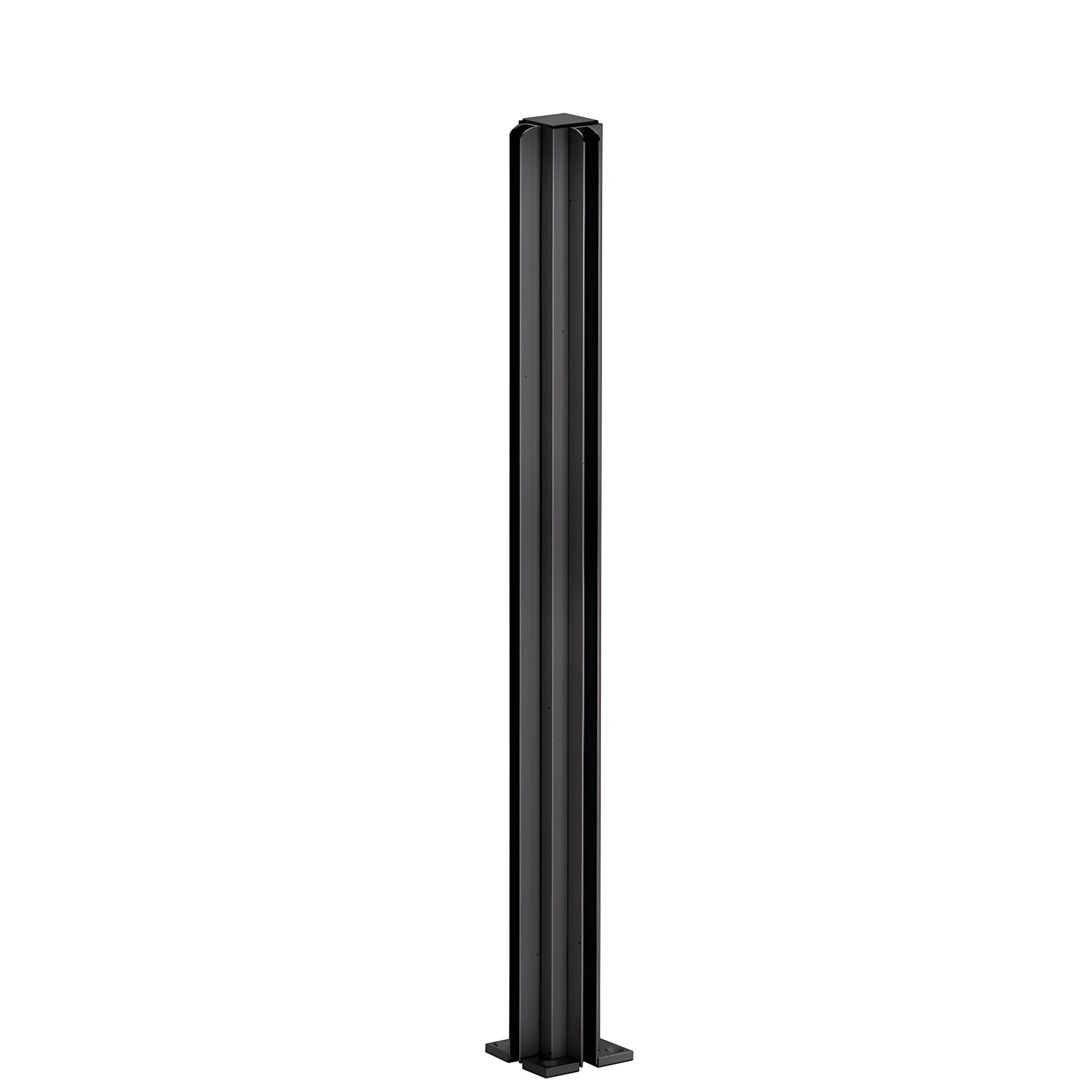

CRL Duranodic Bronze 24 in Corner Partition Post - Restroom Hardware
CRL Duranodic Bronze 24 in Corner Partition Post - Restroom Hardware
Regular price
$138.94 CAD
Regular price
Sale price
$138.94 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D990DU24CR
Shipping Weight: 1.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.45 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
90 Degree Corner Post
Finish/Color
Dark Bronze Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
24 in. (609.6 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square
Overview
- SKU: D990DU24CR — Stock partition post sizes, RED-E to ship
- Standard heights: 12", 18", 24" (305, 457, 610 mm); available in four finishes
- Five standard configurations: End, Center, Corner, 3-Way, 4-Way
- Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
- Includes attached top cap, mounting base, and four wood screws
- Designed for monolithic tempered glass; glazing vinyl supplied for 1/4" (6 mm) and 3/16" (5 mm) glass
CRL Design Series Partition Posts are a popular choice for glass partitions in banks, offices, restaurants, and commercial interiors. The slim profile, full-length glazing channels, and easy-to-install 2" (51 mm) square mounting base provide a clean, durable solution for interior glass partition systems. Use Cat. No. 33SC Clear Silicone to secure glass in the channels. Custom 135° posts are available in selected finishes and sizes.

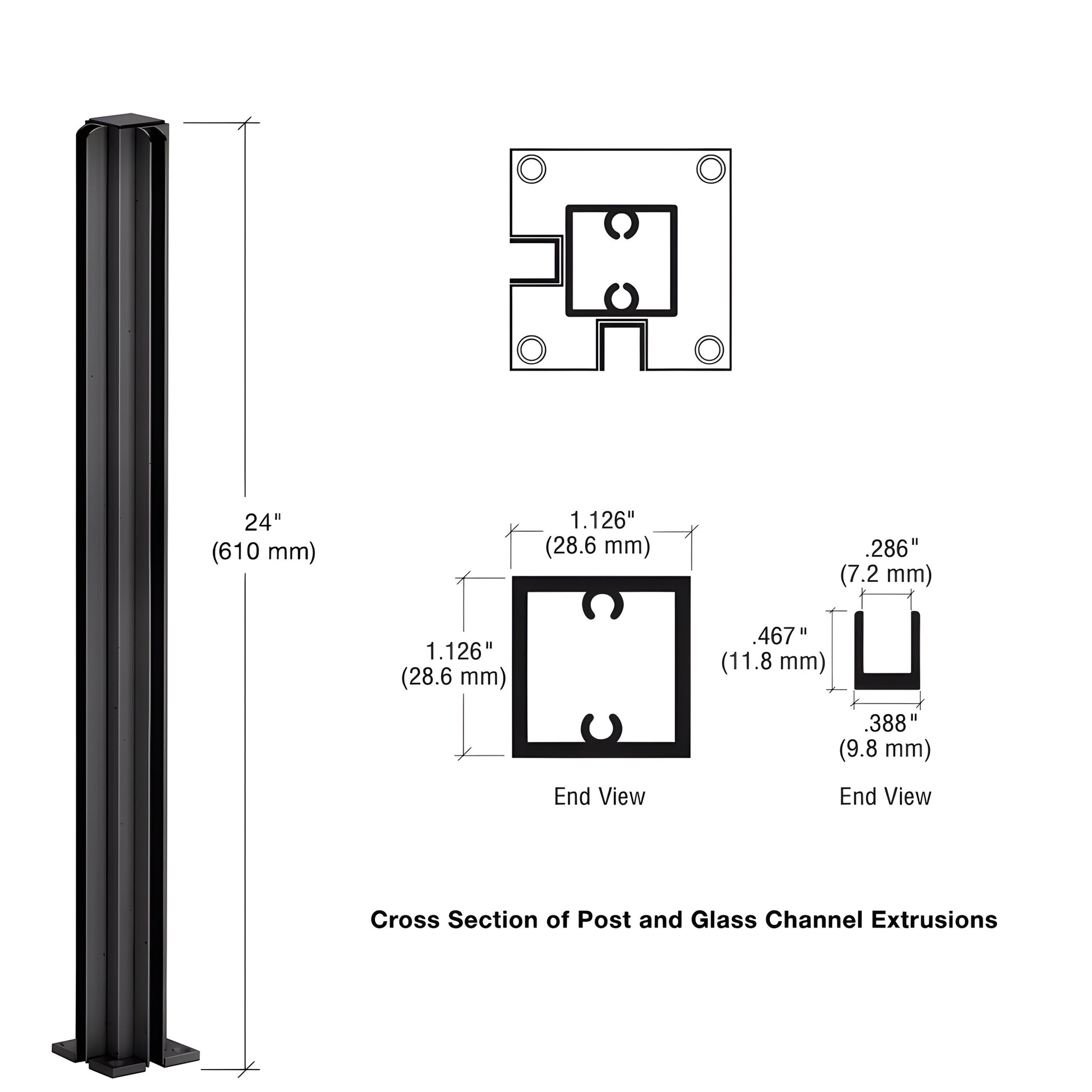

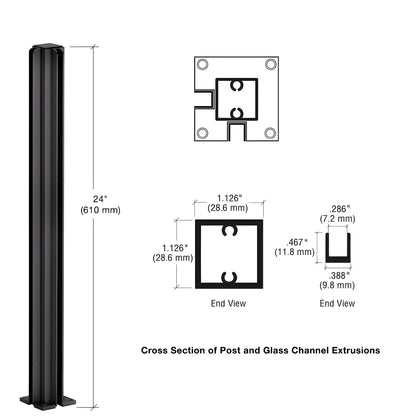

These fully assembled posts measure 1-1/8" (28.6 mm) square. Glazing channels rise 15/32" (12 mm) from the post surface and accept full-length glass panels. You can also "Make Your Own" Design Series Partition Posts with CRL components — instructions and requirements, parts page.
Product Note:
Glass is secured into the glazing channels using Cat. No. 33SC Clear Silicone. Follow installation instructions and local building codes when using tempered glass partition posts.
Order CRL Design Series Partition Posts (SKU D990DU24CR) for ready-to-ship glass partition hardware — contact us to buy now.
